multicomp pro 72-13430 User Manual

m ul ti co m p PR o
72-13430/13435/13440
Palm Size Multimeter
User Manual
I. Overview
The new generation 12-134ooseries products redefine the performance
standards for entry-level digital multimeter. The innovative industrial design
ensures the products have 2 meters impact resistance. The new LCD display
layout provides a clear display for better user experience. The 72-13400 series
ensure safe operation in CAT II 250 V environment.
The special features of each model are as follows:
72-13430: 2mF capacitance test function
72-13435 : Temperature test
72-13440 : NCV test
II. Open Box Inspection
Open the package box and take out the device. Please check whether the
following items are deficient or damaged and contact your supplier immediately
if they are.
User manual -----1 pcs
Test leads------1 pair
Protective case----- 1 pcs
K-type thermocouple ----1 pcs
A warning:
Please carefully read ·Safe Operation Rule before using the device.
u
Ill. Safe Operation Rule
1). Safety certification
This device strictly follows the CE standards: EN 61010-1: 2010,
EN 61010-2-030:2010, EN 61326:2013, as well as CAT II: 250V, RoHS,
pollution grade II, and double insulation standards.
2). Safety instructlons and preeautlons
1. Do not use the device if the device or test leads appear damaged or if
you suspect that the device is not operating properly. Pay particular
attention to the insulation layers.
2. If the test leads are damaged, it must be replaced with one of the same
type or the same electrical specification.
3. When measuring, do not touch exposed wires, connectors, unused inputs,
or the circuit being measured.
4. When measuring the voltage higher than 60 VDC or 30 VACrms, keep
your fingers behind the finger guard on the test lead in order to prevent
electric shock.
5. If the range of the voltage to be measured is unknown, the maximum range
should be selected and then gradually decreased.
6. Never input voltage and current exceeding the value listed on the device.
7. Before switching ranges, make sure to disconnect the test leads with the
circuit to be tested. It is strictly prohibited to switch the ranges during the
measurement.
8. Do not use or st0f8 the device in high temperature, high humidity, ftammable,
explosive or strong magnetic field environments.
9. Do not change the internal circuit of the device in order to avoid the damage
to the device and users.
10.To avoid false reading, replace the battery when the battery indicator
�appears.
11.Use dry doth to dean the case, do not use detergent containing solvents
IV. Electrical Symbols
High voltage warning
� Low battery
I _A I
Electrical ground
I :-:-: Direct current
½ j
Warning I ,..._, Alternating current
.&. j
Double insulation
IQ)
<E Comply with European Union Standards
It is applicable to test and measuring circuits connected directly to
utilization points (socket outlets and similar points) of the low-voltage
C'ATII
MAINS installation.
V. Specification
1. The maximum voltage between the Input terminal and the ground:
250Vnns
2. 10A terminal: Fuse 10A 250V Fast fuse <J>5x20mm
3. mAlµA terminal: Fuse 200mA 250V Fast fuse <J>5x20mm
4. Max display 1999, over range display •oL•, update rate: 2-3 times/second
5. Range select: Auto range 72-13430 ; Manual range 72-13430/435/440
6. Backlight: manual on, auto shut off after 30 seconds
7. Polarity:•-• symbol displaying on screen represents negative polarity
signal.
8. Data hold function:msymbol displays on screen when data hold function
is activated
9. Low battery power: c, syrrt,ol displays on screen when battery power is low
10. Battery:AAA 1.5V • 2
11. Operating temperature: 0-40"C (32"F-104"F)
Storage temperature: -10-5o•c (14"F-122"F)
Relative humidity: o·c-3o·c: ,s;;:75% RH, 3o·c-4o·c: ,s;;:50% RH
Operating altitude: O - 2000m
12. Dimension: (134x77x47) mm
13. Weight: about 206g (battery included)
14. Electromagnetic compatibility:
In fields with less than 1V/m radio frequency, the total accuracy
= designated accuracy + 5% of measurement range
In fields with more than 1V/m radio frequency, the accuracy is not
specified.

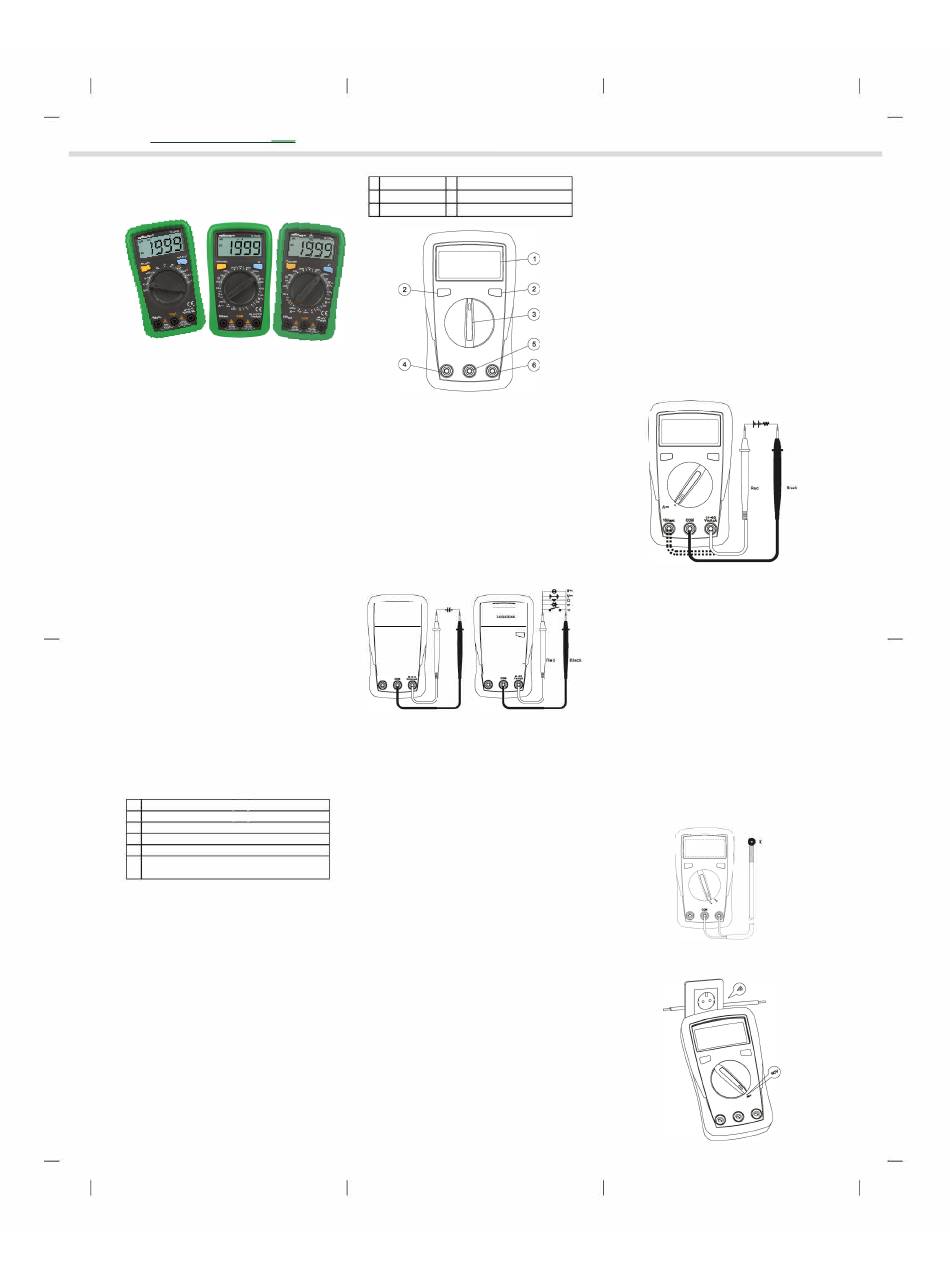

VI. Structure (see Figure 1)
Display screen 10A input jack
1 4
Function keys COM jack
2
5
Remaining inputs jack
Functional dial
3 6
Figure 1
VII. Key Functions
1) 72-13430:
• SEL/REL: press this key to switch between AC and DC modes for
mV�, 1;;, and REL positions.
HOLD/�: Press to enter or exit data hold mode. Long press over 2 seconds
to turn on/off backlight.
2) 72-13430/435/440:
• HOLO/SEL: Press to enter or exit data hold mode
In continuity/diode mode, press to cyde switch between the two modes
• �: Press to tum on/off backllght.
VIII. Operations
To avoid false reading, replace the battery if the battery low power symbol
GI appears. Also pay special attention to the warning sign &, beside the test
lead jack, indicating that the tested voltage or current must not exceed the
values listed on the device.
1.AC/DC voltage measurement (see Figure 2b)
1) Switch the dial to position.
·v-·
2) Insert the black test lead into the COM jack, the red test lead into the
"VOmN jack. Connect test leads with the load in parallel.
[G]
[ ]
Capacitanca
..
D O D
:•
Black � . v
Rod
,�- �
(lj
Figure 2a
Figure 2b
&.Notes:
• Do not measure voltage over 250Vrms, or it may expose users to electric
shock and damage the device. If the range of the voltage to be measured is
unknown, select the maximum range and reduce accordingly.
• Please pay extra attention when measuring high voltage in order to avoid
electric shock.
• Before using the device, it is suggested to measure a known voltage for
verification.
2.Reslstance measurement (see Figure 2b)
1) Switch the dial to ·n· position.
2) Insert the black test lead into the COM jack, the red test lead into the 'VOmA"
jack. Connect test leads with the resistor in parallel
&.Notes:
• Before measuring resistance, switch off the power supply of the circuit, and
fully discharge all capacitors.
• If the resistance when probes are shorted is more than 0.50, please check
if test leads are loosened or damaged.
• If the resistor is open or over the range, the "OL• symbol will be displayed on
the screen.
• When measuring low resistance, the test leads will produce 0.10-0.20
measurement error. To obtain accurate measurement, the measured value
should subtract the value displayed when two test leads are shorted.
• When measuring high resistance above 1 MO, it is normal to take a few
seconds to steady the readings. In order to quickly obtain steady data, use
short test wires to measure high resistance.
3. Continuity measurement (see Figure 2b)
1) Switch the dial to • .,,1 • position.
2) Insert the black test lead into the COM jack, the red test lead into the "VOmA"
jack. Connect test leads with the points to be tested in parallel
3) If measured points' resistance >510, circuit is in open status.
If measured points' resistance S100, circuit is in good conduction status,
buzzer will go off
.&.Notes:
Before measuring continuity, switch off all power supplies and f u lly discharge
all capacitors.
4. Diode measurement (see Figure 2b)
1) Switch the dial to· -M-" position.
2) Insert the black test lead into the COM jack, the red test lead into the "VOmA·
jack. Connect test leads with the diode in parallel
3) "OL" symbol appears when the diode is open or polarity is reversed.
For silicon PN junction, normal value: 500 - 800mV (0.5 - 0.8V).
4Notes:
• Before measuring PN junction, switch off the power supply to the circuit,
and fully discharge all capacitors
5. Capacitance measurement (only for 72-13430, see Figure 2a)
1) Switch the dial to capacitance test.
2) Insert the black test lead into the COM jack, the red test lead into the
"VOmA• jack. Connect test leads with the capacitor in parallel
3) When there is no input, the device displays a fixed value (intrilsic capacitance).
• For small capacitance measurement, to ensure measurement
accuracy, the measured value must be subtracted from intrinsic capacitance.
• Users can measure small capacity capacitors with relative measurement
functions (REL) (the device will automatically subtract the intrinsic
capacitance)
&Notes:
• If the tested capacitor is shorted or its capacity is over the specified range
"OL • symbol will be displayed on the screen.
• When measuring large capacitors, it may take a few seconds to obtain
steady readings.
• Before measuring capacitors (especially for high voltage capacitors), please
fully discharge them.
6. DC measurement (see Figure 3)
1) Switch the dial to DC test.
2) Insert the black test lead into the COM jack, the red test lead into the
"VOmN jack. Connect test leads with the tested circuit in series.
Figure 3
.&.Notes:
• Before measuring, switch off the power supply of the circuit and carefully
check the input tenninal and range position.
• If the range of the measured current is unknown, select the maximum
range and then reduce accordingly.
• Please replace the f use with the same type.
10Ajack: Fuse 10A/250V <J>5x20mm
VOmA jack: Fuse 0.2A/250V Cl>5x20mm
• When measuring, please do not connect the test leads with any circuit in
parallel. Otherwise there is a risk of damage to the device and human body.
• If the tested current is over 10A, each measurement time should be less
than 10 seconds and the next test should be after 15 minutes.
7. AC measurement (only for 72-13430, see Figure 3)
Similar to DC Measurement.
Please refer to Section 6 "DC measurement (see Figure 3t
8. Temperature measurement (only for 72-13435, see Figure 5)
1) Switch the dial to temperature test.
2) Insert K•thermocouple into the device and fix the temperature probe to
the measured object. Read the value when it is stable.
.&.Notes:
• Only K-thermocouple Is applicable. The measured temperature should
be less than 250*C/482"F ("F="C*1.8+32)
Figure 5
10. NCV measurement (only for72-13440, see Figure 6)
Figure 6
