The ADA-MIPI20-ARM20 adapter
The ADA-MIPI20-ARM20 adapter is included with I-jet. It converts the MIPI-20 I-jet
cable to the legacy ARM-20—0.1 in × 0.1 in (2.56 mm x 2.56 mm) pitch—JTAG

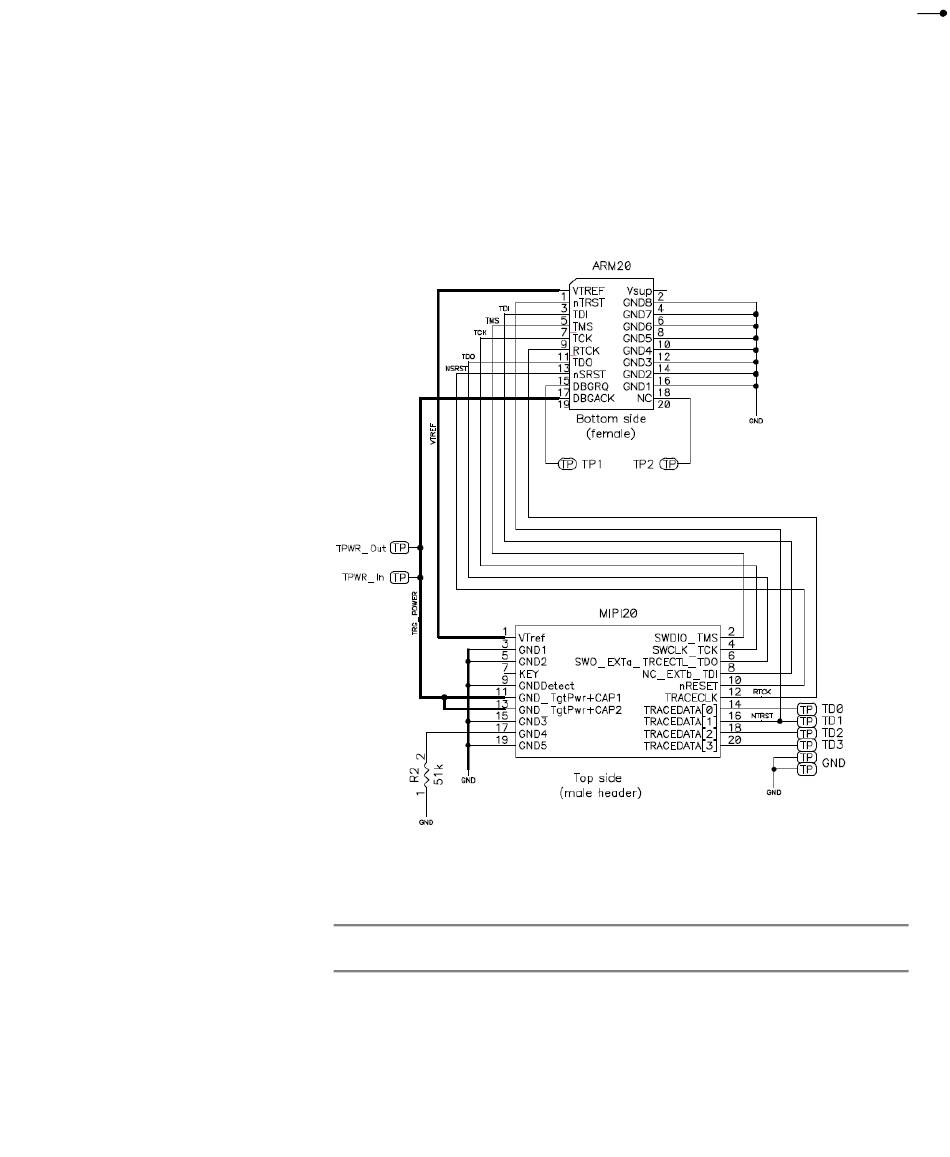

headers. This is a diagram of the adapter:
These are the pin definitions of the ADA-MIPI20-ARM20 adapter:
I-jet
Pin
Name
direction
nTRST
Output
Test Logic Reset
Table 9: ADA-MIPI20-ARM20 adapter pin definitions
Description
Test reset. Active LOW signal that resets the TAP
controller's state machine.
