Liberty 70.86 TV Stand / Meuble TV
Model # 202AMC6, 202AMC63, 202AMC64, 202AMC67, 202AMC69,
202AMC8, 202AMC9, 202AMC93, 202AMC94, 202AMC96, 202AMC97
44
lb
11
lb
11
lb
22
lb
22
11
lb
lb
The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
736 - Ed. 005, 2020/09 - Manhattan Comfort.
Advertisement
Table of Contents
Related Manuals for Manhattan Comfort Liberty 202AMC6
Summary of Contents for Manhattan Comfort Liberty 202AMC6

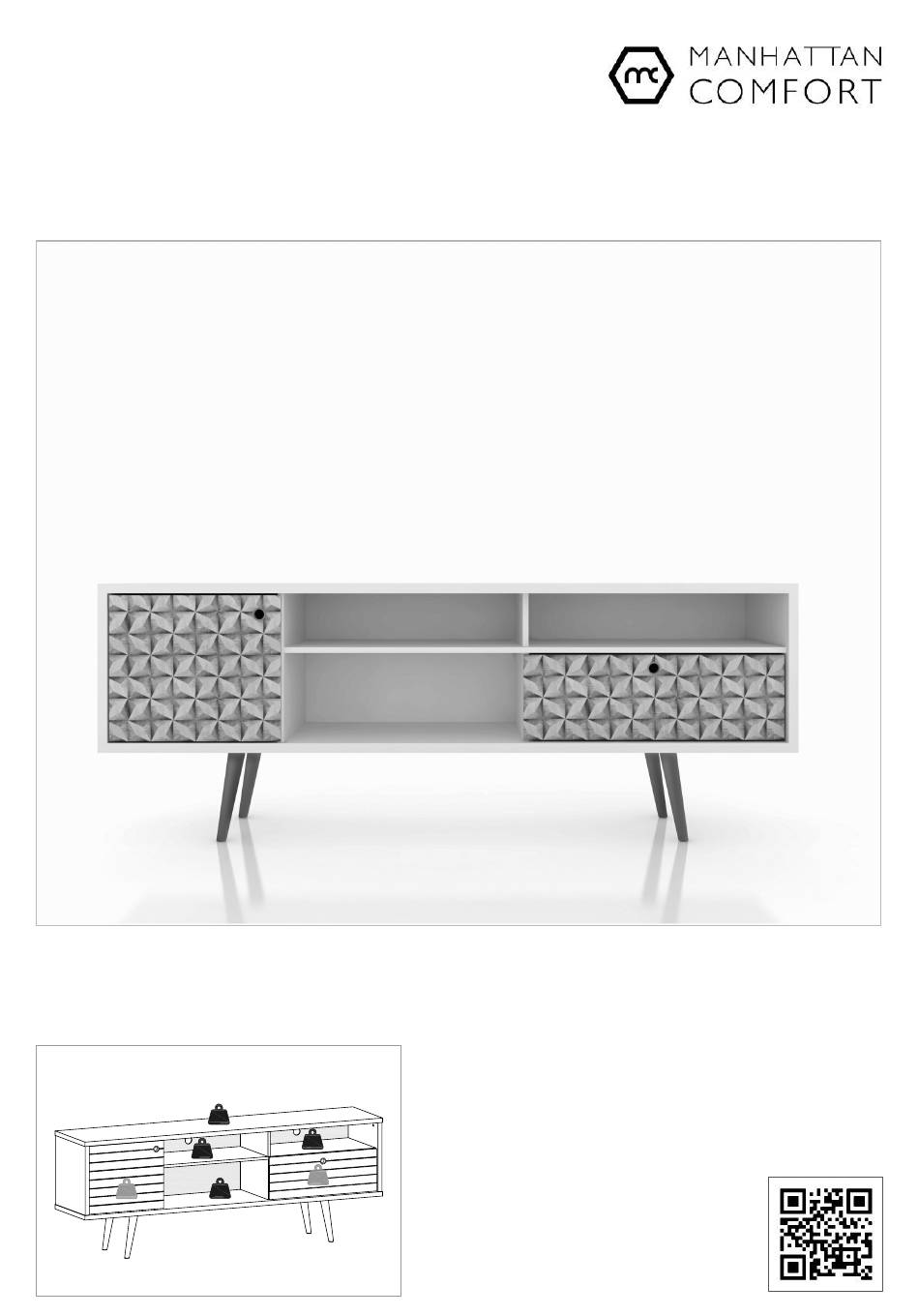

- Page 1 202AMC8, 202AMC9, 202AMC93, 202AMC94, 202AMC96, 202AMC97 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. 736 - Ed. 005, 2020/09 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE DRAWER / TIROIR REAR VIEW / VUE ARRIÈRE FRONT VIEW / VUE DE FACE FINAL APPEARANCE / APPARENCE FINALE n.° ID Quantity / Quantité Parts Identification (Description) / Identification des pièces (description) Base / Base Top Panel / Panneau du haut Left Side Panel / Panneau latéral gauche...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES INCLUDED IN THE HARDWARE / INCLUS DANS LE MATÉRIEL...
- Page 4 STEP 1 / ÉTAPE 1 • Fix the feet (18) under the Base (01) with bolts (A). Fixez les pieds (18) sous la Base (01) avec la vis (A). • Apply the protective felt covers (L) in the bottom of the feet (18).
- Page 5 STEP 4 / ÉTAPE 4 • Connect Back Panels (09), (10) and (11) with nails (I), metallic plates (H) and plastic profile (19). Connectez les Panneaux arrière (09), (10) et (11) avec des clous (I), des plaques métalliques (H) et un profilé plastique (19). STEP 5 / ÉTAPE 5 DETAIL 2 Preparing the Door:...
- Page 6 STEP 7 / ÉTAPE 7 Installing the Door: • Fix the hinge connectors (J) of the Door (12) on the Left Side Panel (03) with bolts (K), taking the markings on the panel (03) as reference for the correct positioning. The hinge connector includes two bolts, as shown in the DETAIL 4.
