Cooktop Controls

WARNING
Fire Hazard
Do not let the burner flame extend beyond the edge of
the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in death
or fire.
Electric igniters automatically light the surface burners when
control knobs are turned to IGNITE.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or while the grate
is unoccupied.
To Set:
1. Push in and turn knob counterclockwise to IGNITE.
All 4 surface burners will click. Only the burner with the
control knob turned to IGNITE will produce a flame.
2. Turn knob to anywhere between HIGH and LOW. Use the
following chart as a guide when setting heat levels.
SETTING
RECOMMENDED USE
IGNITE
HIGH
Between
HIGH and LOW
LOW
REMEMBER: When range is in use or (on some models)
during the Self-Cleaning cycle, the entire cooktop area may
become hot.
Power failure
In case of prolonged power failure, the surface burners can be lit
manually. Hold a lit match near a burner and turn knob
counterclockwise to IGNITE. After burner lights, turn knob to
setting.
6

COOKTOP USE

Light the burner.
Start food cooking.
Bring liquid to a boil.
Hold a rapid boil.
Quickly brown or sear food.
Fry or sauté foods.
Cook soups, sauces and gravies.
Stew or steam foods.
Keep food warm.
Simmer.

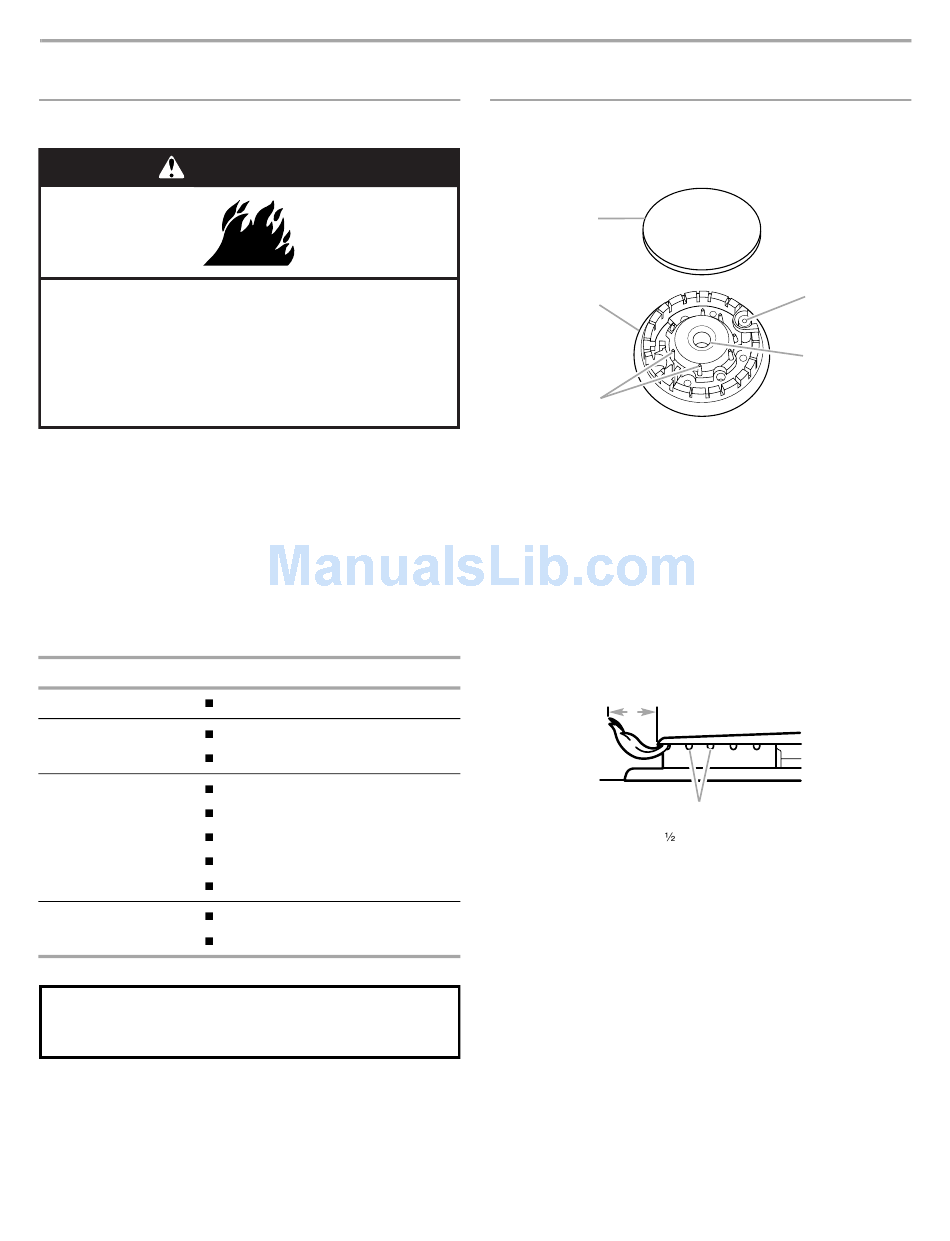

Sealed Surface Burners

IMPORTANT: Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
A
B
C
A. Burner cap
B. Burner base
C. Alignment pins
D. Igniter
E. Gas tube opening
Burner cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help avoid poor ignition
and uneven flames. Always clean the burner cap after a spillover
and routinely remove and clean the caps according to the
"General Cleaning" section.
Gas tube opening: Gas must flow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of soil
and do not allow spills, food, cleaning agents or any other
material to enter the gas tube opening. Protect it from spillovers
by always using a burner cap.
A
A. 1-1 " (25-38 mm)
B. Burner ports
Burner ports: Check burner flames occasionally for proper size
and shape as shown above. A good flame is blue in color, not
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
D
E
B
