York
Solid Pine Desk
Assembly Instructions
Dimensions
Width - 120cm
Depth - 50cm
Height - 74,3cm
Important
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call t h e C u stomer Helpline: 08456 400 800.
- Please keep for future reference
161/6297
146/1174
Advertisement
Related Manuals for Argos York 161/6297
Summary of Contents for Argos York 161/6297

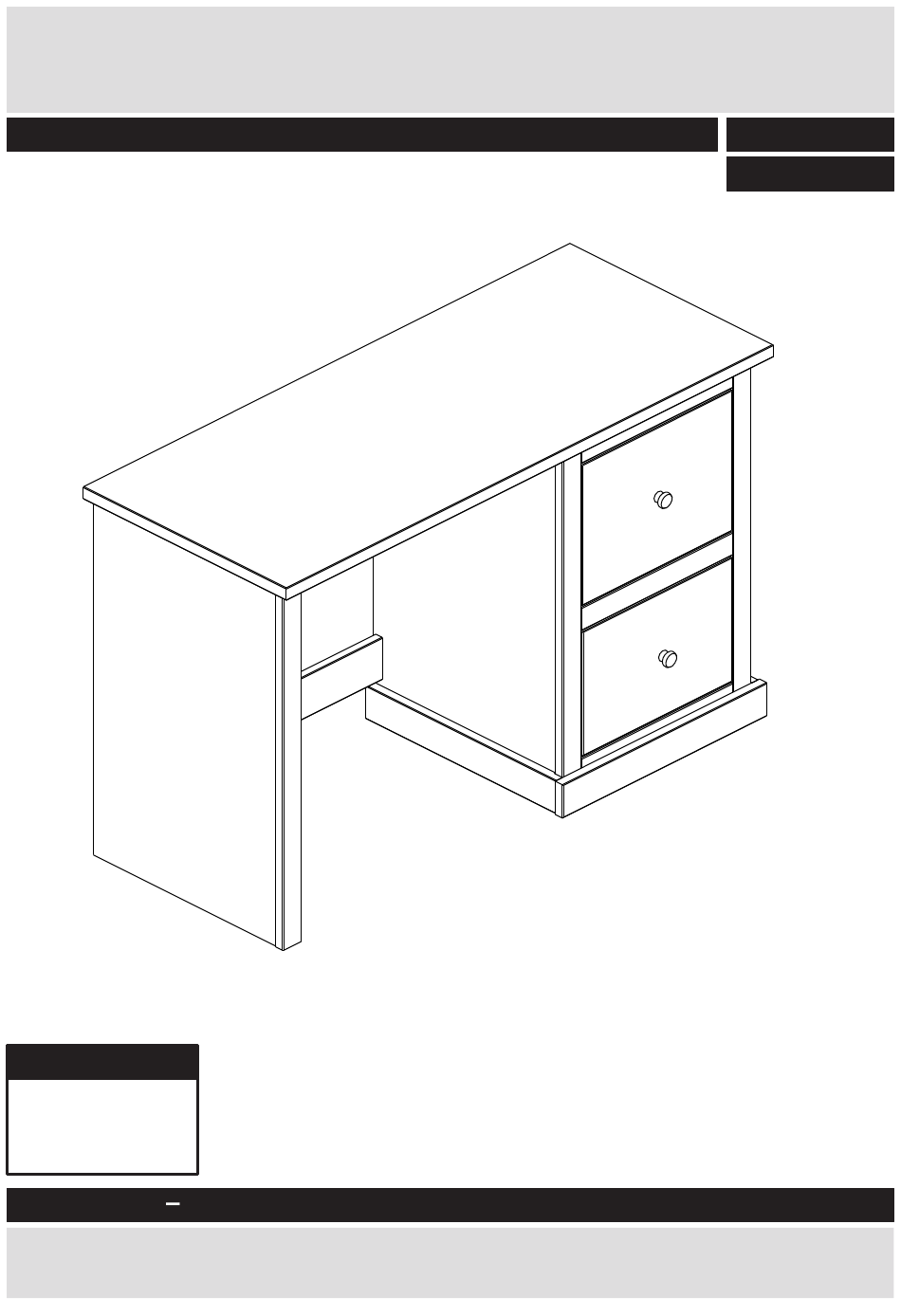

- Page 1 York Solid Pine Desk Assembly Instructions 161/6297 - Please keep for future reference 146/1174 Dimensions Width - 120cm Depth - 50cm Height - 74,3cm Important Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call t h e C u stomer Helpline: 08456 400 800.
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly This product has been produced We do not Check you have all the components and tools listed on from natural timber; you may recommend the notice some variation in the grain use of power pages 2 and 3.
- Page 3 Components - Panels Please check you have all the panels listed below 2 Right side panel Top panel (120 x 50cm) (72,5 x 45,8cm) Right front frame (72,5 x 4,6cm) Left front frame (72,5 x 4,6cm) 3 Division (72,5 x 45,8cm) Left side panel (72,5 x 46,9cm) Top front frame...
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400 800. Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Insert dowels into the indicated parts. (4x) (2x) (2x) (2x) Step 2 Fixing panels. Attach drawer side runner to division using screws Attach drawer side runner to right side panel using screws...
- Page 6 Assembly Instructions Step 3 Fixing right front frame to the right side panel (Two people required for an easier assembly) Insert right side panel into right front frame through joints. Yes! Note: Before fixing the blocks into ( + ) place it is important to ensure that the slot and groove of parts...
- Page 7 Assembly Instructions Step 5 Attention: Attention: Attach back rail , top front frame and bottom front frame to right side panel using screws Fit middle front frame to right side panel Make sure panels are correctly positioned as shown in the diagram. Step 6 Fixing the division Two people are required...
- Page 8 Assembly Instructions Step 7 Fixing top panel Two people are required for an easier assembly. Caution: Carefully lay the top panel on a soft and clean surface to avoid damaging the product. Attach assembled frame to the top panel using screws Note correct position of parts as shown.
- Page 9 Assembly Instructions Step 9 Two people are required for an easier assembly. Fit back panel division and left side panel to top panel as shown. Then, fix the parts using screws Step 10 Fixing back panel. Important: Desk MUST square when back panel is attached.
- Page 10 Assembly Instructions Step 11 Important: With help, carefully lay down the product. Fix side plinths the side panels using screws Note: Make sure side plinths are aligned to the bottom and front edges of the side panels. Fix front plinth to the bottom front frame using screws Note:...
- Page 11 Assembly Instructions Step 13 Insert drawers into unit. With the back of the drawers past the front frames, use a hammer to tap dowels in flush to drawer sides. This is a safety catch to stop drawer falling out. Assembly is complete. If you need help or have damaged or missing parts, c a l l t h e Customer Helpline: 08456 400 800...
