The Direction Key And Four Play - midiplus SmartPAD Owner's Manual

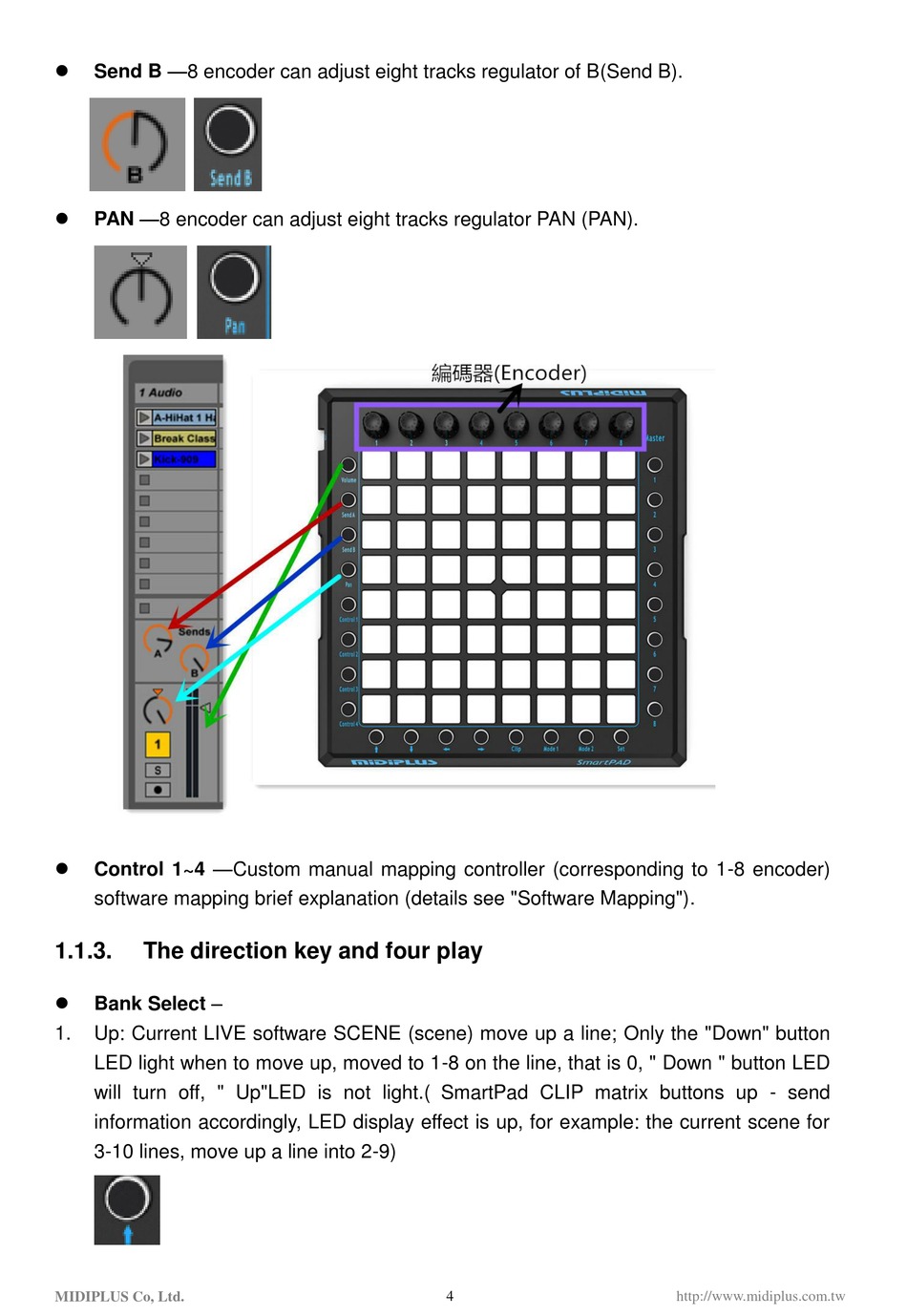

 Send B —8 encoder can adjust eight tracks regulator of B(Send B).
 PAN —8 encoder can adjust eight tracks regulator PAN (PAN).
Control 1~4 —Custom manual mapping controller (corresponding to 1-8 encoder)

software mapping brief explanation (details see "Software Mapping").
1.1.3.

The direction key and four play

 Bank Select –
1. Up: Current LIVE software SCENE (scene) move up a line; Only the "Down" button
LED light when to move up, moved to 1-8 on the line, that is 0, " Down " button LED
will turn off, " Up"LED is not light.( SmartPad CLIP matrix buttons up - send
information accordingly, LED display effect is up, for example: the current scene for
3-10 lines, move up a line into 2-9)
MIDIPLUS Co, Ltd. 4 http://www.midiplus.com.tw
