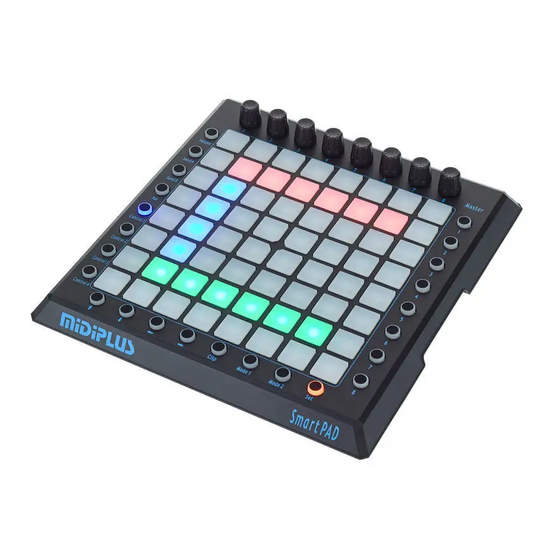

midiplus SmartPAD Owner's Manual
  1. Manuals
  2. Brands
  3. midiplus Manuals
  4. Drums
  5. SmartPAD
  6. Owner's manual

midiplus SmartPAD Owner's Manual

Hide thumbs Also See for SmartPAD:
Table of Contents

Advertisement

Quick Links

MIDIPLUS Co, Ltd.
http://www.midiplus.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartPAD and is the answer not in the manual?

Questions and answers

Related Manuals for midiplus SmartPAD

Summary of Contents for midiplus SmartPAD

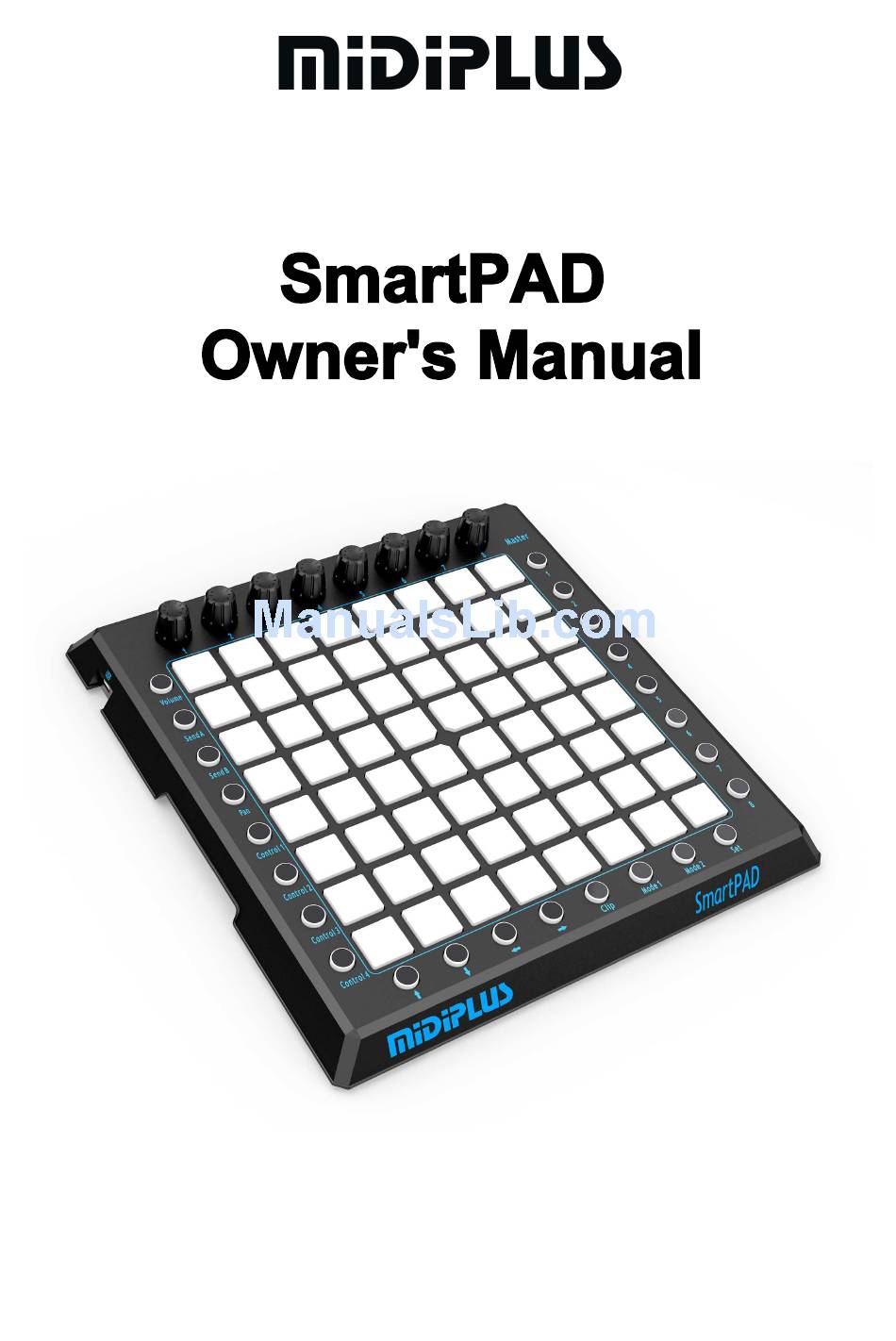

  • Page 1 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 2 CONTENTS Preface........................3 What’s in the Box?.................... 3 SmartPAD introduction..................3 Connection Diagram..................4 Software Setup....................4 Chapter 1：Quick Start..................6 1.1 SmartPAD Overview................6 1.1.1 SmartPAD panel Overview............ 6 1.1.2 Controllers description............6 1.2 Minimum System Requirement............21 MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 3 The following items should be in your package. SmartPAD MIDI Controller. Owner’s Manual. standard USB Cable. SmartPAD introduction SmartPAD is designed for performance with Ableton Live ． In this manual ， you will find instructions on how to connect the MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...

  • Page 4: Connection Diagram

    SmartPAD and use its basic features with Ableton Live — Professional SmartPAD Edition ． SmartPAD can also be used in"generic mode"as a controller with other virtual DJ applications that use MIDI protocol. Connection Diagram Connect SmartPAD to your computer with a standard USB cable(included).
  • Page 5 Under “MIDI ports”, turn all available “Track” and “Remote” settings “On”. Close Preferences window. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 6 Chapter 1： ： ： ： Quick Start 1.1 SmartPAD Overview 1.1.1 SmartPAD panel Overview 1.1.2 Controllers description Encoder — Change the values (CC) of each mode(Behind the list). 2 Eight kinds of function 1. Volume —8 encoder can adjust eight tracks volume regulator .
  • Page 7 2. Send A —8 encoder can adjust eight tracks regulator of A(Send A). 3. Send B —8 encoder can adjust eight tracks regulator of B(Send B). 4. PAN —8 encoder can adjust eight tracks regulator PAN (PAN). MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 8 Most down eight line, even if the current one down the line, the "Down" button LED will be lit.Only recovered to 1-8 line is 0, LED will turn off. ( SmartPad CLIP matrix buttons down - send information accordingly, LED display effect is...
  • Page 9 Most right eight column, even if the current one right the column, the " Right " button LED will be lit.Only recovered to 1-8 column is 0, LED will turn off. ( SmartPad CLIP matrix buttons right - send information accordingly, LED display...
  • Page 10 "Mode1" or "CONTROL1" ~ "CONTROL4".These mode is not need to moves to the right or down. The default 1-8 lines, 1-8 column, "Down"and"Right" LED are not light: After move down a line, "Down" LED light: MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 11 After move right one column, "Right" LED light: 5. Clip –In Track View mode incised with Clip View mode (Clip View model can control the scene, and the BUTTON under the MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 12 Track, press the BUTTON of "SmartPad" corresponding matrix can enable software BUTTON, if the BUTTON of the software have music, can make it light up the red LED, otherwise light blue LED, you can use the "Up", "Down", "Left", "Right" BUTTON).
  • Page 13 Some BUTTON enable or not , SmartPad state: Enable make red, not to make blue 6. Mode 1-- Corresponding software on the Drum Rack effect (The clip matrix buttons becomes PADs to use, press the LED will light blue). MIDIPLUS Co, Ltd.
  • Page 14 Software DRUM model 7. Mode 2 –Open the sequencer, corresponds to the SmartPad matrix button 3 lines buttons on the bottom ,and it can use the "Left", "Right" move around. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 15 LED light under the corresponding audio track, the controller value greater that LED light more, of course this is in the SET (SET) mode;You can use the "Left", "Right" move around. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 16 “Volume” ： SET(SET) mode with“Volume”mode. “Send A” ： SET(SET) mode with“Send A”mode. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 17 “Send B” ： SET(SET) mode with“Send B”mode. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 18 “PAN” ： SET(SET) mode with“PAN”mode. CONTROL1”-“CONTROL4” ： SET(set) mode with“CONTROL1” -“CONTROL4” mode,SmartPad matrix button can't control the value of the encoder, but LED lights a specified pattern. MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 19 OFF: empty BLUE: clip present, not playing RED: clip present, playing 6 Mapping software SmartPad connection on the computer, after open LIVE9 software, the mouse to click "MIDI" button MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 20 Purple shaded area in the picture can be mapped, the mouse to click a particular area you want to map,then SmartPad send information can be used. SmartPad encoder and 8 * 8 matrix button can send MIDIPLUS Co, Ltd. http://www.midiplus.com.tw...
  • Page 21 "MIDI" can exit the mapping model. For example, in “CONTROL1”,SmartPad encoders can be mapped to a specific function on software. "CONTROL1","CONTROL2","CONTROL3"and"CONTROL4" a total of 32 unmapped encoder for user-defined mapped to software.
  • Page 22 (" MIDI "). 1.2 Minimum System Requirement If you are using your SmartPAD with a computer, the following minimum system requirements need: Windows Mac OS Pentium 3 800 MHz or higher...
