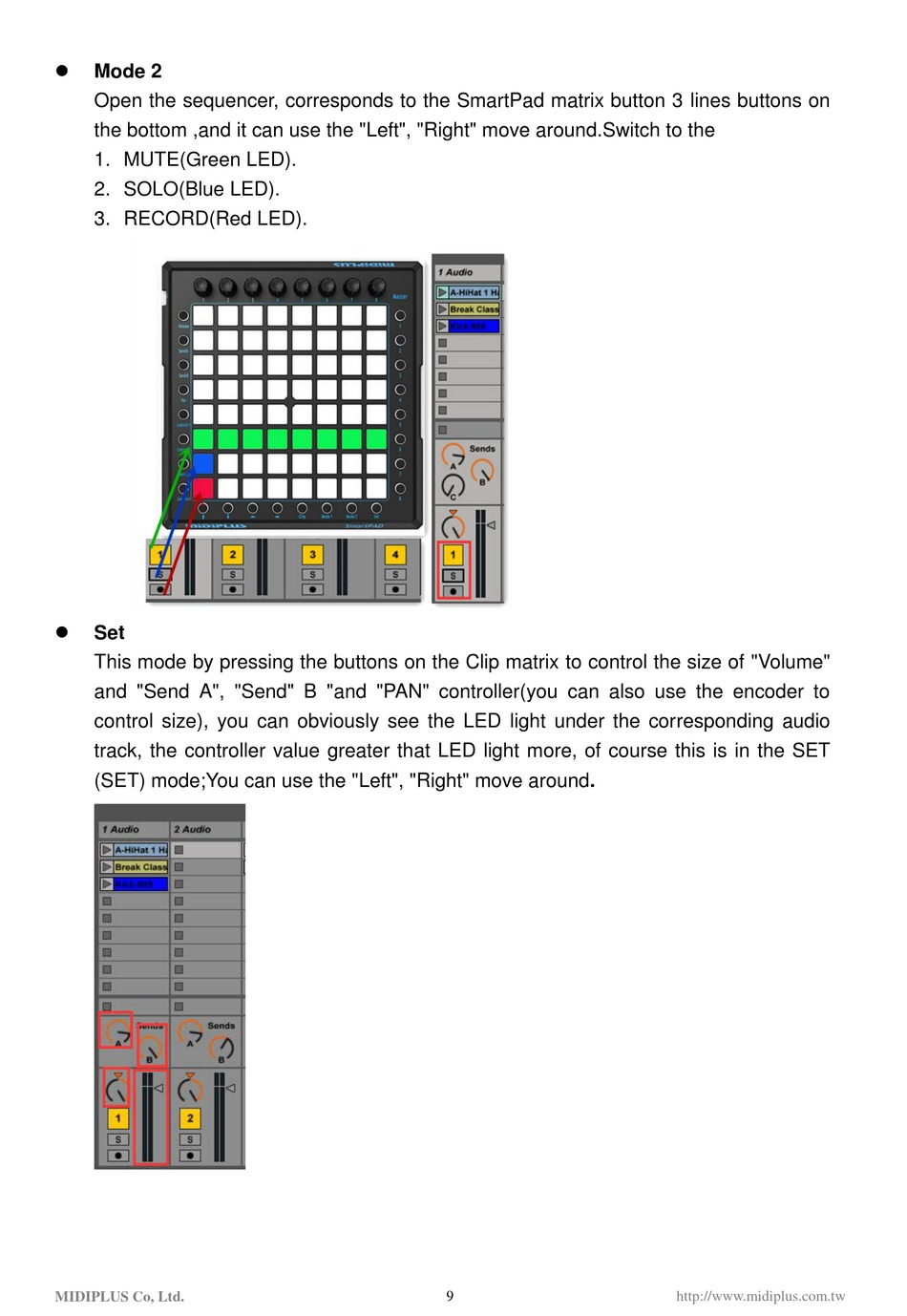

Mode 2
Open the sequencer, corresponds to the SmartPad matrix button 3 lines buttons on
the bottom ,and it can use the "Left", "Right" move around.Switch to the
1. MUTE(Green LED).
2. SOLO(Blue LED).
3. RECORD(Red LED).

Set
This mode by pressing the buttons on the Clip matrix to control the size of "Volume"
and "Send A", "Send" B "and "PAN" controller(you can also use the encoder to
control size), you can obviously see the LED light under the corresponding audio
track, the controller value greater that LED light more, of course this is in the SET
(SET) mode;You can use the "Left", "Right" move around.
