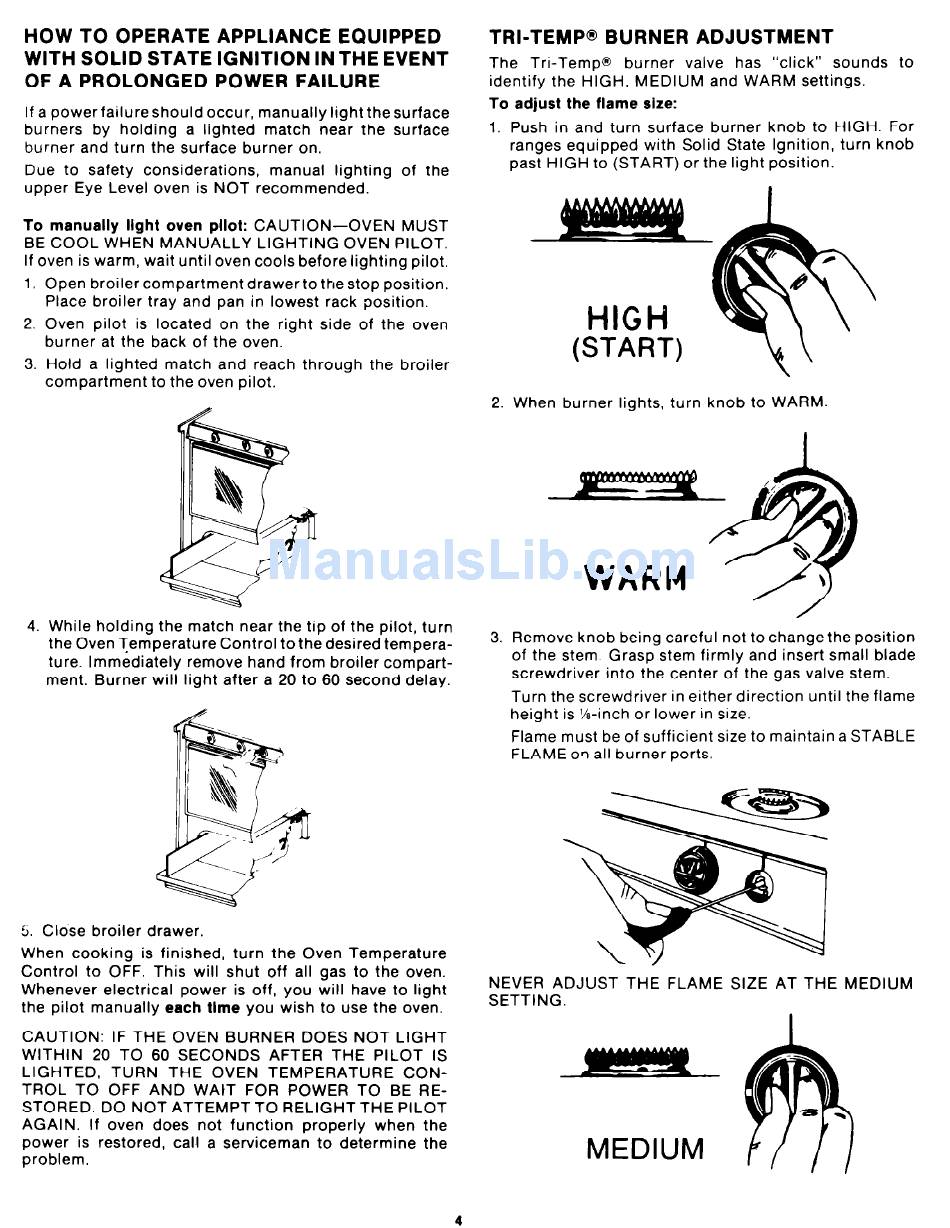

Tri-Temp" Burner Adjustment - Whirlpool SF335EEPW0 Use & Care Manual

To manually light oven pllot: CAUTION-OVEN MUST
BE COOL WHEN MANUALLY LIGHTING OVEN PILOT.
If oven is warm, wait until oven cools before lighting pilot,
Open broiler compartment drawer to the stop position.
Place broiler tray and pan in lowest rack position.
Oven pilot is located on the right side of the oven
burner at the back of the oven.
Hold a lighted match and reach through the broiler
compartment to the oven pilot.
While holding the match near the tip of the pilot, turn
the Oven Temperature Control to the desired tempera-
ture. Immediately remove hand from broiler compart-
ment. Burner will light
after a 20 to 60 second delay.
5.
Close broiler drawer.
HOW TO OPERATE APPLIANCE EQUIPPED
WITH SOLID STATE IGNITION IN THE EVENT
OF A PROLONGED POWER FAILURE
If a powerfailureshould occur, manually light the surface
burners by holding a lighted match near the surface
burner and turn the surface burner on.
Due to safety considerations, manual lighting of the
upper Eye Level oven is NOT recommended.
When cooking is finished, turn the Oven Temperature
Control to OFF. This will shut off all gas to the oven.
Whenever electrical power is off, you will have to light
the pilot manually each time you wish to use the oven.
CAUTION: IF THE OVEN BURNER DOES NOT LIGHT
WITHIN 20 TO 60 SECONDS AFTER THE PILOT IS
LIGHTED, TURN THE OVEN TEMPERATURE CON-
TROL TO OFF AND WAIT FOR POWER TO BE RE-
STORED. DO NOT ATTEMPT TO RELIGHT THE PILOT
AGAIN. If oven does not function properly when the
power is restored, call a serviceman to determine the
problem.
TRI-TEMP@ BURNER ADJUSTMENT
The Tri-Tempo burner valve has "click" sounds to
identify the HIGH, MEDIUM and WARM settings.
To adjust the flame size:
1. Push in and turn surface burner knob to HIGH. For
ranges equipped with Solid State Ignition, turn knob
past HIGH to (START) or the light position.
(START)
2. When burner lights, turn knob to WARM.
3. Remove knob being careful not to change the position
of the stem Grasp stem firmly and insert small blade
screwdriver into the center of the gas valve stem.
Turn the screwdriver in either direction until the flame
height is %-inch or lower in size.
Flame must be of sufficient size to maintain a STABLE
FLAME
OI
all burner ports.
NEVER ADJUST THE FLAME
SIZE
AT THE MEDIUM
SETTING.
MEDIUM
4
