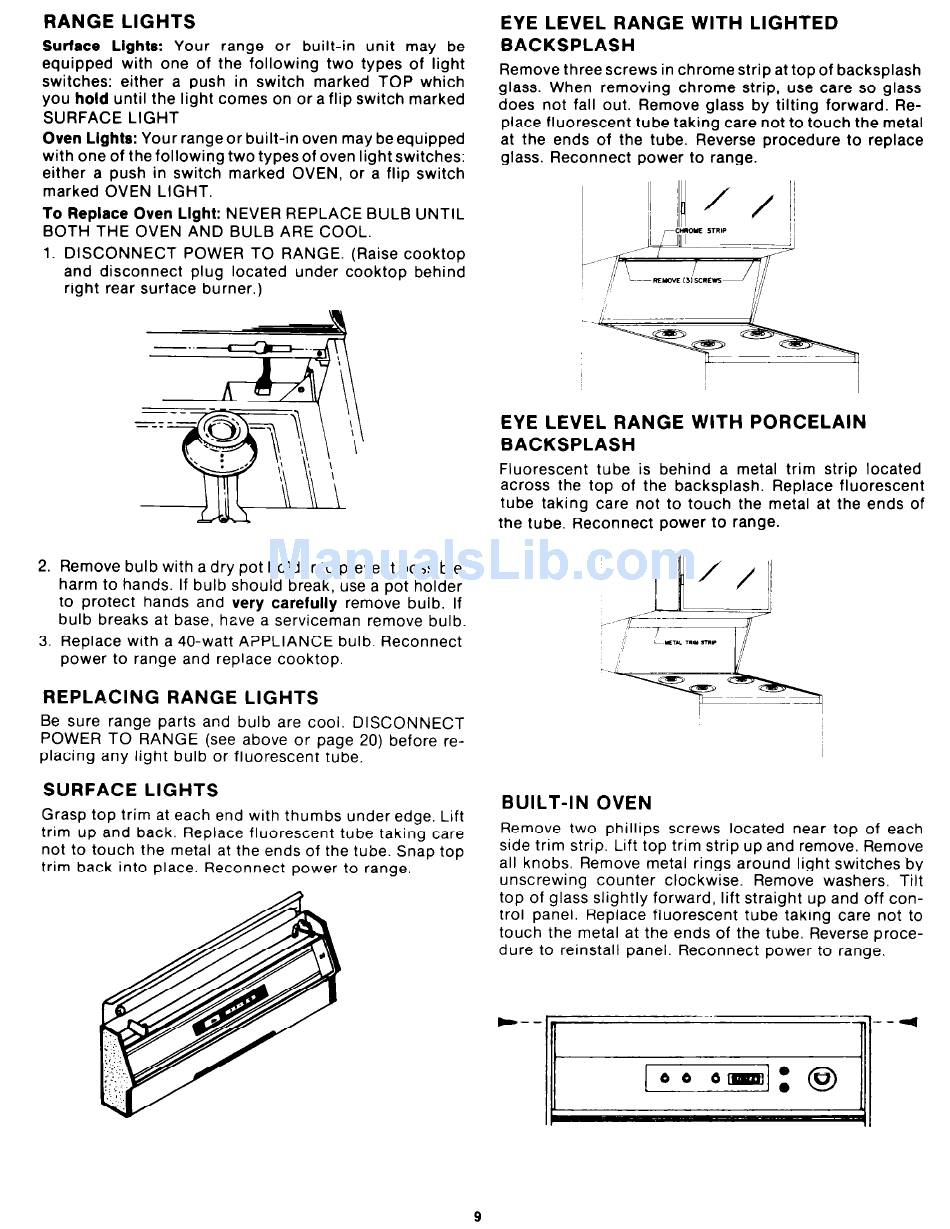

RANGE LIGHTS
Surface Lights: Your range or built-in unit may be
equipped with one of the following two types of light
switches: either a push in switch marked TOP which
you hold until the light comes on or a flip switch marked
SURFACE LIGHT
Oven Lights: Your range or built-in oven may be equipped
with one of the following two types of oven light switches:
either a push in switch marked OVEN, or a flip switch
marked OVEN LIGHT.
To Replace Oven Light: NEVER REPLACE BULB UNTIL
BOTH THE OVEN AND BULB ARE COOL.
DISCONNECT POWER TO RANGE. (Raise cooktop
and disconnect DIUQ located under cooktop behind
right rear surface birner.)
Remove bulb with a dry pot holder IO prevent possible
harm to hands. If bulb should break, use a pot holder
to protect hands and very carefully remove bulb. If
bulb breaks at base, hzve a serviceman remove bulb.
Replace with a 40-watt A?PLIANCE bulb. Reconnect
power to range and replace cooktop.
REPLACING RANGE LIGHTS
Be sure range parts and bulb are cool. DISCONNECT
POWER TO RANGE (see above or page 20) before re-
placing any light bulb or fluorescent tube.
SURFACE LIGHTS
Grasp top trim at each end with thumbs under edge. Lift
trim up and back. Replace fluorescent tube taking care
not to touch the metal at the ends of the tube. Snap top
trim back into place. Reconnect power to range.
EYE LEVEL RANGE WITH LIGHTED
BACKSPLASH
Remove three screws in chrome strip at top of backsplash
glass. When removing chrome strip, use care so glass
does not fall out. Remove glass by tilting forward. Re-
place fluorescent tube taking care not to touch the metal
at the ends of the tube. Reverse procedure to replace
glass. Reconnect power to range.
EYE LEVEL RANGE WITH PORCELAIN
BACKSPLASH
Fluorescent tube is behind a metal trim strip located
across the top of the backsplash. Replace fluorescent
tube taking care not to touch the metal at the ends of
the tube. Reconnect power to range.
BUILT-IN OVEN
Remove two phillips screws located near top of each
side trim strip. Lift top trim strip up and remove. Remove
all knobs. Remove metal rings around light switches by
unscrewing counter clockwise. Remove washers. Tilt
top of glass slightly forward, lift straight up and off con-
trol panel. Replace fluorescent tube taking care not to
touch the metal at the ends of the tube. Reverse proce-
dure to reinstall panel. Reconnect power to range.
