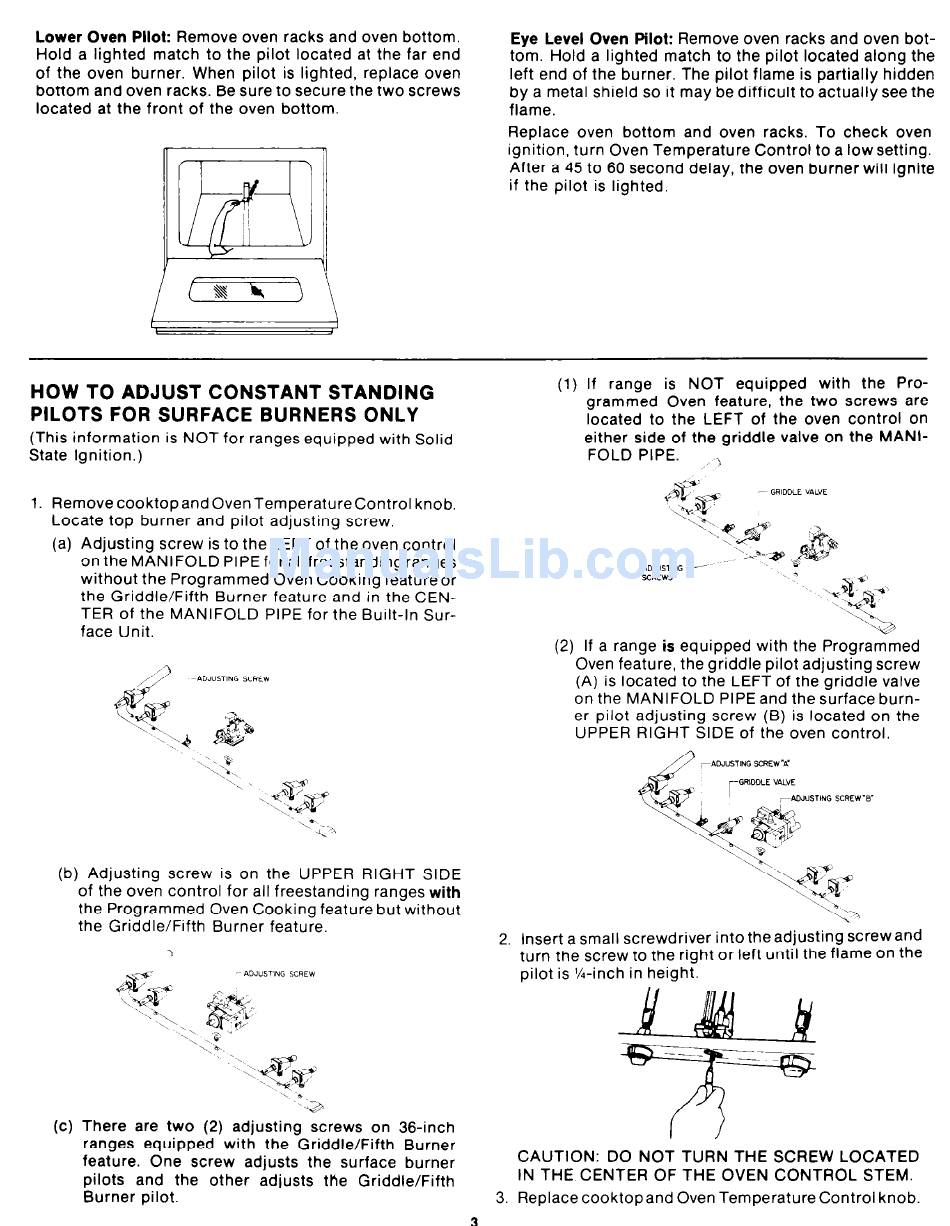

Lower Oven Pllot: Remove oven racks and oven bottom.
Hold a lighted match to the pilot located at the far end
of the oven burner. When pilot is lighted, replace oven
bottom and oven racks. Be sure to secure the two screws
located at the front of the oven bottom.
n
n
Eye Level Oven Pilot: Remove oven racks and oven bot-
tom. Hold a lighted match to the pilot located along the
left end of the burner. The pilot flame is partially hidden
by a metal shield so it may be difficult to actually see the
flame.
Replace oven bottom and oven racks. To check oven
ignition, turn Oven Temperature Control to a low setting.
After a 45 to 60 second delay, the oven burner will ignite
if the pilot is lighted.
HOW TO ADJUST CONSTANT STANDING
PILOTS FOR SURFACE BURNERS ONLY
(This information is NOT for ranges equipped with Solid
State Ignition.)
1. Remove cooktop and Oven Temperature Control knob.
Locate top burner and pilot adjusting screw.
(a) Adjusting screw is to the LEFT of the oven control
on the MANIFOLD PIPE for all freestanding ranges
without the Programmed Oven Cooking featureor
the Griddle/Fifth Burner feature and in the CEN-
TER of the MANIFOLD PIPE for the Built-In Sur-
face Unit.
(b) Adjusting screw is on the UPPER RIGHT SIDE
of the oven control for all freestanding ranges with
the Programmed Oven Cooking feature but without
the Griddle/Fifth Burner feature.
(c) There are two (2) adjusting screws on 36-inch
ranges equipped with the Griddle/Fifth Burner
feature. One screw adjusts the surface burner
pilots and the other adjusts the Griddle/Fifth
Burner pilot.
(1) If range is NOT equipped with the Pro-
grammed Oven feature, the two screws are
located to the LEFT of the oven control on
either side of the griddle valve on the MANI-
FOLD PIPE. >
(2) If a range is equipped with the Programmed
Oven feature, the griddle pilot adjusting screw
(A) is located to the LEFT of the griddle valve
on the MANIFOLD PIPE and the surface burn-
er pilot adjusting screw (B) is located on the
UPPER RIGHT SIDE of the oven control.
Insert a small screwdriver into the adjusting screw and
turn the screw to the right or left until the flame on the
pilot is %-inch in height.
I
/
CAUTION: DO NOT TURN THE SCREW LOCATED
IN THE CENTER OF THE OVEN CONTROL STEM.
Replace cooktopand Oven Temperature Control knob.
