Quantum Scalar i40 and Scalar i80: Power Supply Filler Plate Replacement
6-68063-01 Rev A
February 2014

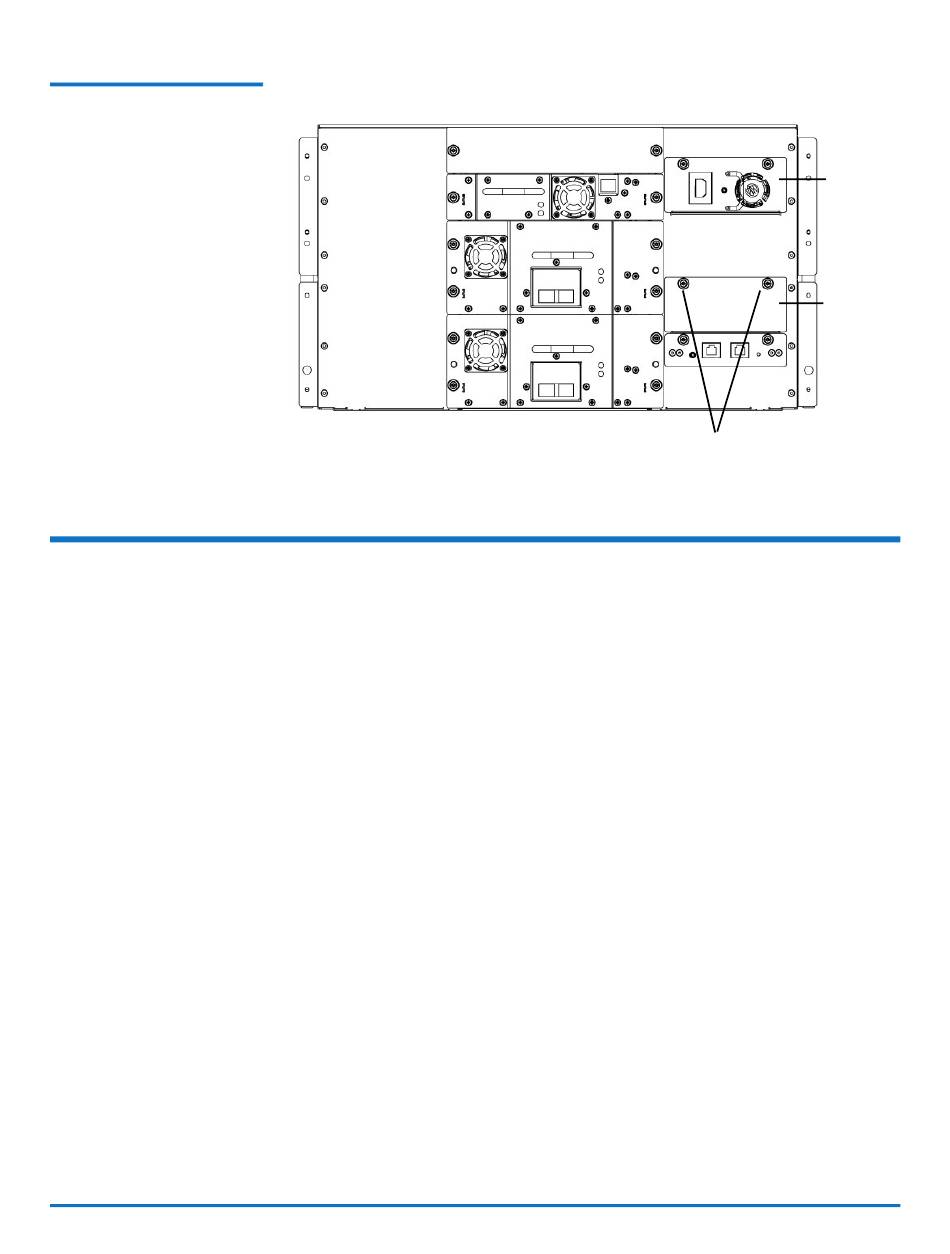

Figure 1 Power Supply Filler
Plates

Replacing a Power Supply Filler Plate

2
1 Hold the filler plate with the thumbscrews at the top.
2 Insert the bottom edge of the filler plate into the slot, engaging the bottom
edge of the filler plate in the bottom of the slot.
3 Pivot the filler plate up to fit securely in the hole.
4 Tighten the thumbscrews.
Captive thumbscrews
Replacing a Power Supply Filler Plate
Single
power
supply
installed
in top slot
Power
supply
filler plate
