Stuart Turner Monsoon Extra U1.4 bar Installation, Operation & Maintenance Instructions Manual page 8

2 LOCATION - HOT WATER INSTALLATION

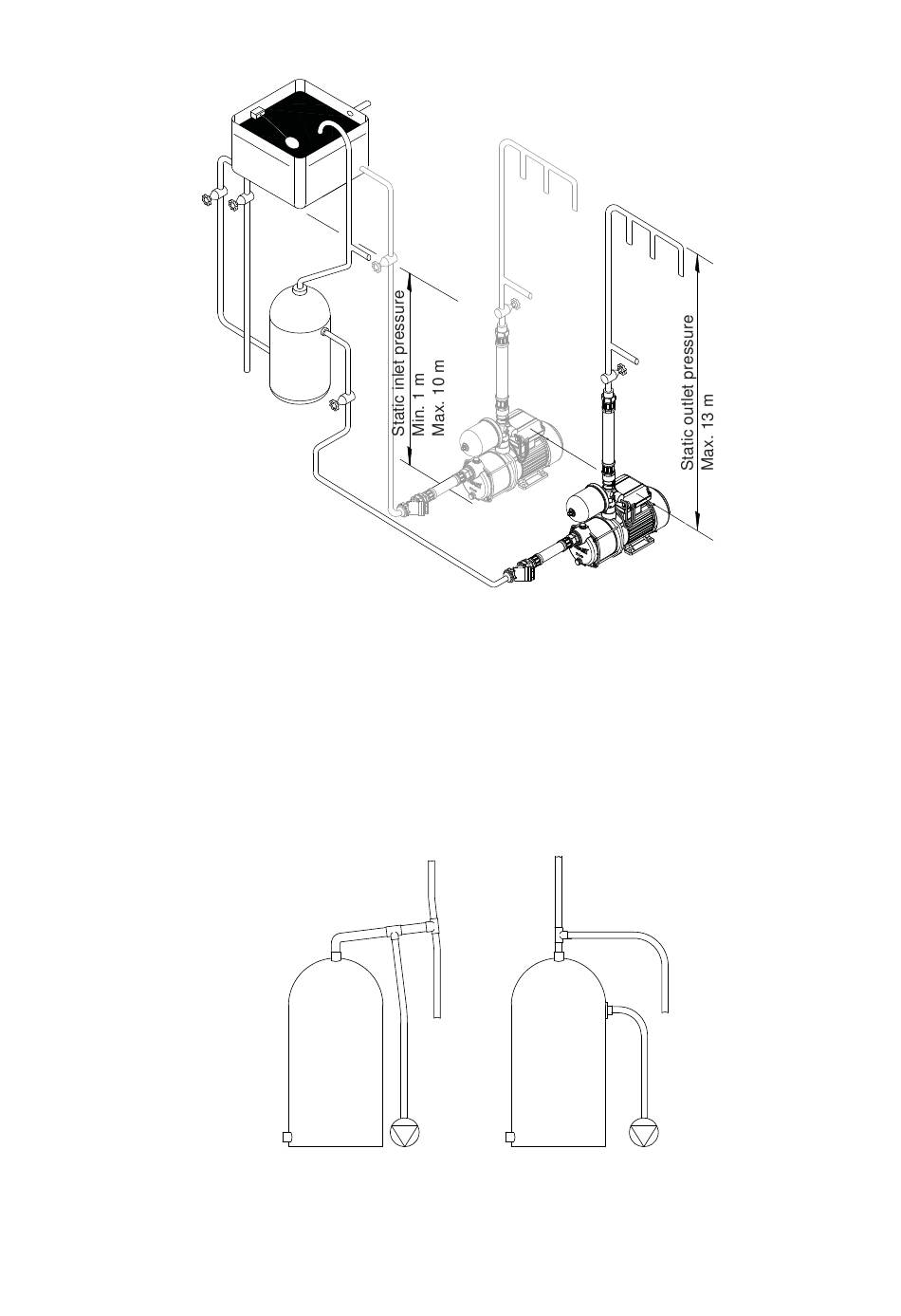

Fig. 7
2.29 Hot water supply: The supply must be air free and have a dedicated
connection to the tank which should be via a tank connector, positioned at a
slightly lower level (25 mm minimum) than the feed pipe to the hot water cylinder.
Do not connect to the mains.
2.30 Hot water cylinder or storage tank: When a hot water cylinder or storage tank
is used, ensure the pipework size from the cold water storage to the hot water
storage is of adequate size and a minimum of 28 mm.
2.31 Hot water supply: The pump must be supplied with a dedicated feed direct from
the hot water cylinder or storage tank.
Fig. 8
Off expansion
pipe with rising
28 mm offset
reducing to
28 mm pipework
to pump and
expansion pipe.
- 8 -
Hot water pump
Factory installed
secondary tapping with
28 mm pipework to
pump.
Cont ...
