Javad HPT404BT Configuration Example page 3

HPT404BT
C
ONFIGURATION
1. Ensure the SIM-card is installed in HPT404BT with GSM.
2. Connect the modem to PC, power it.

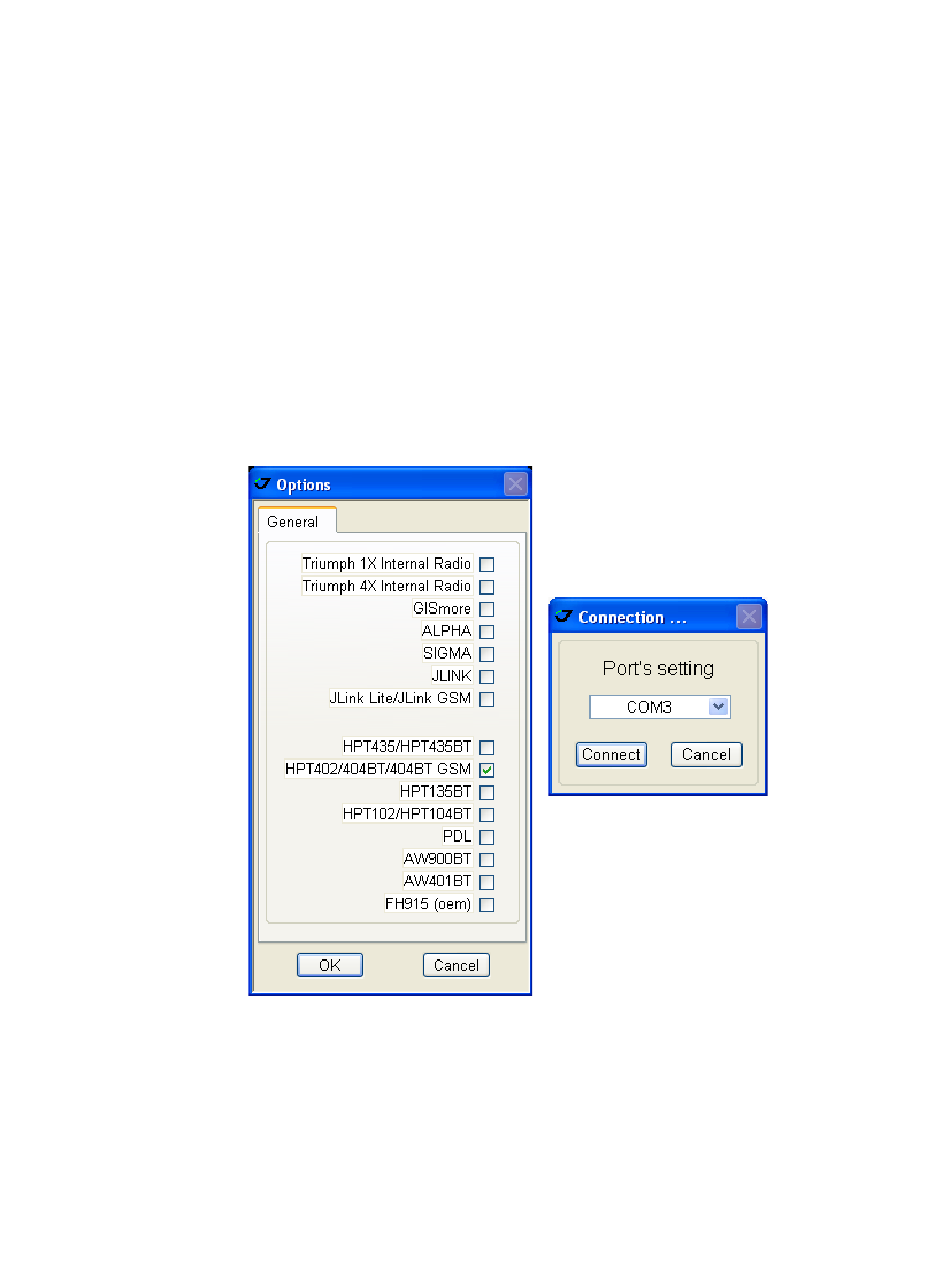

3. Start ModemVU, select HPT402/ 404BT / 404BT GSM and click Ok.
4. Select the COM port the modem is connected to and click Connect.
5. In the GSM tab enter the parameters for PIN code, User name, Password, and APN.
www.javad.com
GSM
WITH
E
XAMPLE
3
