Summary of Contents for Crosley CF3009-ST

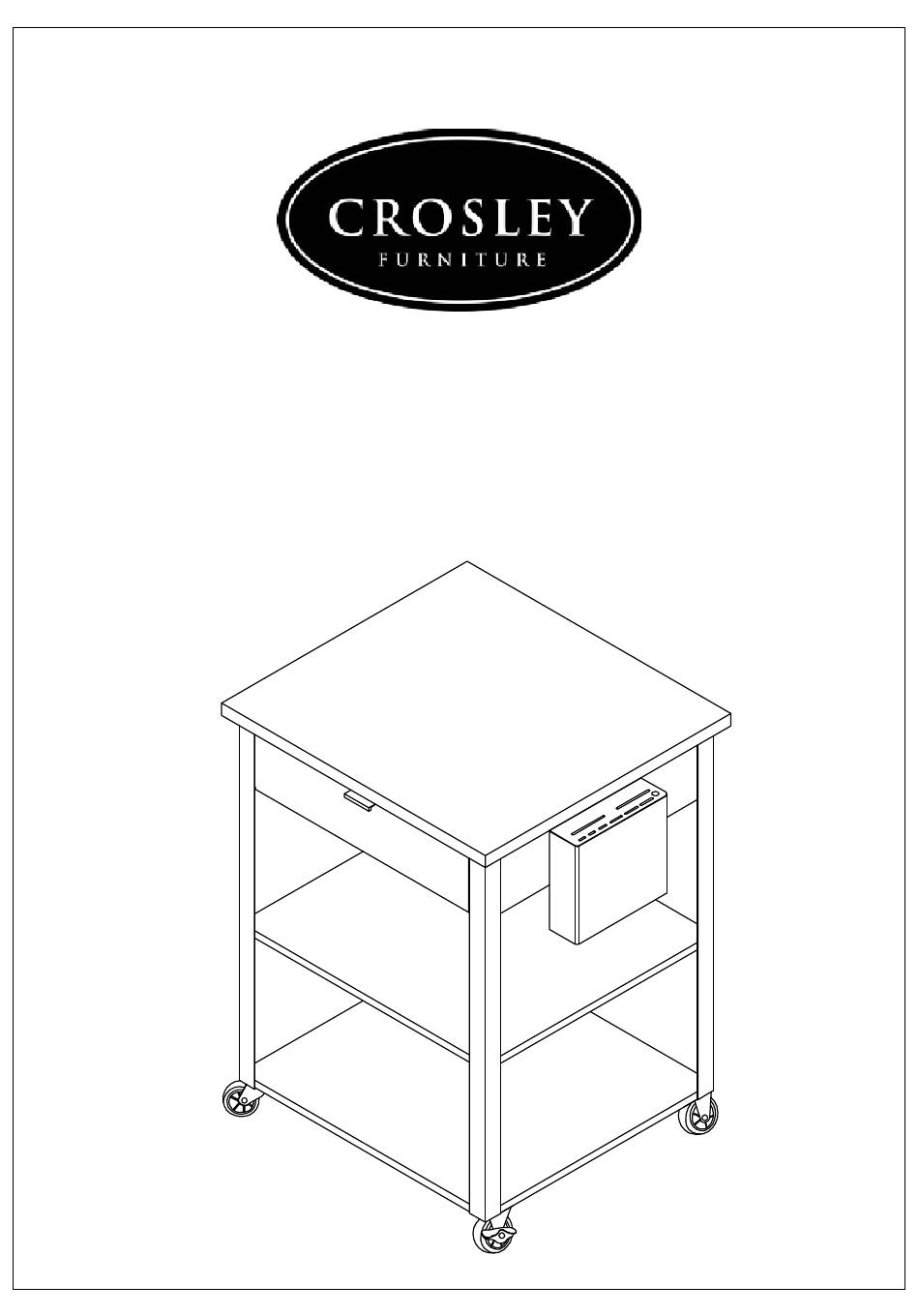

  • Page 1 Stainless Steel Kitchen Cutting Cart Stainless CF3009-ST...
  • Page 2 Congratulations! You have purchased a stylish piece of Crosley Furniture. We strived to provide fine furniture products, built with quality materials and hand finished details. Please carefully follow the assembly instructions to ensure your furniture is assembled correctly to provide long lasting enjoyment.

  • Page 3: Part List

    PART LIST Left diagonal Leg Right diagonal Leg 2pcs 2pcs Knife Storage Box Middle Shelf Bottom Shelf Towel Bar Locking Caster Caster 2pcs 2pcs HARDWARE LIST Long Bolt(M6*35mm) Short Bolt(M6*12mm) Flat Washer(M6mm) 8pcs 24pcs 24pcs Screw (M4*35mm) Allen Key(M4mm) Spring Washer(M6mm) 2pcs 24pcs Tools Needed: Allen Key (O) (included)
  • Page 4 Step 1. Place Top (A) face down on flat surface , take out the drawer . Note: To avoid scratching the top, please do not remove transparent film from the top panel until the kitchen cart is fully assembled. Step 2. Attach Towel Bar (G) to Top (A) using Screws (N) and Phillips Head Screw Driver.
  • Page 5 Step 3. Attach Legs (B) and Leg(C) to Top (A) using Long Bolts (J) and Allen Key (O). Step 4. Remove transparent film from Middle Shelf (D). Put assembled Parts (A, B &C) side down as shown. Attach Middle Shelf (D) to Legs (B & C) using Flat Washers (L), Spring Washers (M), Short Bolts (K) and Allen Key (O).
  • Page 6 Step 5. Remove transparent film from Bottom Shelf (E). Attach Bottom Shelf (E) to Legs (B&C) using Flat Washers (L), Spring Washers (M), Short Bolts (K) and Allen Key (O). Step 6. Attach Leg (C) to Top (A), Middle Shelf (D) and Bottom Shelf (E) using Long Bolts (J), Flat Washers (L), Spring Washers (M), Short Bolts (K) and Allen Key (O).
  • Page 7 Step 7. Turn assembled cabinet upside down as shown. Attach Locking Casters (H) and Casters (I) using Flat Washers (L), Spring Washers (M), Short Bolts (K) and Allen Key (O). Carefully turn cabinet right side up ,with casters on the floor. Step 8.
  • Page 8 Step 9. Hang Knife Storage Box (F) onto screws on right side panel. Now it is safe to remove the transparent film from the top panel. 7 of 8...
  • Page 9 In accordance with the "Moss-Magnuson Warranty Act" of july 10, 1975, this is termed a "limited warranty" which in no way compromises Crosley Furniture's high standards of Quality and Workmanship. 8 of 8...
