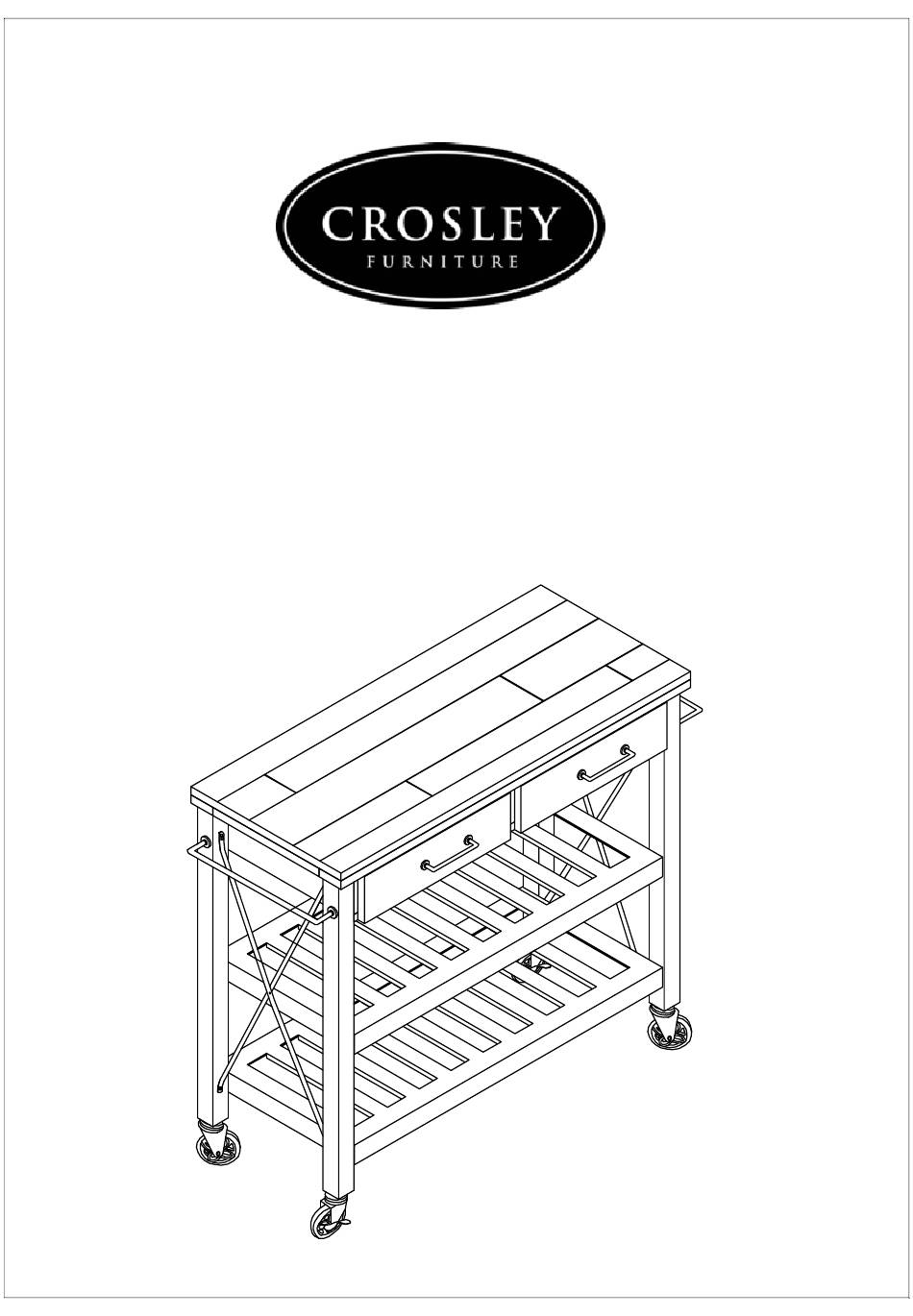

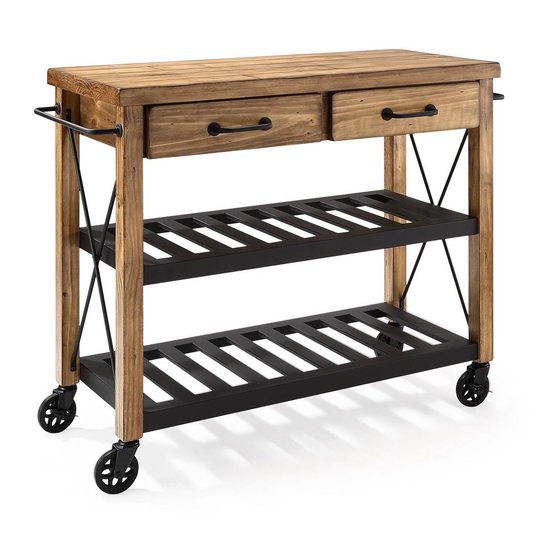

- Page 1 Roots Rack Kitchen Cart CF3008-NA...
-
Page 2: Part List
PART LIST Left diagonal Leg Right diagonal Leg 2pcs 2pcs Towel Bar Rod(M8mm) Shelf 2pcs D1/D2 2pcs 2pcs Locking Caster Caster 2pcs 2pcs HARDWARE LIST Long Bolt(M6*38mm) Short Bolt(M6*28mm) Flat Washer(M6mm) 4pcs 28pcs 16pcs Handle Washer(M6mm) Spring Washer(M6mm) Drawer handle 2pcs 16pcs 8pcs... - Page 3 Step 1. Attach Towel Bar(F) & Handle Washer(N) to Legs (B&C) using Long Bolts (I) & Allen Key (Q) . Repeat this step for the remaining two legs . Step 2. Place Top (A) face down on flat surface ,press up and down the slide joint , to pull out the drawer .
- Page 4 Step 3. Set legs (B&C) into place on Top (A) using Wood Dowels (O) . Step 4. Attach Legs (B&C) to Top (A) using Flat Washers (K) ,Spring Washers (L) ,Short Bolt (J) and Allen Key (Q). NOTE: Do not fully tighten all bolts in this step .
- Page 5 Step 5. Align Shelf (D1) with Legs (B&C) as shown below. Insert four wood dowels through the outer holes in the shelf (D1) into the Legs( B&C) to help hold the shelf in place. Install Flat Washers (K), Spring Washers (L) and Short Bolt (J) through the inner holes in the shelf into the Legs (B&C).
- Page 6 Step 6. Attach Rod (E) to Legs (B&C), using short Bolts (J) and Allen Key (Q) . Attach Locking Casters (G)&Casters (H) using wrench (P) . Step 7. Carefully turn cabinet right side up ,with casters on the floor.
- Page 7 Step 8. Attach Drawer Handle Washers (N) and Drawer Handles (M) to drawers using Short Bolts(J) and Allen Key (Q) . Left drawer has a brand in it . Step 9. Insert drawers into cabinet .
