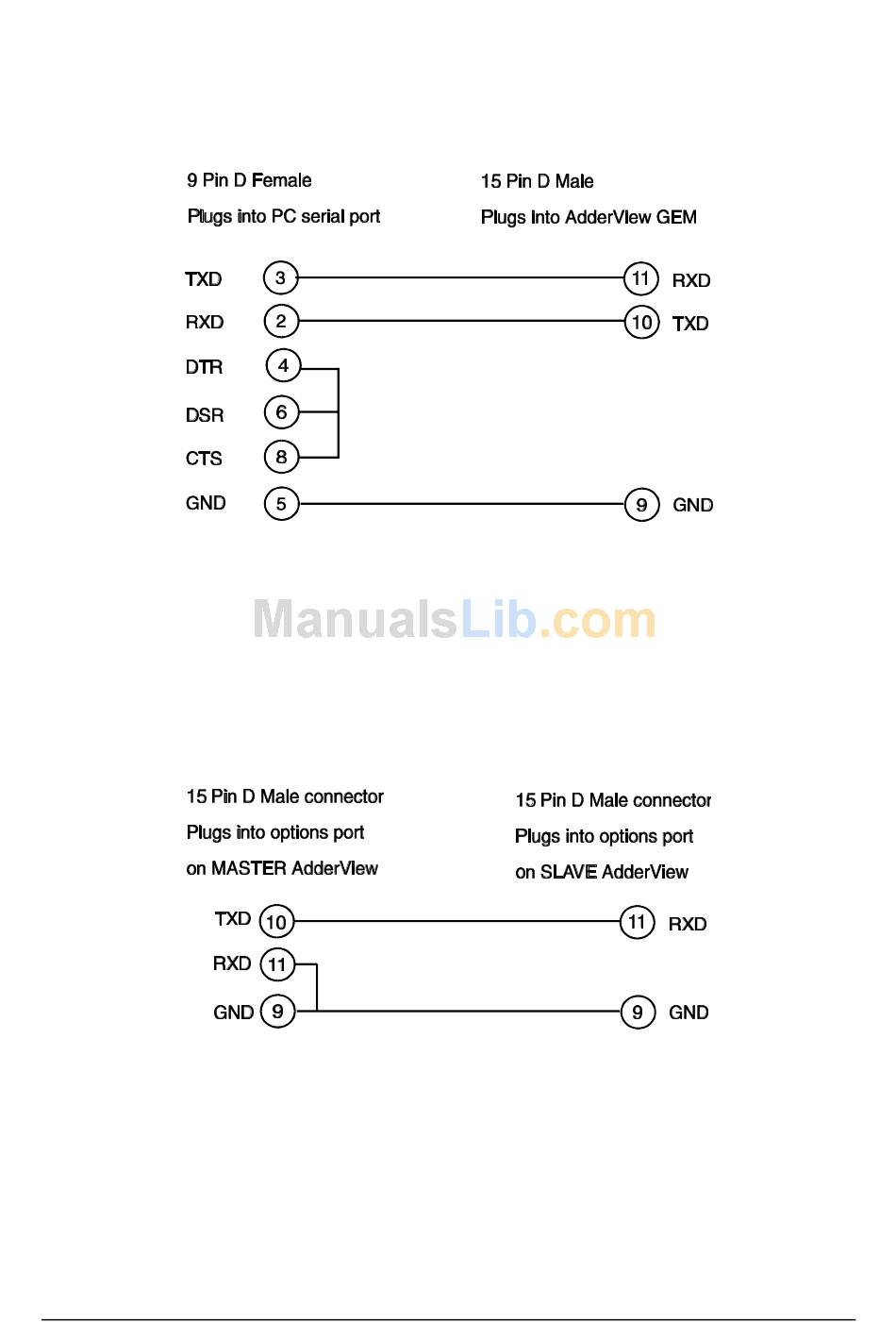

A.4 Flash upgrade cable connection
The cable connections shown below are to connect either COM1 or COM2 of a PC
to the AdderView GEM to allow flash upgrades.
A.5 RS232 synchronisation cable pin assignments
The cable connections shown below are to connect two AdderView GEMs together
for synchronised operation (see section 3.8)
AdderView GEM
Installation and Use
Page 37
