TCL Alcatel FLASH2 PLUS Repair Document page 32

L2 Repair Document

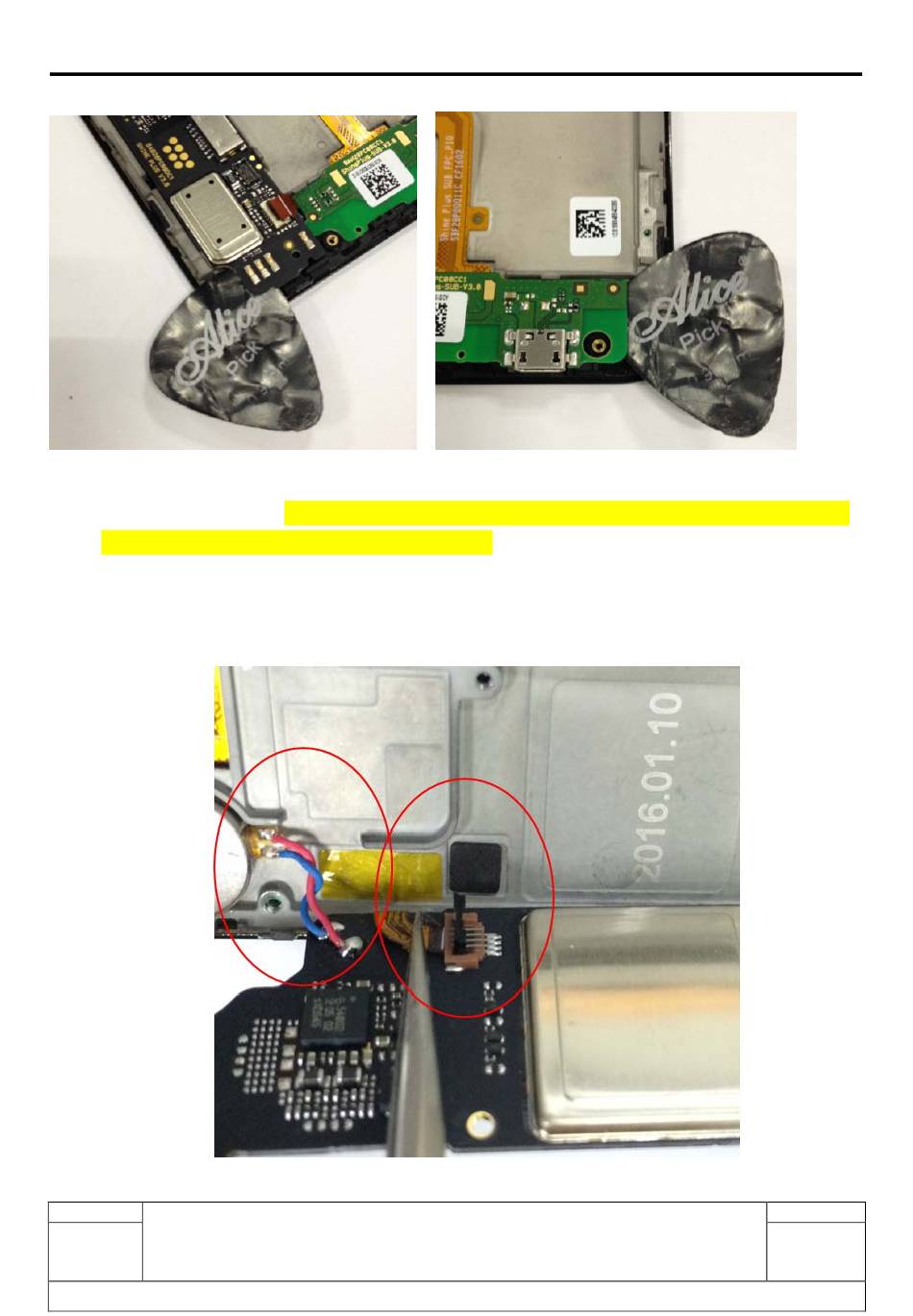

Note: Please disconnect the side key FPC and remove the vibrator from the furnished front casing in
advance with tweezers. Do not disconnect completely the main board and the front frame while the
side key FPC is still connected with the main board.
Then separate the vibrator from the main PCBA with soldering iron.
Temperature：Lead-free technology 330℃±10℃，time：5~6 seconds
Step7 : Remove the P sensor rubber, MIC rubbers, front camera and side key FPC with tweezers.
