Cell phone status before
ON OFF
charger connected
Display lights up and following battery icon displayed:
During charging
Sequential icon flashing:
Following fixed battery icon display :
After charging
(charger connected)

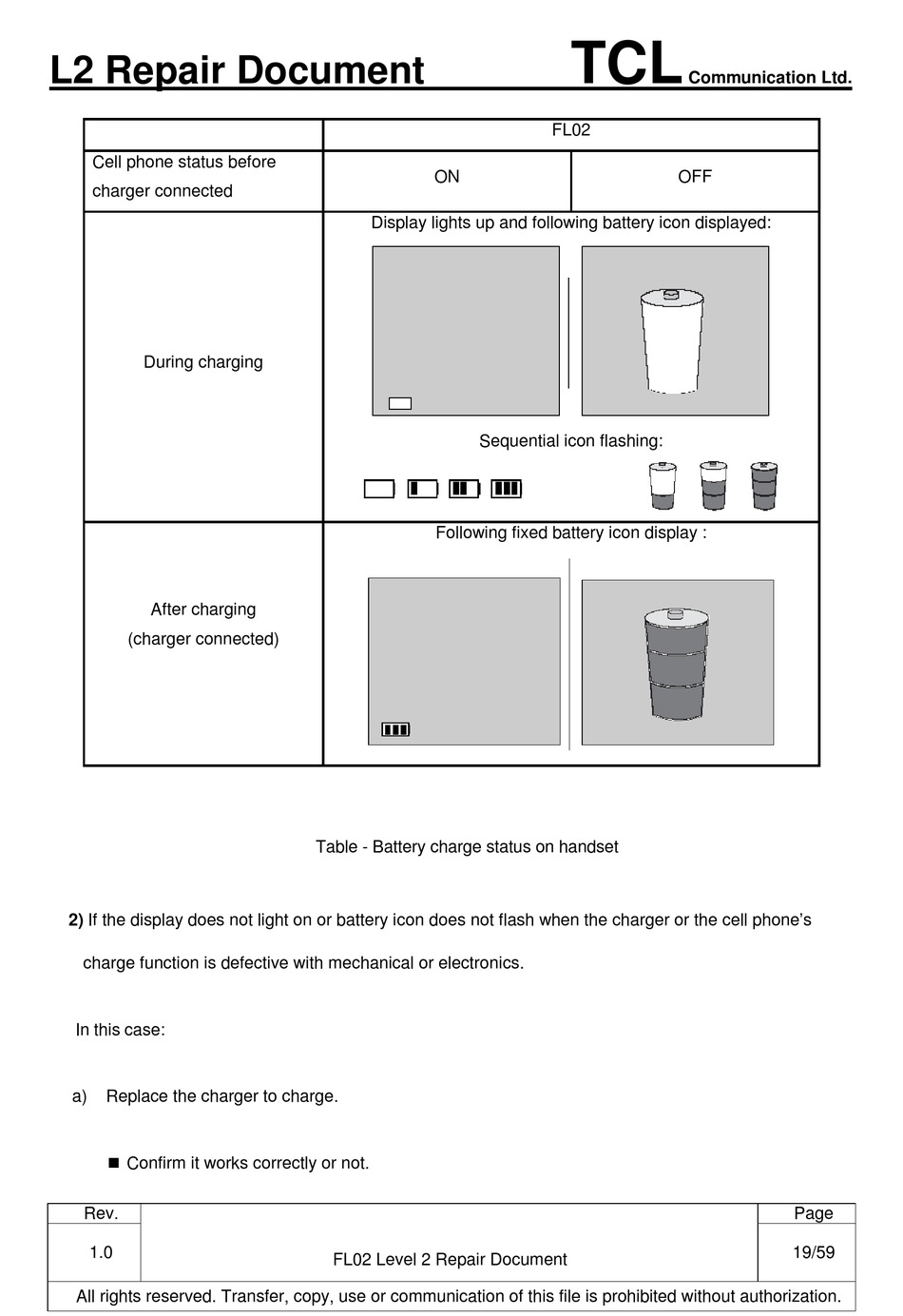

Table - Battery charge status on handset
2) If the display does not light on or battery icon does not flash when the charger or the cell phone's
charge function is defective with mechanical or electronics.
In this case:
a) Replace the charger to charge.
 Confirm it works correctly or not.
