METHVEN Aroha Installation Manual

Installation

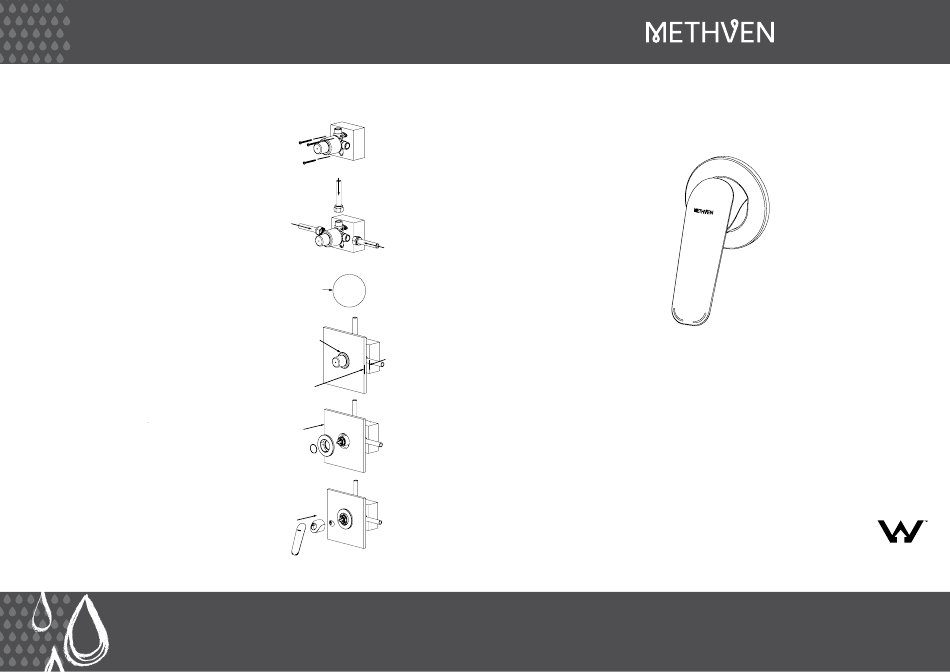

1. Screw the body assembly (1) on to the
mounting stud positioned to observe
installation depth, ID (to front of finished
wall lining e.g. tiles) as follows:
Range of Install Depth, ID = 42-62 mm
Note: Two sizes of half dome (5 & 6) are
supplied.
Long dome (6) for 42-52 mm
Short dome (5) for 52-62mm
2. Connect body assembly (1) into system
and replace body assembly cover.
3. Cut hole in lining as pictured.
4. Wall lining e.g. tiles should be finished as
close as possible to the plastic template.
Remove plastic template prior to next
step.
5. Lubricate the o-ring in the faceplate
(2). Place faceplate (2) over mixer body
and slide firmly over the mixer body
until flat on the wall surface with the
faceplate's (2)drain slot at the bottom. It
is recommended that a bead of silicone
sealant is applied to the back of the
faceplate before fixing to the finished wall
surface.
6. Push inner dome (3) onto cartridge
spindle, fit o-ring (4) and appropriate half
dome (5 or 6) over the body assembly (1)
and align to the form of the faceplate.
Fit handle (7) and fasten grub screw with
2.5mm hex key (8).
JUNE 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
1.
Hot
2.
Cold
3.
Max cut out in
wall lining
ø 50mm
4.
Plastic
template
ID
5.
Finished
Wall
6.
MA019168

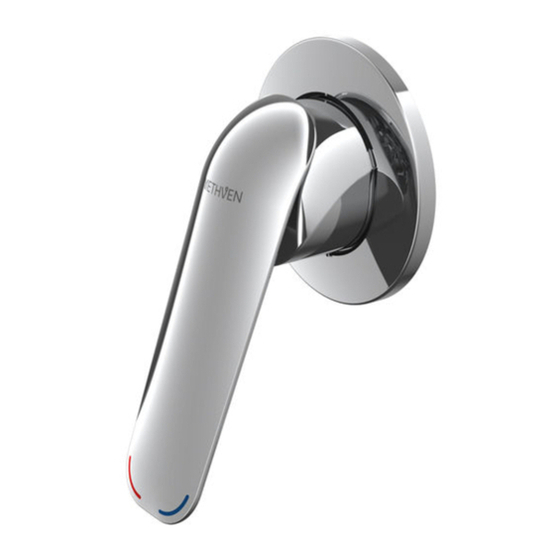

Aroha Shower Mixer
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic cartridge.
Do not remove the ceramic cartridge from the mixer when installing.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
www.methven.com
Customer Care Hotline: 1300 METHVEN (638 483)
Email: info@au.methven.com
01-9168
WMKA21005
