Summary of Contents for Black Box SW970A
- Page 1 © Copyright 1995. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
- Page 2 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 3 KVMS/RS6000 SWITCHES TRADEMARKS USED IN THIS MANUAL XGA is a registered trademark of International Business Machines Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

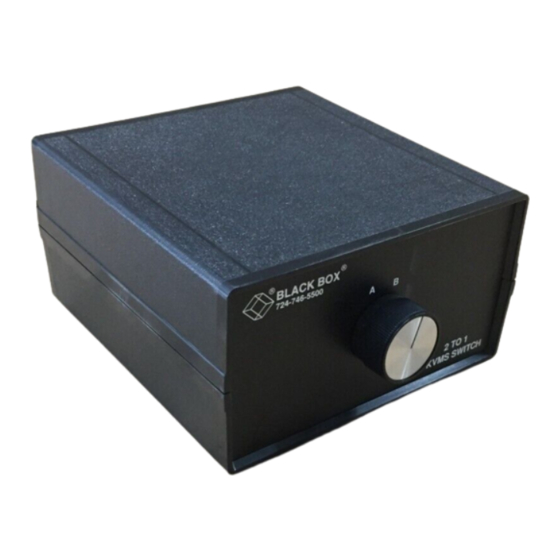

- Page 4 Humidity — Up to 95%, noncondensing Power — None required; unit is nonpowered Size — SW970A: 3.5"H x 6"W x 6.3"D (8.9 x 15.2 x 16 cm); All models except SW970A: 3.5"H x 19"W x 5.9"D (8.9 x 48.3 x 15 cm) Weight —...
- Page 5 KVMS/RS6000 SWITCHES 2. Introduction 2.1 Overview The RS6000 Keyboard/Video/Mouse Switch is an economical way to let two (or more) RS6000 processors be accessed by a single keyboard/video/mouse display station. This manual Switch is designed for those RS6000 systems that require keyboard audio, so you won’t lose the keyboard’s audio capability. 2.2 Features •...
- Page 6 KVMS/RS6000 SWITCHES 3. Installation and Operation Follow these steps to install the Switch. 1. Turn off all power to the RS6000 processor and monitor. 2. Plug the cables from the mouse, keyboard, monitor, and processor into the Switch. (See the diagrams below and on the next page.) •...
- Page 7 Select another CPU with the selector knob, and then power up that CPU. VGA Monitor System B System A RS6000 Mouse RS6000 Monitor Cable KVMS/RS6000 Mouse Cable Switch 2-1 (SW970A) 6-Pin Mini- VGA DB15HD 6-Pin Mini- Keyboard DIN Cable VGA DB15HD Extension Cable DIN Cable Cable Extension Cable (EVNPS05)
