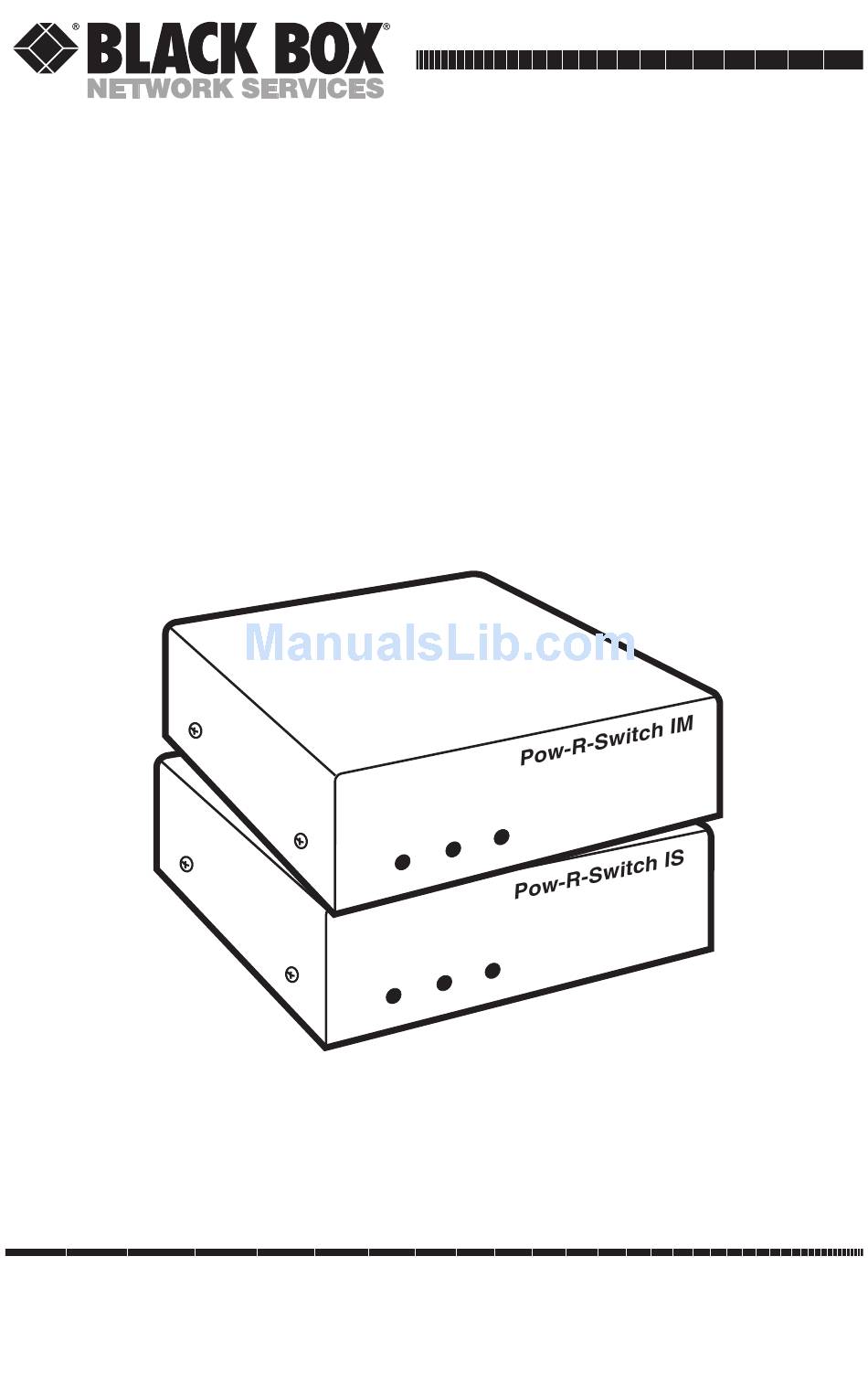

Pow-r-switches 1m, 1s, and rack tray
Hide thumbs
Table of Contents

Advertisement

Quick Links

Pow-R-Switches 1M, 1S, and Rack Tray
CUSTOMER
SUPPORT
INFORMATION
A C O
N
A C O
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
R D Y
L I N K
N
R D Y
L I N K
AUGUST 2001
SWI030A
SWI030AE
SWI031A
SWI031AE
SWI032A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWI030A and is the answer not in the manual?

Questions and answers

Related Manuals for Black Box SWI030A

Summary of Contents for Black Box SWI030A

  • Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...

  • Page 3: Federal Communications Commission

    FCC AND IC STATEMENTS, TRADEMARKS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
  • Page 4 POW-R-SWITCHES 1M, 1S NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 5 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.

  • Page 6: Table Of Contents

    POW-R-SWITCHES 1M, 1S Contents Chapter Page 1. Specifications ..................... 5 1.1 Specs for Pow-R-Switch (SWI030, SWI031) Units ......5 1.2 Specs for Rack Tray (SWI032) ............7 2. Introduction ....................8 2.1 General Overview ................8 2.2 Features ....................8 2.3 Applications ..................

  • Page 7: Specifications

    CHAPTER 1: Specifications 1. Specifications 1.1 Specs for Pow-R-Switch (SWI030, SWI031) Units: FCC Class A, IC Class/classe A Compliance — Interfaces — All models: Serial EIA RS-485; Pow-R-Switch 1M (SWI030) models only: Serial EIA RS-232 (DTE), IBM AT implementation Protocol — Asynchronous Code Set —...
  • Page 8 All models: (2) RJ-11 female (for RS-485); Pow-R-Switch 1M (SWI030) units only: (1) DB9 male (for RS-232); AC Power: 120-VAC models (SWI030A, SWI031A) only: Input: (1) North American standard NEMA 5-15P plug (on power cord); Output: (1) North American standard NEMA 5-15R outlet;...

  • Page 9: Specs For Rack Tray (Swi032)

    CHAPTER 1: Specifications 1.7"H x 5.5"W x 5"D (4.2 x 14 x 12.7 cm) Size — Weight — 2 lb. (0.9 kg) 1.2 Specs for Rack Tray (SWI032) Configuration — Holds three Pow-R-Switch modules side by side Material — Steel Size —...

  • Page 10: Introduction

    POW-R-SWITCHES 1M, 1S 2. Introduction 2.1 General Overview Network devices sometimes lock up, so that communicating with them is impossible. On command, a Pow-R-Switch 1M can switch AC power at up to ten individual Pow-R-Switch 1S modules located throughout your facility. This serves to boot, shut down, or reboot the devices plugged into the Pow-R-Switches 1S.

  • Page 11: Applications

    CHAPTER 2: Introduction 2.3 Applications • Remote network management • Rebooting data-communications equipment • Taking equipment out of service • PC-based control of AC power: You can switch any AC-powered device ON or OFF using ASCII commands sent across modem links 2.4 The Pow-R-Switches 1M and 1S Illustrated 2.4.1 T RONT...
  • Page 12 120V AC 60HZ ➁ 10 AMPS MAX ➄ SWITCHED AC LINK ADRS SETUP ➅ ➆ ➀ Figure 2-2. The rear panel of the 120-VAC Pow-R Switches (SWI030A and SWI031A). ➂ ➃ 210-240V AC 50HZ 5A MAX ➁ ➄ SWITCHED AC LINK ADRS SETUP ➅...
  • Page 13 Switch and reset the breaker by pushing it until it clicks. ➂ Switched AC Outlet: On SWI030A and SWI031A models, this is a NEMA 5-15R socket into which you can plug a 115-VAC device that you want to switch.

  • Page 14: Installation

    POW-R-SWITCHES 1M, 1S 3. Installation Installing the Pow-R-Switch 1M and 1S is simple. Briefly, the installation procedure consists of the steps listed below. For more information, please refer to the section identified in each step. 1. Set the address for each module as described in Section 3.1. 2.

  • Page 15: Setting The Configuration Switch

    CHAPTER 3: Installation If you need to change the address setting of a Pow-R-Switch 1M or 1S after installing the Switch, unplug the Switch module from the AC power source, then turn the dial to select the new address, then plug the Switch back in. The Switch will not recognize a new address setting until you power it OFF and back ON again.

  • Page 16: Linking The Modules

    POW-R-SWITCHES 1M, 1S When position 3 is set to Down, the outlet will return to the state that it was in prior to the power interruption. For example, if the outlet was OFF before the power interruption, the outlet will still be OFF after power is restored.

  • Page 17: Making The Control-Port Connection (Pow-R-Switch 1M Only)

    CHAPTER 3: Installation NOTES The total length of cabling between the first Switch module in the link and the last Switch in the link must not exceed 2,000 feet (609.6 m). Each Switch has two interchangeable Link Ports. One port should be connected to the previous Switch in line and the other should be connected to the next Switch (it doesn’t matter which port is connected to which Switch).

  • Page 18: Making The Power Connections

    POW-R-SWITCHES 1M, 1S 3.5 Making the Power Connections The next step is to plug in all power cords and power up the system. 1. Plug the AC-powered device that you want to switch into the AC outlet on the rear panel of the Pow-R-Switch 1M or 1S. Repeat this step for every device/Switch pair in your system.
  • Page 19 CHAPTER 3: Installation b) If the control device is connected directly to the Pow-R-Switch 1M’s Control Port, start your terminal-emulation software. Make sure that the terminal-emulation software is set to the same data rate as the Switch (see Section 3.2). The software should also be set to receive 8 data bits and no parity.

  • Page 20: Operation

    POW-R-SWITCHES 1M, 1S 4. Operation After you have installed and tested your Pow-R-Switch system, it should be ready for operation. (Note that the PC, modem, or other control device must send ASCII characters at the same data rate as the Pow-R-Switches. Also, the Pow-R-Switches can receive data with any type of parity, but will always transmit data using 8 bits, no parity.) The command character-string that you will use to control the Pow-R-Switch...
  • Page 21 CHAPTER 4: Operation is the address of the Switch(es) that you are sending the command to: If you enter a number from 0 to 9 for the a value, only the specific Switch that you have selected will receive the command. If you enter “*”...
  • Page 22 POW-R-SWITCHES 1M, 1S Examples: • To toggle the switched AC outlet on the Pow-R-Switch 1S at address 3, send the command ^B^X^X^B^X^X3T^M. • To display the status of all linked Pow-R-Switch modules, send the command ^B^X^X^B^X^X*?^M. NOTE The Pow-R-Switch 1M will not accept additional commands until it has finished executing the current command.

  • Page 23: Troubleshooting

    If you need to transport or ship your Pow-R-Switch: • Package it carefully. We recommend that you use the original container. • Before you ship a unit for repair or return, contact Black Box to get a Return Authorization (RA) number, and make sure you include...

  • Page 24: Appendix A: Accessories

    POW-R-SWITCHES 1M, 1S Appendix A: Accessories A.1 The Rack Tray (SWI032) This optional accessory will hold three Pow-R-Switch modules, set side by side, as shown in Figure A-1 below. The Rack Tray is designed to fit most standard instrument racks. Pow-R-Switch 1M Modular flat-satin or or 1S units...

  • Page 25: Modular Adapters

    APPENDIX A: Accessories A.2 Modular Adapters We offer a complete selection of modular adapter kits and cables designed to simplify connecting the Pow-R-Switch 1M to your modem or PC. These adapter kits and cables are shown in Figure A-2 below; the necessary pinouts are described in Appendix B.

  • Page 26: Appendix B: Pinouts

    POW-R-SWITCHES 1M, 1S Appendix B: Pinouts End-to-End Pinning, Pow-R-Switch 1M Control Port to Modem Pow-R-Switch Modem (DB9 male) (DB25 female) Signal Pin No. Pin No. Signal Abbrev. Abbrev. RLSD (DCD) RLSD (DCD) SGND SGND End-to-End Pinning, Pow-R-Switch 1M Control Port to Serial Port of AT Compatible Computer Pow-R-Switch Computer...
  • Page 27 APPENDIX B: Pinouts End-to-End Pinning, Pow-R-Switch 1M Control Port to Serial Port of Terminal or PC/XT™ Compatible Computer Pow-R-Switch Terminal or Computer (DB9 male) (DB25 male) Signal Pin No. Pin No. Signal Abbrev. Abbrev. RLSD (DCD) SGND SGND...
  • Page 28 NOTES...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 32 © Copyright 2001. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
