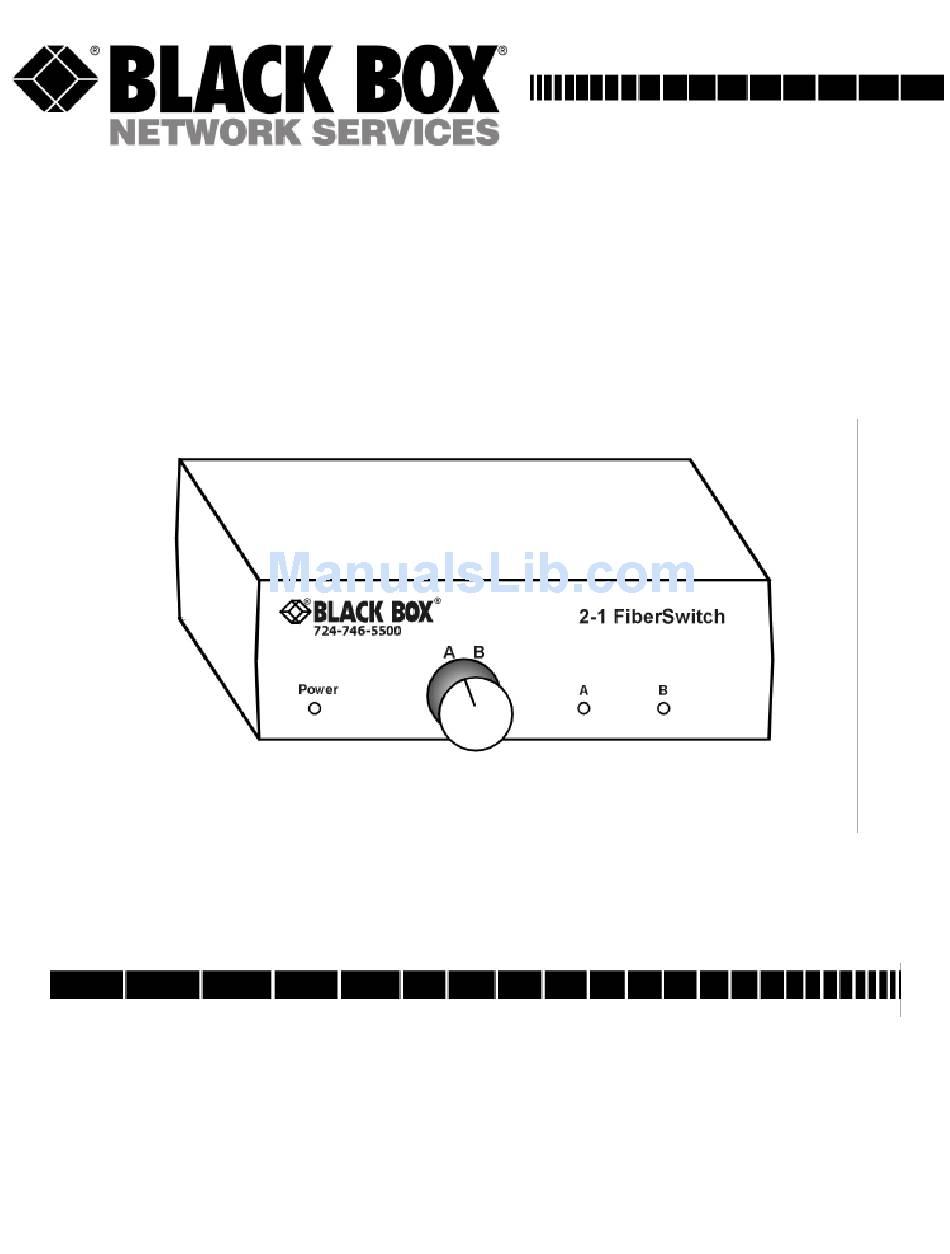

2-1 FiberSwitch
SEPTEMBER 2002
SW459A-ST
SW459A-SC
Advertisement
Table of Contents
Related Manuals for Black Box SW459A-ST
Summary of Contents for Black Box SW459A-ST
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
-
Page 2: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer=s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. - Page 3 2-1 FiberSwitch ____________________________________________________________________________________________________ NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
- Page 4 2-1 FiberSwitch ____________________________________________________________________________________________________ Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u orificios de ventilación. Servicio por personal calificado deberá ser provisto cuando: El cable de poder o el contacto ha sido dañado; u Objectos han caído o líquido ha sido derramado dentro del aparato;...
- Page 5 2-1 FiberSwitch ____________________________________________________________________________________________________ Contents ChapterPage Specifications ...…………………………………..............5 Introduction ………………………………………………………………………... 6 Installation & Operation ………………………………………………………………… 7 Troubleshooting …………………………………………………………..……………… 8 Page 4...
-
Page 6: Specifications
2-1 FiberSwitch ____________________________________________________________________________________________________ Specifications Compliance FCC Part 15 Subpart J Class A Entela Certified to UL Safety Standard 60950 Interfaces Comply with FDDI PMD and LCF-PMD Standards Comply with ATM 100Mbps Physical Layer Comply with 100 Base-FX Version of IEEE 802.3u Choice of Duplex ST or Duplex SC Connectors Controls Rotating Knob to manually select Segments A or B... -
Page 7: Introduction
2-1 FiberSwitch ____________________________________________________________________________________________________ Introduction The 2-1 FiberSwitch is a manual switching device that enables a fiber-based network resource to be alternately connected to two separate 10/100Mbps multimode 1300nm fiber optic segments. It can be used, for example, to attach a workstation to different LAN segments, to manually engage backup resources, reroute traffic, or physically isolate selected links. -
Page 8: Installation & Operation
2-1 FiberSwitch ____________________________________________________________________________________________________ Installation & Operation The 2-1FiberSwitch is to be used only with the 5.0 Volt DC power supply provided with the unit. (Condor Model DSA-0151D-05). This power supply satisfies the applicable UL safety standard 60950 that requires isolation from the AC power source as well as proper grounding. To install the 2-1 FiberSwitch, simply insert the small barrel connector from the DC supply into the mating receptacle on the rear panel and then connect the power supply to AC power using the provided cord. -
Page 9: Troubleshooting
• Package it carefully. We recommend that you use the original container. • If you are returning the unit, include everything you received with it. Before you ship the unit back to Black Box for repair or return, contact us to get a Return Materials Authorization (RMA) number Page 8... - Page 10 © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-146-0746...
