Operating/assembly instructions

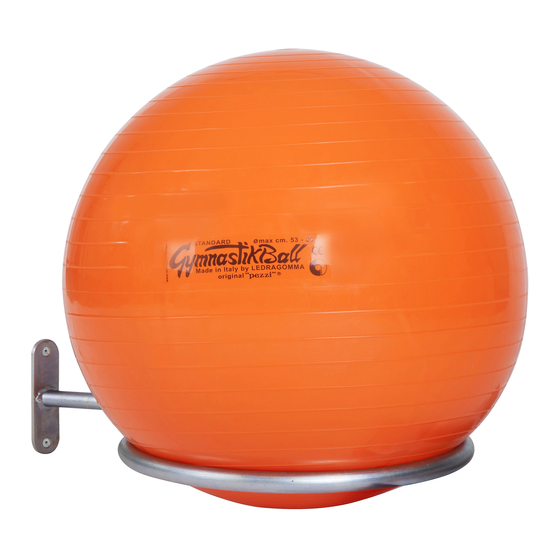

Sport-Thieme single ball holder for exercise balls
Product no. 106 9932
Thank you very much for choosing a Sport-Thieme product. Please read the
instructions fully before you assemble the equipment so you can enjoy the product
Included:
Pos. Description
1 Single ball holder
2 Plug
3 Set of screws:
1 General
The single ball holder for exercise balls is a piece of equipment for the space-
saving storage of exercise balls with a diameter of 45 to 90 cm. You can
mount the single ball holder individually. This allows for optimum use of space.
2 Assembly
Simply fix the single ball holder at the desired position. Please use the
included wall plugs, screws and washers for mounting. The wall plugs and
screws included for wall mounting are intended only for use on a stable
concrete wall with a minimum concrete strength class of C25/30. For walls with
different properties, please use wall plugs with building authority approval that
can hold a tensile load of at least 0.5kN.
Single ball holder for exercise balls
and its guaranteed safety:

‚
Ill. 1: Single ball holder
2 x coach screw M10 x 80 mm DIN 571
2 x washer A 10.5 DIN 125
2 x wall plug GD 12
