Operating/assembly instructions
Sport-Thieme mobile exercise ball stand
Prod. code: 106 9929
Mobile stand for exercise balls
Thank you very much for choosing a Sport-Thieme product. Please read the
instructions fully before you assemble the equipment so you can enjoy the product
and its guaranteed safety:
Ill. 1: Stand without ball
1 General
The mobile stand for exercise balls is a space-saving device for the transport
and storage of exercise balls with a diameter of 55, 65 or 75 cm. You can store
9 balls in the round-shaped arms. The stand has 5 swivel castors.
2 Assembly
As shown in ill. 3, place the galvanised post into the socket on the mobile base
and secure it with the socket head screw M8. Now, slide the 9 storage arms
with the star grip screws M8 x 20, from the top onto the post (see ill. 4) and
position them in groups of three (bottom, middle, upper).
Ensure that you place the arms in such way that the screws are at the bottom
(see ill. 4).
Post
Base with

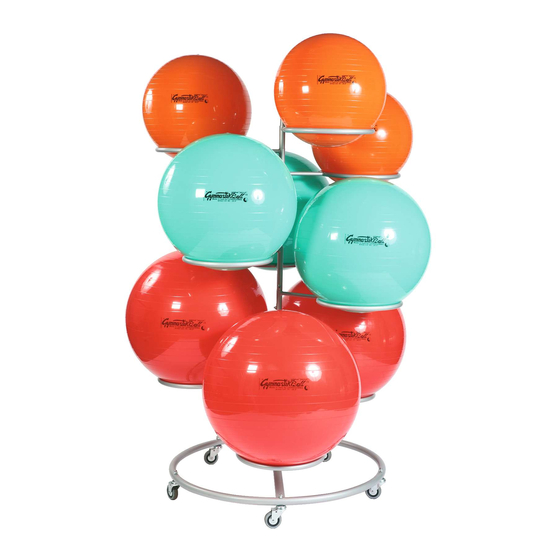

Ill. 2: Stand with ball
castors
Page 1 of 3
Sport-Thieme GmbH
38367 Grasleben / Germany
Telephone: +49 (0)53 57/181 81
Fax: +49 (0) 53 57/181 90
02/2016
