Sport-thieme 145 9278 Operating & Assembly Instructions

Operating/assembly instructions
Sport-Thieme mobile dumbbell rack
Prod. code: 145 9278
Instruction manual for mobile rack for gymnastics,
Thank you very much for choosing a
Please read the instructions fully before you assemble the equipment so you
can enjoy the product and its guaranteed safety:

Included:

Pos. Description
1 2 x side panel with mounted double castors
2 2 x pre-assembled shelves
3 8 x socket screw M10 x 60 with nuts and 2 washers
1.

Assembly instructions

Assemble the parts as shown in ill. 2. For this, you need an 8
mm hex key.
aerobics and standard dumbbells
Page 1 of 2
38367 Grasleben / Germany
Telephone: +49 (0)53 57/181 81
www.sport-thieme.com
product.

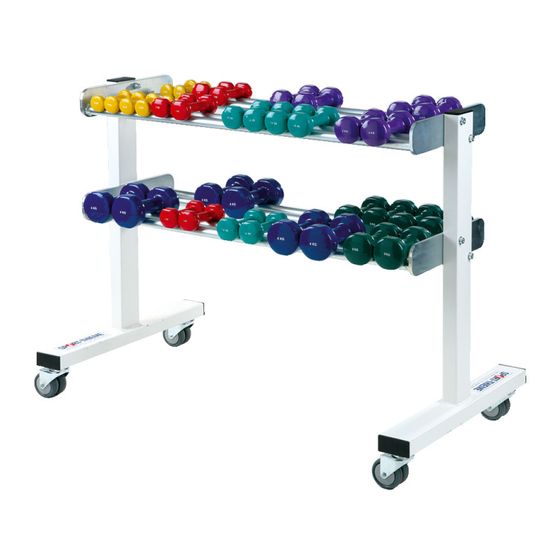

Ill. 1: Rack
Ill. 2 : Exploded-view drawing
02/2016
