Security Engineered Machinery Co., Inc
OPERATIONAL & MAINTENANCE MANUAL

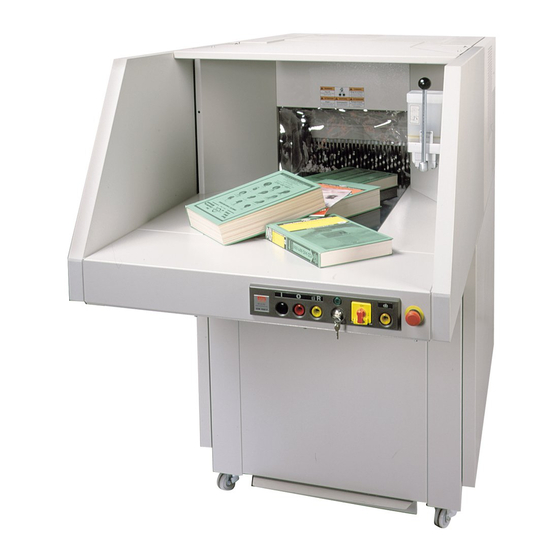

Model 7050P Old Style with Dual Troll Bin
POP-0027 Rev. 1
ECN: 00518
Revised: 03/25/2020
Security Engineered Machinery Co., Inc
Phone Toll Free 1(800)225-9293
Email: Service@SEMSHRED.COM
Fax: (508)366-6814
Website: WWW.SEMSHRED.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SEM 7050P
Summary of Contents for SEM 7050P
- Page 1 Security Engineered Machinery Co., Inc OPERATIONAL & MAINTENANCE MANUAL Model 7050P Old Style with Dual Troll Bin POP-0027 Rev. 1 ECN: 00518 Revised: 03/25/2020 Security Engineered Machinery Co., Inc Phone Toll Free 1(800)225-9293 Email: Service@SEMSHRED.COM Fax: (508)366-6814 Website: WWW.SEMSHRED.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS READ CAREFULLY BEFORE USE This paper shredder is designed for the in-office destruction of paper documents to an unidentified waste. Proper care and use of our shredder will insure many years of trouble free operation. Index Safety Instructions & Application Installation Transportation / Pre-Assembly Operating... -
Page 4: Safety Instructions & Application
SAFETY INSTRUCTIONS This instruction manual helps you learn the safe and comfortable operation of this machine. Before working with the machine please read these instructions carefully and consider the safety regulations. Danger! Non-compliance with the instructions may endanger persons. Warning! Non-compliance with the instructions may cause damage to the machine. The operating instructions must always be available for the operator APPLICATION The machine is capable of shredding loose and crumbled paper as well as cartons with staples. -
Page 5: Installation
INSTALLATION The machine is mounted on castors and easy to move. The machine must be installed on a firm, level dry floor. Danger! − The machine must not be used outside − Do not use in the vicinity of flammable liquids or gasses −... -
Page 6: Transportation / Pre-Assembly
TRANSPORTATION Attention! − Do not raise the machine higher than necessary to avoid tipping − Transport is only possible from the back and with built-in transport safety device (4) and (5). − Make sure the lifting truck is centered under the machine. PRE-ASSEMBLY ¬... -
Page 7: Operating
PRE-ASSEMBLY Cont… Checking Rotating Direction Operate the machine for a short time as described under “Operation” • The material is transported into the machine by the conveyor belt. When the machine works in the opposite direction As the machine is wired according to the IEC standardized rotary field, when changing the rotary direction we recommend that this is performed by an experienced specialist. - Page 8 OPERATING Cont….. Starting the Machine Do not shred any material which may loop or splinter. Material, which does not go through the cutting head can only be pushed in with the pusher (9). In case of danger, press emergency off button (8). •...
- Page 9 Check the function of the door switch. Start the machine. If the door is open the machine has to stop immediately Note: Waste collection bags SEM part number for single bin - 6425B190 25/box Waste collection bags SEM part number for dual troll bin -639B140A 50/box...
-
Page 10: Troubleshooting
TROUBLESHOOTING Danger! Disconnect from the mains before starting any service work or before removing the cover. Malfunction: Standby (5) is not lighting up Cause: The door is open Main switch is OFF The emergency button is pressed Key switch is not plugged in On-site fuse Machine is overloaded the motor protection switch is re-activated after 10 minutes Malfunction: Motor makes a buzzing noise and the machine shows no performance... -
Page 11: Accessories/Technical Data
ACCESSORIES Pusher 9000 593 For closing the plastic bags: Locking device 9000 591 Binding wire (1000 pieces) 9000 597 Important: Only use manufacturer recommended accessories TECHNICAL DATA Shred Capacity: Up to 500 sheets Shred Size: 5/16” x 3-1/8” Speed: 45 FPM Horsepower: 12-3/4HP (Dual drive 2 speed) Dimensions:...
