Features
Up to 100m Range
•
433MHz FM Technology
•
1 – 4 Channels each 1000W
•
Waterproof Receiver (IP68)
•
High Security RF Protocol
•
4 Changeover Relays 5A @ 230Vac
•
Outputs Momentary or Latching
•
Any Switch Map to Any Relay
•
Systems supplied 'ready to Go'
•
FCC Certified and CE Compliant
•
Applications
General Purpose Remote Switching
•
Electric Gates
•
Roller Shutter Doors
•
Garden Lighting.
•
Description

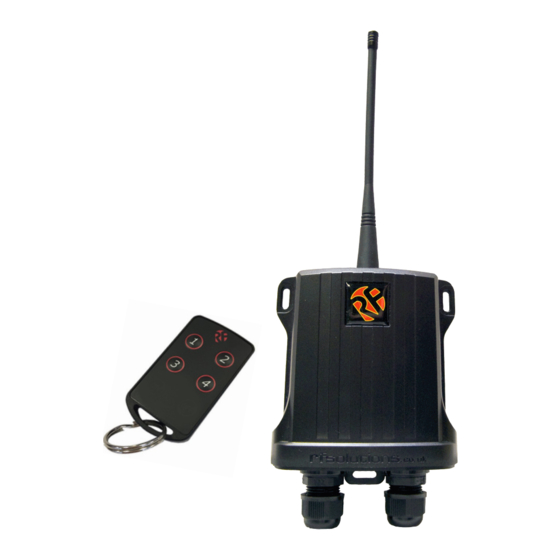

A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The new QUANTAFOB system is ideally
suited to any remote switch requirement. Each receiver has 4 relays, using the 'easy-
learn' process each relay can be controlled from any switch on any transmitter. Addi-
tional transmitters may be added to the system using the same 'easy-learn' process.
Installation is by screw terminals to the power supply and the output relay contacts. The
output relays are activated by the button press on the transmitter encoder.
Remote Control System
DS QUANTAFOB-2
QUANTAFOB
Advertisement
Table of Contents
Related Manuals for RF SOLUTIONS QUANTAFOB Series
Summary of Contents for RF SOLUTIONS QUANTAFOB Series
- Page 1 QUANTAFOB Remote Control System Features Up to 100m Range • 433MHz FM Technology • 1 – 4 Channels each 1000W • Waterproof Receiver (IP68) • High Security RF Protocol • 4 Changeover Relays 5A @ 230Vac • Outputs Momentary or Latching •...
- Page 2 QUANTAFOB Systems Part Numbers Part Number Description Power Supply Frequency QUANTAFOB-4S1 1 ch System 12-30Vac/dc QUANTAFOB-4S2 2 ch System 12-30Vac/dc QUANTAFOB-4S3 3 ch System 12-30Vac/dc QUANTAFOB-4S4 4 ch System 12-30Vac/dc Part Number Description Range* Frequency FOBBER-4T1 1 Sw 100m FOBBER-4T2 2 Sw 100m FOBBER-4T3...
-
Page 3: Relay Outputs
QUANTAFOB Relay Outputs The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @ 230V). Each relay is independent and separately controlled, and can therefore be used to switch most voltages either ac or dc. Each output relay provides an isolated switch. - Page 4 QUANTAFOB Configuring Receiver Relay Outputs Receivers can be used for many applications. The link pins LK1 and LK2 set the action of the relays 1/2 sec Mom = Relay will operate for half a second no matter how long a transmitter switch is operated = Relay will operate for as long as transmitter switch operated Latch...
- Page 5 QUANTAFOB Advanced operation - Pairing a transmitter button with a With this system, you can pair together any individual transmitter button with any receiver relay output. Without opening either enclo- sure. All you need is a magnet. Briefly (less than 1 second) place the transmitter next to the receiver in the position shown and then remove it.
- Page 6 QUANTAFOB Advanced Operation - Pairing a transmitter button using the internal learn switch To pair a new transmitter switch follow this procedure Open the receiver enclosure and extract the Circuitboard assembly Note!: Any transmitter button can be configured to operate any of the receiver relays. Select the receiver output relay to learn to: Briefly press the receiver Pairing switch (S2) once The Learn LED will flash once to indicate relay 1 is selected...
-
Page 7: Technical Specifications
QUANTAFOB Technical specifications Transmitters: FOBBER Transmitter Enclosure Rating: Standard IP68 Battery Type: CR2032 (supplied) Battery Life: 2 years @ approx. 50 1/2second presses p/day Dimensions: 90 x 54 x 27 mm Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the bat- tery polarity Receiver Unit Enclosure Rating:... -
Page 8: Mechanical Dimensions
(including liability resulting from negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability for death or personal injury resulting from its negligence.
