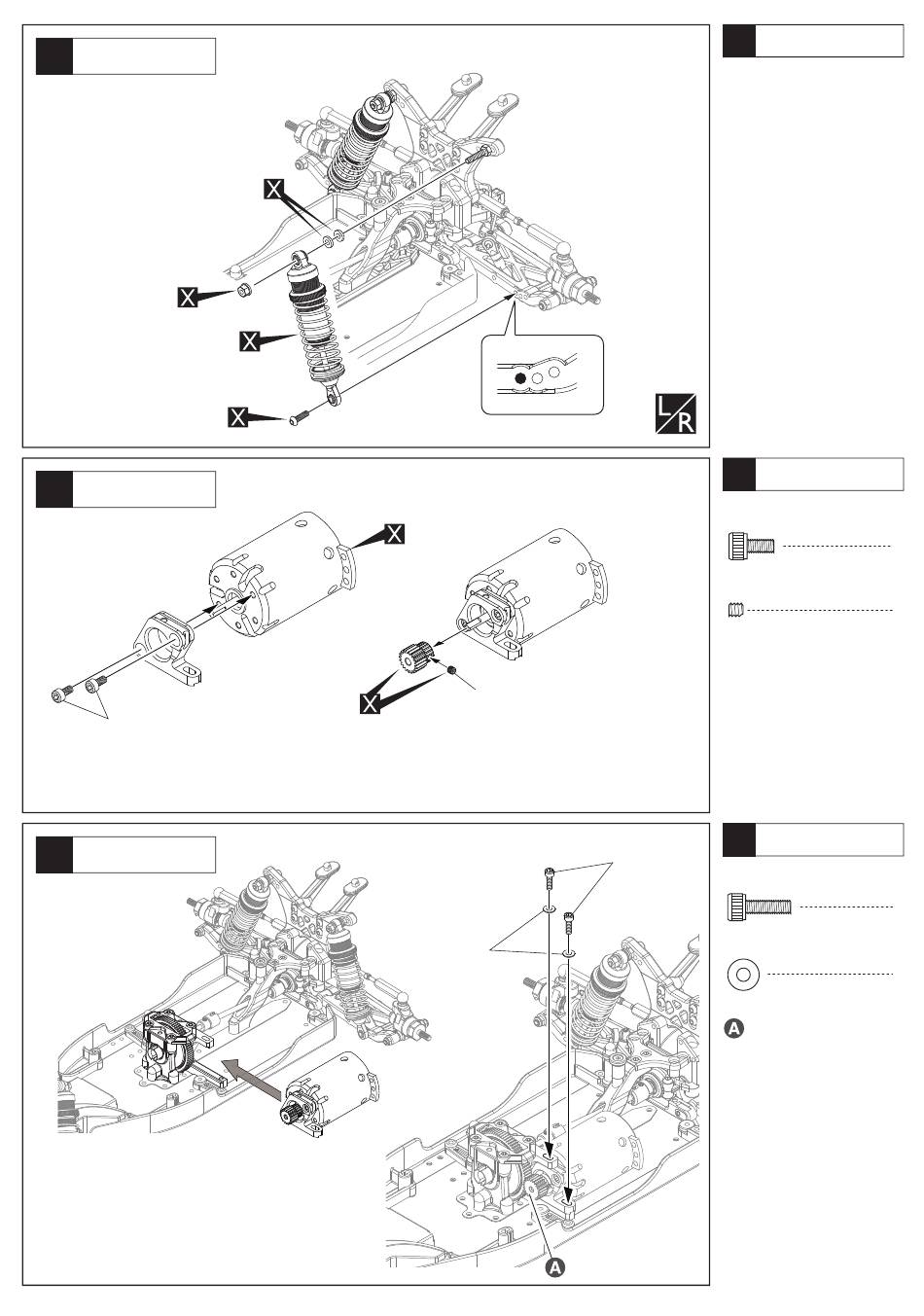

21
オイルダンパー
Oil Shock
UM753-1
W5303GM
W5304GM
3x7x1mm
UM753-1
W5303GM
W5304GM
1-S13010H
3x10mm
22
モーターマウント
Motor Mount
LA370
1-S23006
3x6mm
23
モーターマウント
Motor Mount
モーター
Motor
ピニオンギヤ
Pinion Gear
UM316C〜UM335
W0117Z〜W0125Z
1-W300705
3mm
1-S53003
3x3mm
1-S23010
3x10mm
21
22
3 x 6mm
キャップビス
Cap Screw
2
3 x 3mm
セットビス
Set Screw
1
23
3 x 10mm
キャップビス
Cap Screw
2
3mm
ワッシャー
Washer
2
紙1枚分のすき間をつくって
固定する。
Tighten the screws with one
sheet of paper inserted between
both gears.
9
