Kyosho Ultima RZ6 Conversion Set Assembly Instructions Manual page 3

Advertisement

5

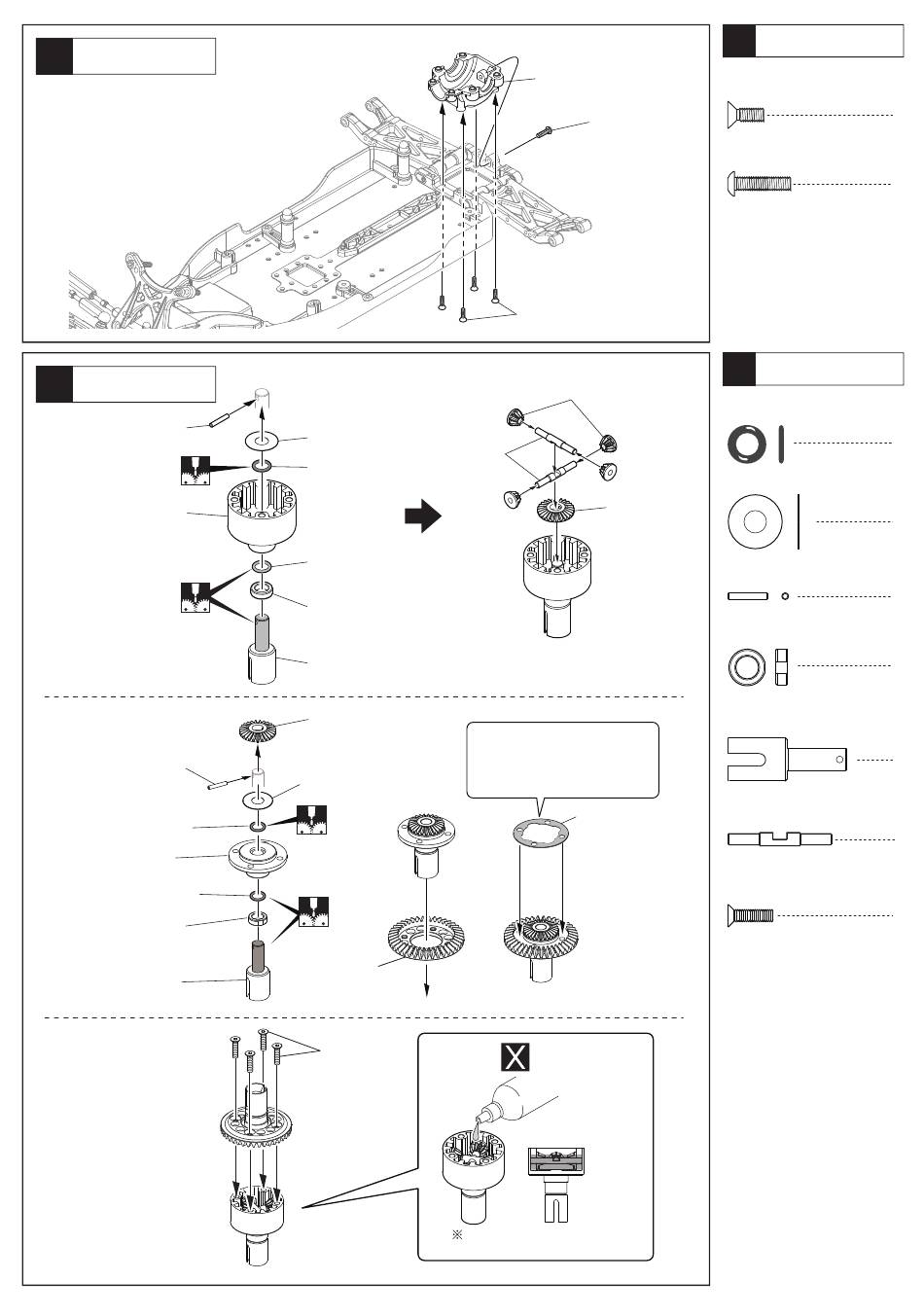

リアバルクヘッド
Rear Bulkhead
6
デフギヤ
Differential Gear
LAW50-01
1.5x8.8mm
XGS151
LAW50-01
XGS151
LAW50-01
1.5x8.8mm
LAW50-01
ORG045S
O-ring (4.5x1)
LAW50-01
LAW50-01
ORG045S
O-ring (4.5x1)
LAW50-01
5x8mm
TFW125
LAW50-01
5x12x0.15mm
UM613
LAW50-01
ORG045S
O-ring (4.5x1)
LAW50-01
ORG045S
O-ring (4.5x1)
LAW50-01
5x8mm
TFW125
LAW50-02
LAW50-01
5x12x0.15mm
XGS151
XGS151
LAW50-40
LAW50-01
2.6x10mm
オイルは8分目まで入れる。
Fill up to 80%.
LA262B
1-S13012H
3x12mm
1-S33008H
3x8mm(F/H)
LAW50-02
LAW50-02
両面にシリコンシール材を
塗布することを勧めます。
Recommended the combined
use of silicon seal to both side.
UM611
シリコンオイル
Silicon Oil
5
3 x 8mm
サラヘックスビス
F/H Hex Screw
4
3 x 12mm
ボタンヘックスビス
Button Hex Screw
1
6
(4.5x1)
Oリング
O-ring (4.5x1)
4
5x12x0.15mm シム
Shim
2
1.5x8.8mm ピン
Pin
2
5x8mm プラメタル
Plastic Bush
2
デフシャフト
Diff. Shaft
2
デフベベルシャフト
Diff. Bevel Shaft
2
2.6x10mm
サラヘックスビス
F/H Hex Screw
4
3
