Kyosho Ultima RZ6 Conversion Set Assembly Instructions Manual page 6

Advertisement

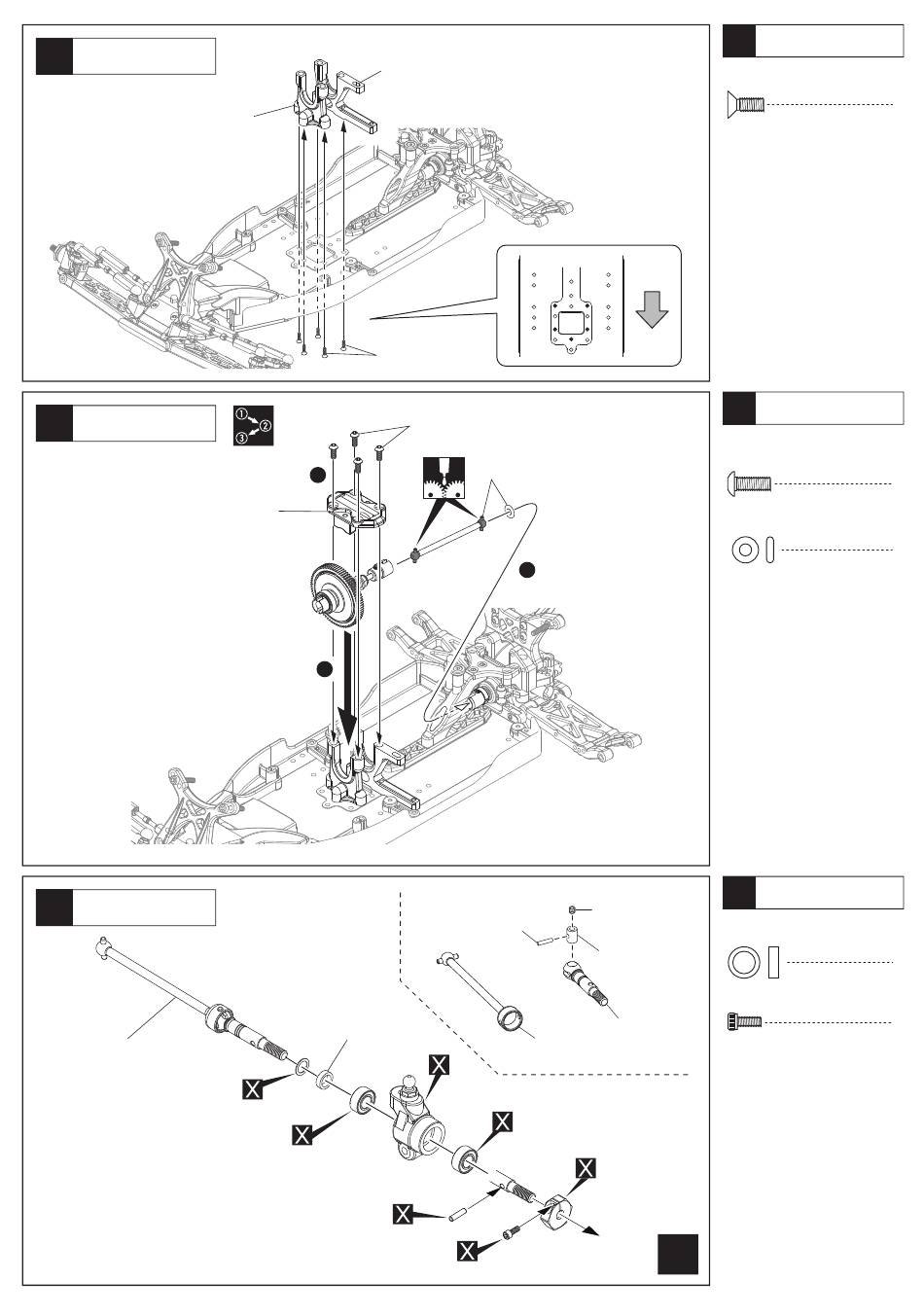

12
センターバルク
Center Bulkhead
13
センターバルク
Center Bulkhead
14
リヤサスペンション
Rear Suspension
UM510
96643
5x7x0.3mm
6
LA370
LA359
1-S33008H
3x8mm(F/H)
3
LA359
2
UM510
W0149GM
5x7x2mm
BRG001TS
5x10x4mm
LAW30GM
97018-078
2x7.8mm
1-S13008H
3x8mm
LA363B
1
UM510-02
UM510-01
BRG001TS
5x10x4mm
LAW30GM
2x5mm
12
3 x 8mm
Front
13
3 x 8mm
Oリング
14
UM510-02
1-S53003
3x3mm
5 x 7 x 2mm
UM510-02
2 x 5mm
UM510-02
LAW30GM
2
x
サラヘックスビス
F/H Hex Screw
5
ボタンヘックスビス
Button Hex Screw
4
O-ring
1
アルミカラー(ガンメタ)
Aluminum Collar(Gun Metal)
2
キャップビス
Cap Screw
2
