Kyosho Ultima RZ6 Conversion Set Assembly Instructions Manual page 8

Advertisement

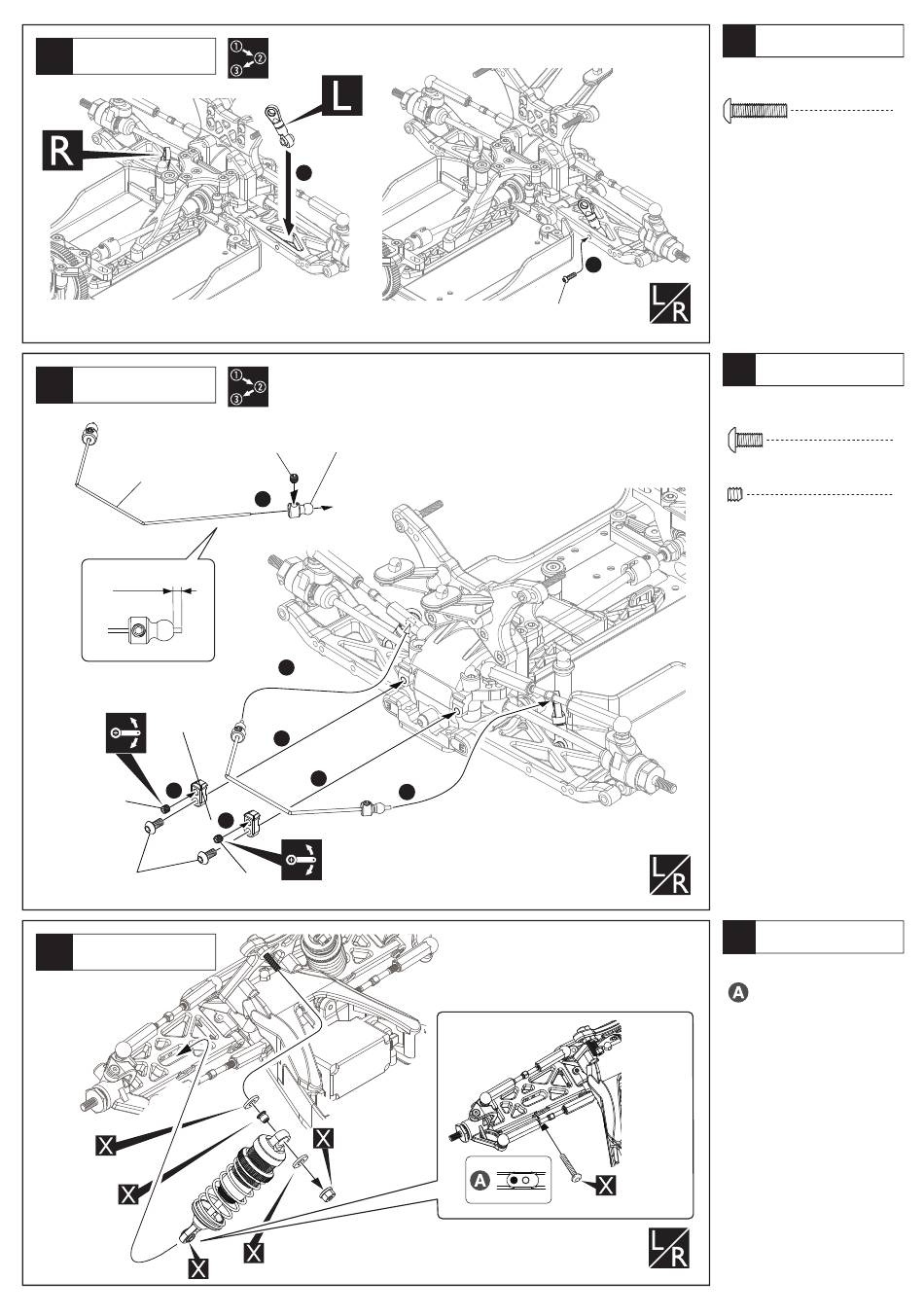

18
リアスタビライザー
Rear Stabillizer
19
リアスタビライザー
Rear Stabillizer
LA236-14B
1.4mm
2mm
LA353
3
1-S53003
3x3mm
1-S13006H
3x6mm
20
オイルダンパー
Oil Shock
UM519
UM753-1
TF018-01
LA272
3x7x1mm
W5303GM
W5304GM
W5303-05
UM753-1
8
1
1-S53003
LA237GM
3x3mm
1
4
2
2
3
1-S53003
3x3mm
UM753-1
W5303GM
W5304GM
UM519 / TF018-01
UM753-1 / LA272
3x7x1mm
1-S13012H
3x12mm
4
18
3 x 12mm
2
19
3 x 6mm
3 x 3mm
20
この穴を使う。
Use this hole.
3x15mm
1-S13015H
ボタンヘックスビス
Button Hex Screw
2
ボタンヘックスビス
Button Hex Screw
2
セットビス
Set Screw
2
