MODEL WPMZ-5-□□□-□□-□□□

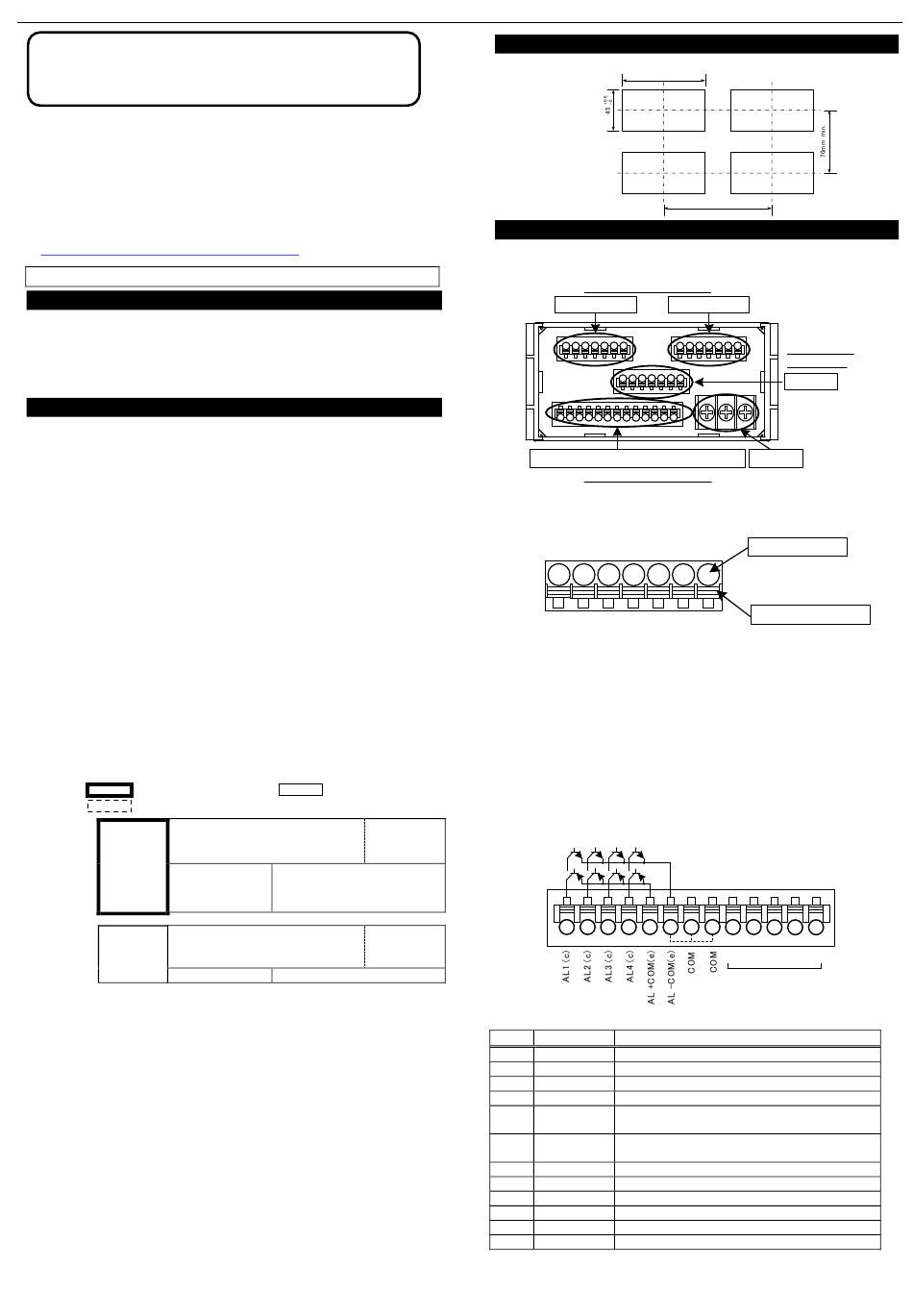

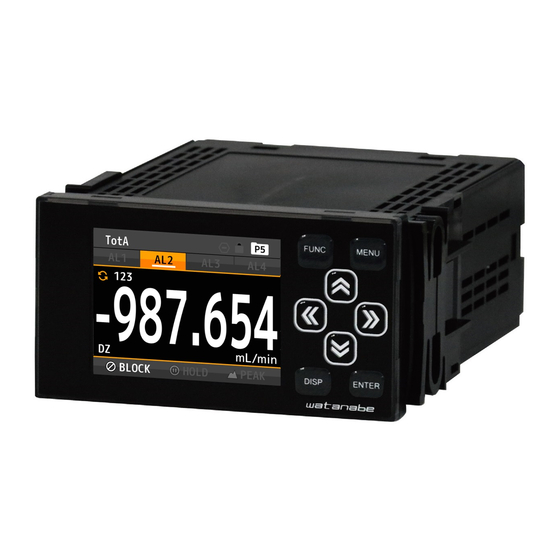

Graphical Digital Panel Meter
ＷＰＭＺ－５－□□□－□□－□□□
Quick instruction manual
Thank you for purchasing the WPMZ graphical digital panel meter.
This manual is a quick instruction manual only for preparation,
connection and basic condition settings of the WPMZ. For the all
functions of WPMZ, please refer to a detailed instruction manual
which can be downloaded from our homepage.
For models with RS communication functions, please refer to
"Modbus communication manual" or "RS-232C communication
manual" which also can be downloaded from our homepage.
（http://www.watanabe-electric.co.jp/en/）
Checks before suppling power, preparations, wiring
１. CHECKING THE PRODUCT
１－１. MODEL CODES
Please check that the product has been delivered matches the
model code has been ordered in reference to
"17. SPECIFICATIONS".
２. PRECAUTIONS ＦＯＲ ＵＳＥ
２－１. ENVIRONMENTS AND CONDITIONS OF USE
Please do not use the product under the following circumstances.
It might cause malfunctions and shortening the life of the
product.
1）
Ambient temperature of out of -5 to 50℃
2）
Ambient humidity of out of 35 to 85%, or freezing
condensing
3）
High dust or metallic powder level
(Storing in a dust-proof chassis and a countermeasure
against heat dissipation are required.)
4）
Environment of corrosive gas, salty air or oily smoke
5）
Environment of much vibration or impact
6）
Environment of rain or water drops (except the frontpanel)
7）
Environment of strong electromagnetic field or much
exogenous noises.
２－２. INSTALLATION AND CONNECTION
1）
Please read this manual before the installation and the
connection of wires. And they should be performed by a
person having a specialized technique. In addition, the
insulation class of the WPMZ is as shown by the figure
below. Please confirm that the insulation class satisfies a
use condition prior to the installation.
Reinforced Insulation
Operational Insulation
Comparative outputs, External
control inputs, Analog output,
BCD output,RS-232C
AC
power
Input Ach
Comparative outputs, External
DC
control inputs, Analog output,
power
BCD output,RS-232C
Input Ach
2）
Do not wire the power supply line, input signal lines and
output signal lines near noise sources or relay drive lines.
3）
Bundling or containing in a same duct with lines including
noises might cause malfunctions.
4）
The WPMZ becomes available functionally right after
power activation, but requires 30 minutes' warming to
satisfy all performance requirements.
Note: The inputs "A channel" and "B channel" may be
abbreviated to "Ach" and "Bch" in this manual.
２－３. CHECKING BEFORE USE
Install the WPMZ under the environments and conditions of use
which meet requirements.
If you find any damage to the product or any problem, please
contact to your dealer or our company directly.
Basic Insulation
RS-485
Modbus
RTU
Input Bch
RS-485
Modbus
RTU
Input Bch
３. HOW TO INSTALL (PANEL CUT DIMENTIONS)
To install the WPMZ, panel cut dimensions are as shown by the
figure below.
４. CONNECTING TERMINALS
４－１. BACK VIEW
UPPER ROW TERMINALS
Ach inputs
Comparetive output/External control input
LOWER ROW TERMINALS
４－２. WIREING TO SCREWLESS TERMINALS
Pushing the wire release button with a flat-blade screwdriver,
insert the wire to the wire insert hole deeply and then release
the button.
（Suitable tool for pushing buttons ：flat-blade screwdriver blade
width 2.5mm）
４－３. CONNECTON FOR LOWER ROW TERMINALS
（COMPARETIVE OUTPUT／EXTERNAL CONTROL
INPUT, POWER）
４－３－１. Comparetive Output／External Control Input
*Screwless connector
【Open-collector output products】
NPN
PNP
1 2 3 4 5 6 7 8 9
No.
Name
1
AL1 c
AL1 open-collector output (collector)
2
AL2 c
AL2 open-collector output (collector)
3
AL3 c
AL3 open-collector output (collector)
4
AL4 c
AL4 open-collector output (collector)
Common terminal for PNP output (emitter)
5
AL+COM e
(NPN output : no connection)
Common terminal for NPN output (emitter)
6
AL-COM e
(PNP output : GND for PNP)
7,8
COM
Common terminal for external control inputs
9
1
External control input No.1
10
2
External control input No.2
11
3
External control input No.3
12
4
External control input No.4
13
5
External control input No.5
【Relay output products】
+0.8
92
-0
120mm min.
Bch inputs
MIDDLE ROW
TERMINALS
outputs
Power
Wire insert hole
Wire release button
*⑥、⑦、⑧：connected internally
10 11 12 13
1
2
3
4
5
EXT CONTROL
Suitable wire：AWG24 to 16
Description
IM-0834-03
1/12
