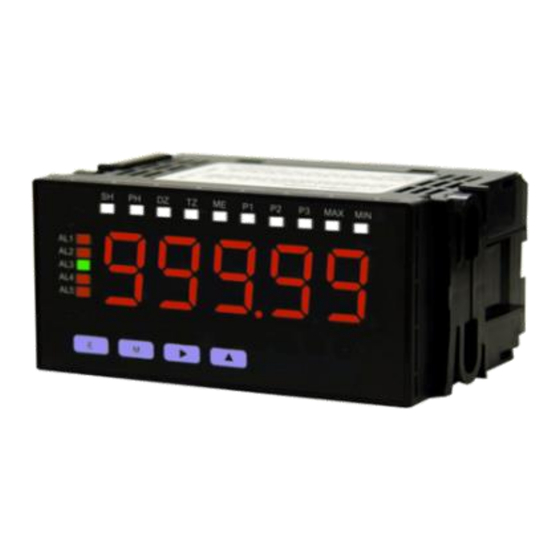

1/8 din digital panel meter for dc high voltage (single display)

Advertisement

Quick Links

(http://www.watanabe-electric.co.jp/en/)
1/8 DIN Digital Panel Meter for DC High Voltage
(Single Display)
WPM-1-
Instruction Manual
1. Precautions .................................................. 1
2. Ordering information ..................................... 1
3. Installation .................................................... 2
4. Terminal connections .................................... 2
6. Character representation .............................. 4
7. Operation procedure diagram ....................... 5
8. Measurement range settings ........................ 6
Setup

1. Precautions

1-1. Operating environment and conditions
Please do not install the device in the following locations. It may damage the device or shorten the life.
Locations out of operating temperature range -5 to 50°C.
1)
Locations out of operating humidity range 35 to 85%, or locations where freezes / condenses.
2)
Locations with high concentrations of dusts, metal powders etc.
3)
(Required measures against heat radiation and storage to the dust-proof case.)
Locations with corrosive gas, salinity or soot.
4)
Locations which has a influence of vibration or impact.
5)
Locations where the unit may come in contact with rain or water drop. (except the front bezel)
6)
Locations with a strong electromagnetic fields or exogenous noise.
7)
1-2. Mounting and connection
Please read this manual before installation and connection. Also, please install and connect by the person who has professional skills.
1)
The insulation class of this unit is as below. Please check the insulation class satisfies the requirement before installation.
Basic insulation
Comparative output
Power
Input
supply
External control, Analog output
Do not connect power connect line, input signal line and output signal line near the noise source or the relay driving line.
2)
Connecting with the noise superimposed line or storing in the same duct may cause operation failures.
3)
This unit is available as soon as the power supplied, but needs 30 minutes electrification to show the best performance.
4)
1-3. Check before using
Installation location must meet the requirement of operating conditions and operating environments.
Please inspect the product for any signs of shipping damage and contact your dealer or Watanabe Electric Industry Co., Ltd if anything comes to
your attention.

2. Ordering information

2-1. Ordering code
The ordering code of the WPM-1 is shown below. Please check that the product received matches the product ordered.
WPM - 1 -
Code
Power supply
Code
1
100 to 240Vac
1
2
□□
□□□
1-2
-
-
Display
Code
Input range
Single
DC voltage
1
(11 to 14 range)
Multi
DC high voltage
2
(15 range)
DC current
3
(21 to 24 range)
DC large current
4
(25 range)
B
Process signal
Contents
9. Scaling settings ............................................ 6
10. Analog output ............................................. 7
11. Comparative alarm function ....................... 9
12. External control function ...........................10
13. Initialize set values .................................... 11
14. Troubleshooting (Error codes) ...................12
15. Specifications............................................13
16. Parameter list ............................................15
-
0 0
Code
Output
Code
0
Display only
0
None
1
Analog output
2 setpoints
1
Relay output
4 setpoints
2
Relay output
2 setpoints
3
Photo coupler output
4 setpoints
4
Photo coupler output
IP66 rating
(Front Bezel)
Comparative
Code
Test report
output
0
None
With
1
Test report
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPM-1 1-2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WATANABE WPM-1 1-2 Series

  • Page 1: Table Of Contents

    1-3. Check before using Installation location must meet the requirement of operating conditions and operating environments. Please inspect the product for any signs of shipping damage and contact your dealer or Watanabe Electric Industry Co., Ltd if anything comes to your attention.
  • Page 2: Installation

    □ □□ □□□ Instruction manual MODEL WPM-1- 2/18 2-2. Accessories Please check if you have all the accessories below. Protective cover for terminal block ‘Display only’ / ‘with Analog output’ : 2pcs, with Comparative output : 3pcs 3. Installation 3-1. Panel cutout dimensions Panel cutout is as the diagram shown below.
  • Page 3 □ □□ □□□ Instruction manual MODEL WPM-1- 3/18 4-3. Intermediate terminal connections (2 setpoints comparative output) 2 setpoints relay output Terminal Name Description Relay output No connection (Intermediate terminal cannot be used) AL1 c AL1 comparative output common terminal Normal open AL1 a AL1 comparative output terminal (a contact)
  • Page 4: Component Names And Functions

    □ □□ □□□ Instruction manual MODEL WPM-1- 4/18 5. Component names and functions Name Main Functions Comparative Displays judgment result of comparative alarm function output display Main display Displays measured value, parameters and set values when settings. Lights up when sampling hold is activated. Lights up when peak hold, bottom hold or peak-to-peak is activated.
  • Page 5: Operation Procedure Diagram

    □ □□ □□□ Instruction manual MODEL WPM-1- 5/18 Operation 7. Operation procedure diagram...
  • Page 6: Measurement Range Settings

    □ □□ □□□ Instruction manual MODEL WPM-1- 6/18 8. Measurement range settings This model is fixed at 15 ranges (600V measurement), so there is no need to set the measurement range. 9. Scaling settings Scaling setting is the function to display the values of the analog output signals from displacement sensors or signal converters, which is converted linear to the primary chemical quantity / physical quantity.
  • Page 7: Analog Output

    □ □□ □□□ Instruction manual MODEL WPM-1- 7/18 10. Analog output 10-1. Analog output range settings The default setting for measurement range is ‘0 to 2V’ when you purchase. Please change the setting to the output range you want to use. □□...
  • Page 8 □ □□ □□□ Instruction manual MODEL WPM-1- 8/18 10-2. Analog output scaling settings Sets the specific analog output setting according to the optional starting point and end point of display value. □□ □ □ □ Note : Only the model with analog output option can set the output range. (WPM-1- 00).
  • Page 9: Comparative Alarm Function

    □ □□ □□□ Instruction manual MODEL WPM-1- 9/18 11. Comparative alarm function Normal operation There are 3 operation types for comparative alarm function in WPM.(Normal judgment, Zone judgment, Tolerance judgment) Explains about Normal operation in this column which is default setting. Judgment results Operating conditions upper limit alarm...
  • Page 10: External Control Function

    □ □□ □□□ Instruction manual MODEL WPM-1- 10/18 12. External control function Able to set each function by assigning external control terminal 1 to 4 from External control setting group below. 電源投入 External control will operate during each terminal and COM terminal is short circuit or L level. (測定状態)...
  • Page 11: Initialize Set Values

    □ □□ □□□ Instruction manual MODEL WPM-1- 11/18 12-5. Pattern select functon Pattern select function is to switch the patterns of parameters for scaling setting and comparative alarm setting. WPM-1 can store 8 patterns in the internal memory. It is able to switch pattern settings by following 2 ways. Select functions of External control terminal function to P.SEL 1 to 3.
  • Page 12: Troubleshooting (Error Codes)

    電源投入 (測定状態) □ □□ □□□ Instruction manual MODEL WPM-1- ①測定動作中にエンターキーを3秒長押しする。 12/18 長押し(3秒) ②モードキーを押すとパターン名が表示される。 電源投入 (測定状態) ③インクリメントキーを押すとセンサ電源電圧設定 Select YES by pressing ▲ [UP] key. ①測定動作中にエンターキーを3秒長押しする。 が表示される。 長押し(3秒) ②モードキーを押すとパターン名が表示される。 Factory default setting loading will run by holding the [MODE] key down for 3 seconds. 3 sec min.
  • Page 13: Common Specifications

    □ □□ □□□ Instruction manual MODEL WPM-1- 13/18 15. Specifications Common specifications Input configuration : Single ended A/D conversion : ΔΣ conversion Sampling rate Max. 250 times per second : Display : Main display: red or green 7 segment LED (height 18mm) Polarity :...
  • Page 14: Output Specifications

    □ □□ □□□ Instruction manual MODEL WPM-1- 14/18 Output specifications [Comparative output] Comparative relay Contact rating : 125Vac 0.3A (resistance load) 30Vdc 1A (resistance load) : Number of contacts : 5 relay contacts Minimum applicable load : 10μA 10mVdc Mechanical life : 50,000,000 times or more Electrical life : 100,000 times or more (resistance load) Photo coupler Rated output : Sink current 50mA Max.
  • Page 15: Parameter List

    □ □□ □□□ Instruction manual MODEL WPM-1- 15/18 16. Parameter list [Setup group list] Protection Parameter Display Default value Set value level Setting pattern select P1 to P8 Input range 15 (±600.0V)/ Full scale display value 6000 -19999 to 99999 Full scale input value 6000 -19999 to 99999...
  • Page 16 □ □□ □□□ Instruction manual MODEL WPM-1- 16/18 Number of moving average 1/2/4/8/16/32 Digital zero backup function OFF/ON Tracking zero interval 0 to 999 Tracking zero correction range 1 to 999 Display variation width 1/2/5/10 0.05/0.25/0.50/ Display refresh interval 0.25 1.00/2.00/4.00 Changing method of main AUTO...
  • Page 17 □ □□ □□□ Instruction manual MODEL WPM-1- 17/18 [External control setting group list] Protection Parameter Display Default value Set value level External control terminal 1 OFF/ function DZ (Digital zero)/ External control terminal 2 SH (Sampling hold)/ function PH (Peak hold)/ R.RST (Relay reset)/ External control terminal 3 P.SEL1 (Pattern select 1...
  • Page 18 □ □□ □□□ Instruction manual MODEL WPM-1- 18/18 Note : All contents in this manual are subject to change without notice Watanabe Electric Industry Co., Ltd. http://www.watanabe-electric.co.jp/en/ 6-16-19 Jinguumae Shibuya-ku Tokyo, 150-0001 Japan Tel: +(81)3-3400-6140 | Fax: +(81)3-3409-3156...
