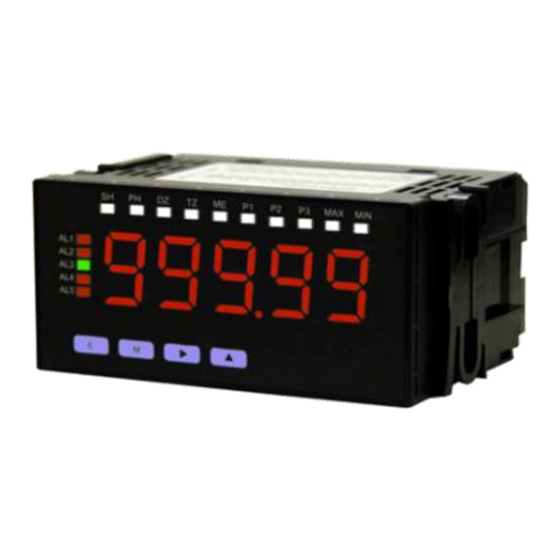

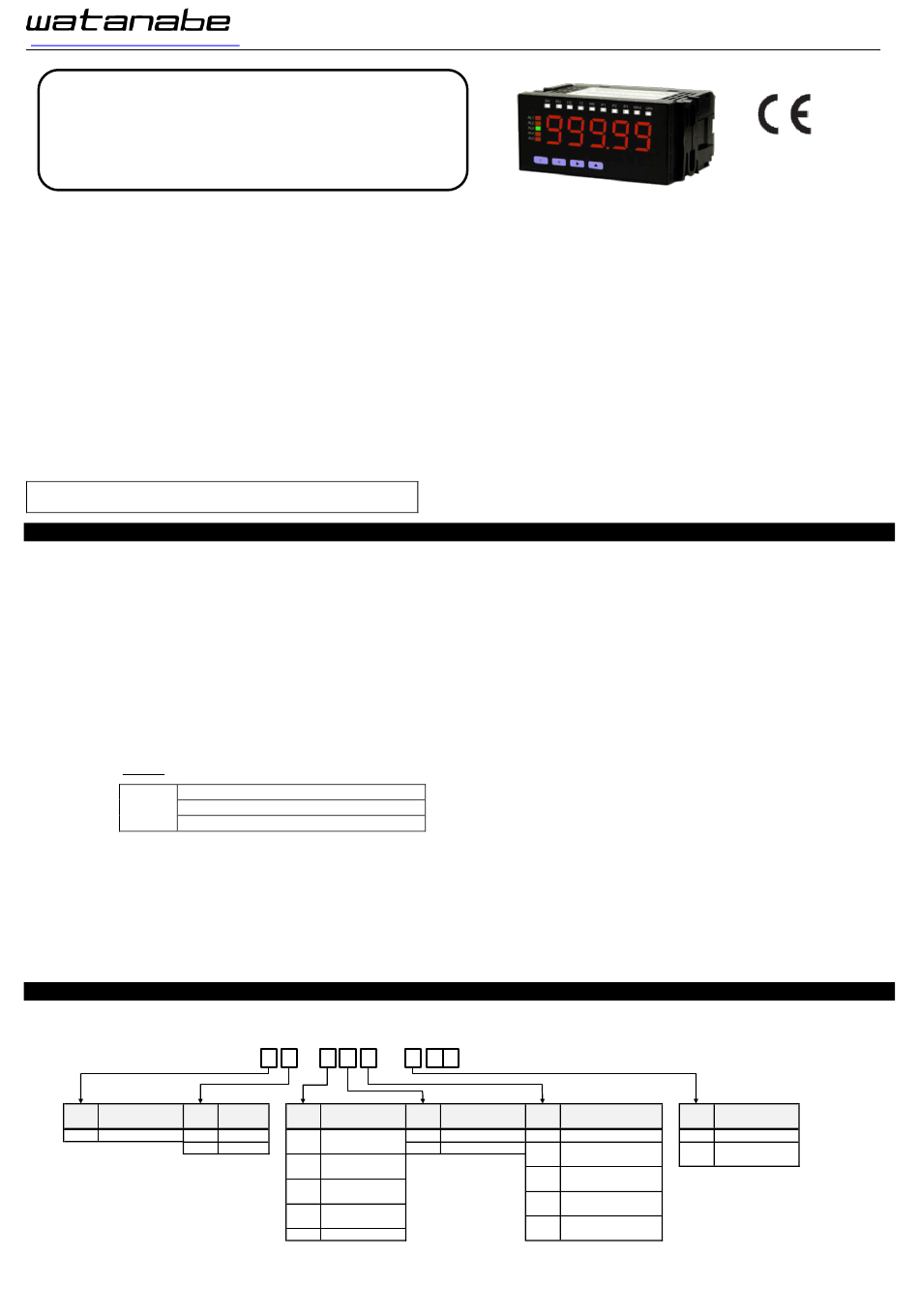

1/8 DIN Digital Panel Meter for DC Current
(Single Display)
WPM-1-
Instruction Manual
1. Precautions .................................................. 1
2. Ordering information ..................................... 1
3. Installation .................................................... 2
4. Terminal connections .................................... 2
6. Character representation .............................. 4
7. Operation procedure diagram ....................... 5
8. Measurement range settings ........................ 6
Setup

1. Precautions

1-1.
Operating environment and conditions
Please do not install the device in the following locations. It may damage the device or shorten the life.
1)
Locations out of operating temperature range -5 to 50°C.
2)
Locations out of operating humidity range 35 to 85%, or locations where freezes / condenses.
3)
Locations with high concentrations of dusts, metal powders etc.
(Required measures against heat radiation and storage to the dust-proof case.)
4)
Locations with corrosive gas, salinity or soot.
5)
Locations which has a influence of vibration or impact.
6)
Locations where the unit may come in contact with rain or water drop. (except the front bezel)
7)
Locations with a strong electromagnetic fields or exogenous noise.
1-2.
Mounting and connection
1)
Please read this manual before installation and connection. Also, please install and connect by the person who has professional skills.
The insulation class of this unit is as below. Please check the insulation class satisfies the requirement before installation.
Basic insulation
Comparative output
Power
Input
supply
External control, Analog output
2)
Do not connect power connect line, input signal line and output signal line near the noise source or the relay driving line.
3)
Connecting with the noise superimposed line or storing in the same duct may cause operation failures.
4)
This unit is available as soon as the power supplied, but needs 30 minutes electrification to show the best performance.
1-3.
Check before using
Installation location must meet the requirement of operating conditions and operating environments.
Please inspect the product for any signs of shipping damage and contact your dealer or Watanabe Electric Industry Co., Ltd if anything comes to
your attention.

2. Ordering information

2-1.
Ordering code
The ordering code of the WPM-1 is shown below. Please check that the product received matches the product ordered.
WPM - 1 -
Code
Power supply
Code
1
100 to 240Vac
1
2
□□
□□□
1-3
-
-
Display
Code
Input range
Single
DC voltage
1
(11 to 14 range)
Multi
DC high voltage
2
(15 range)
DC current
3
(21 to 24 range)
DC large current
4
(25 range)
B
Process signal
Contents
9. Scaling settings ............................................ 6
10. Analog output ............................................. 7
11. Comparative alarm function ....................... 9
12. External control function ........................... 11
13. Initialize set values ....................................12
14. Troubleshooting (Error codes) ...................12
15. Specifications............................................13
16. Parameter list ............................................15
-
0 0
Code
Output
Code
0
Display only
0
None
1
Analog output
2 setpoints
1
Relay output
4 setpoints
2
Relay output
2 setpoints
3
Photo coupler output
4 setpoints
4
Photo coupler output
IP66 rating
(Front Bezel)
Comparative
Code
Test report
output
0
None
With
1
Test report
1/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPM-1 1-3 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WATANABE WPM-1 1-3 Series

  • Page 1: Table Of Contents

    Check before using Installation location must meet the requirement of operating conditions and operating environments. Please inspect the product for any signs of shipping damage and contact your dealer or Watanabe Electric Industry Co., Ltd if anything comes to your attention.
  • Page 2: Installation

    □ □□ □□□ Instruction manual MODEL WPM-1- 2/17 2-2. Accessories Please check if you have all the accessories below. Protective cover for terminal block ‘Display only’ / ‘with Analog output’ : 2pcs, with Comparative output : 3pcs 3. Installation 3-1. Panel cutout dimensions Panel cutout is as the diagram shown below.
  • Page 3 □ □□ □□□ Instruction manual MODEL WPM-1- 3/17 4-3. Intermediate terminal connections (2 setpoints comparative output) 2 setpoints relay output Terminal Name Description Relay output No connection (Intermediate terminal cannot be used) AL1 c AL1 comparative output common terminal Normal open AL1 a AL1 comparative output terminal (a contact)
  • Page 4: Component Names And Functions

    □ □□ □□□ Instruction manual MODEL WPM-1- 4/17 Photo coupler 4 setpoints photo coupler output Terminal Name Description output AL1c AL1 comparative output terminal Collector AL1,2 e AL1/AL2 comparative output common terminal Emitter AL2 c AL2 comparative output terminal Collector AL3 c AL3 comparative output terminal Collector...
  • Page 5: Operation Procedure Diagram

    □ □□ □□□ Instruction manual MODEL WPM-1- 5/17 Operation 7. Operation procedure diagram...
  • Page 6: Measurement Range Settings

    □ □□ □□□ Instruction manual MODEL WPM-1- 6/17 8. Measurement range settings The default setting for measurement range is ‘24 (±199.99mA)’ when you purchase. Please change the setting to the measurement range you want to use. Set value Measurement range ±199.99µA ±1.9999mA ±19.999mA...
  • Page 7: Analog Output

    □ □□ □□□ Instruction manual MODEL WPM-1- 7/17 表示値 Display value 1000.0 入力 Input 0μA 1500μA 電源投入 Power up 電源投入 (測定状態) (Measurement mode) 電源投入 (測定状態) 電源投入 電源投入 (測定状態) (測定状態) (測定状態) ①測定動作中にエンターキーを3秒長押しする。 ①測定動作中にエンターキーを3秒長押しする。 Hold the [ENTER] key down for 3 seconds when 長押し(3秒)...
  • Page 8 □ □□ □□□ Instruction manual MODEL WPM-1- 8/17 電源投入 Power up 電源投入 電源投入 電源投入 (測定状態) (Measurement mode) (測定状態) (測定状態) (測定状態) ①測定動作中にエンターキーを3秒長押しする。 ①測定動作中にエンターキーを3秒長押しする。 ①測定動作中にエンターキーを3秒長押しする。 Hold the [ENTER] key down for 3 seconds when ①測定動作中にエンターキーを3秒長押しする。 長押し(3秒) 長押し(3秒) 長押し(3秒) 3 sec min. Measurement mode. 長押し(3秒)...
  • Page 9: Comparative Alarm Function

    □ □□ □□□ Instruction manual MODEL WPM-1- 9/17 電源投入 電源投入 Power up 電源投入 (測定状態) (Measurement mode) (測定状態) (測定状態) 電源投入 電源投入 (測定状態) ①測定動作中にエンターキーを3秒長押しする。 (測定状態) ①測定動作中にエンターキーを3秒長押しする。 Hold the [ENTER] key down for 3 seconds when Measurement mode. ①測定動作中にエンターキーを3秒長押しする。 長押し(3秒) 長押し(3秒) ①測定動作中にエンターキーを3秒長押しする。 3 sec min. 長押し(3秒)...
  • Page 10 □ □□ □□□ Instruction manual MODEL WPM-1- 10/17 Display value AL1 Comparative judgment value AL2 Comparative judgment value AL4 Comparative judgment value AL5 Comparative judgment value OK AL2 AL1, AL2 AL2 OK AL4 AL4, AL5 電源投入 (測定状態) 電源投入 電源投入 電源投入 Power up (測定状態)...
  • Page 11: External Control Function

    ③インクリメントキーを押すとセンサ電源電圧設 ▲ 定が表示される。 □ □□ □□□ Instruction manual MODEL WPM-1- 11/17 ▲ ④インクリメントキーを数回押しAL1判定値設定 12. External control function へ移行する。 Can use each function by assigning external control terminal 1 to 4. ▲ It will operate during each terminal and COM terminal is short circuit or L level. (L level : 0 to 1.5V, H level : 3.5 to 5V, Input current : -2mA or less) Terminal number Default value...
  • Page 12: Initialize Set Values

    ②モードキーを押すとパターン名が表示される。 □ □□ □□□ Instruction manual MODEL WPM-1- 12/17 ③インクリメントキーを押すとセンサ電源電圧設定 ▲ Press the [UP] key for 3 seconds from the front panel to switch the pattern setting. が表示される。 You can check the pattern selected by indicators P1/P2/P3 at the front panel. Pattern □P1 ■P1...
  • Page 13: Specifications

    □ □□ □□□ Instruction manual MODEL WPM-1- 13/17 Caution Displays ‘WAIT’ on main display when waiting the input signal or during the ON timing delay. Note : External control input, analog output and comparative alarm function will be invalid during the ON timing delay. Displays ‘OVER’...
  • Page 14 □ □□ □□□ Instruction manual MODEL WPM-1- 14/17 : Range swich 21 to 24 range. Over range display : When input exceeds the maximum display, 'ovEr' or '-ovEr'. Also, 'ovEr' or '-ovEr' displays when exceeded the measurement ±10%. : Decimal point Able to set to any digit Output specifications [Comparative output]...
  • Page 15: Parameter List

    □ □□ □□□ Instruction manual MODEL WPM-1- 15/17 16. Parameter list [Setup group list] Protection Parameter Display Default value Set value level Setting pattern select P1 to P8 21 (±199.99µA)/ 22 (±1.999mA)/ Input range 23 (±19.999 mA)/ 24 (±199.99 mA) Full scale display value 19999 -19999 to 99999...
  • Page 16 □ □□ □□□ Instruction manual MODEL WPM-1- 16/17 GO color of main monitor GREEN GREEN/RED AL1 color GREEN/RED AL2 color GREEN/RED AL3 color GREEN GREEN/RED AL4 color GREEN/RED AL5 color GREEN/RED Display brightness OFF/LV1/LV2/ON [Scaling setting group list] Protection Parameter Display Default value Set value...
  • Page 17 Al5 logic Note : Inside ‘()’ is when 2 point comparative output. Note : All contents in this manual are subject to change without notice Watanabe Electric Industry Co., Ltd. http://en.watanabe-electric.co.jp/ 6-16-19 Jinguumae Shibuya-ku Tokyo, 150-0001 Japan Tel: +(81)3-3400-6140 | Fax: +(81)3-3409-3156...
