4

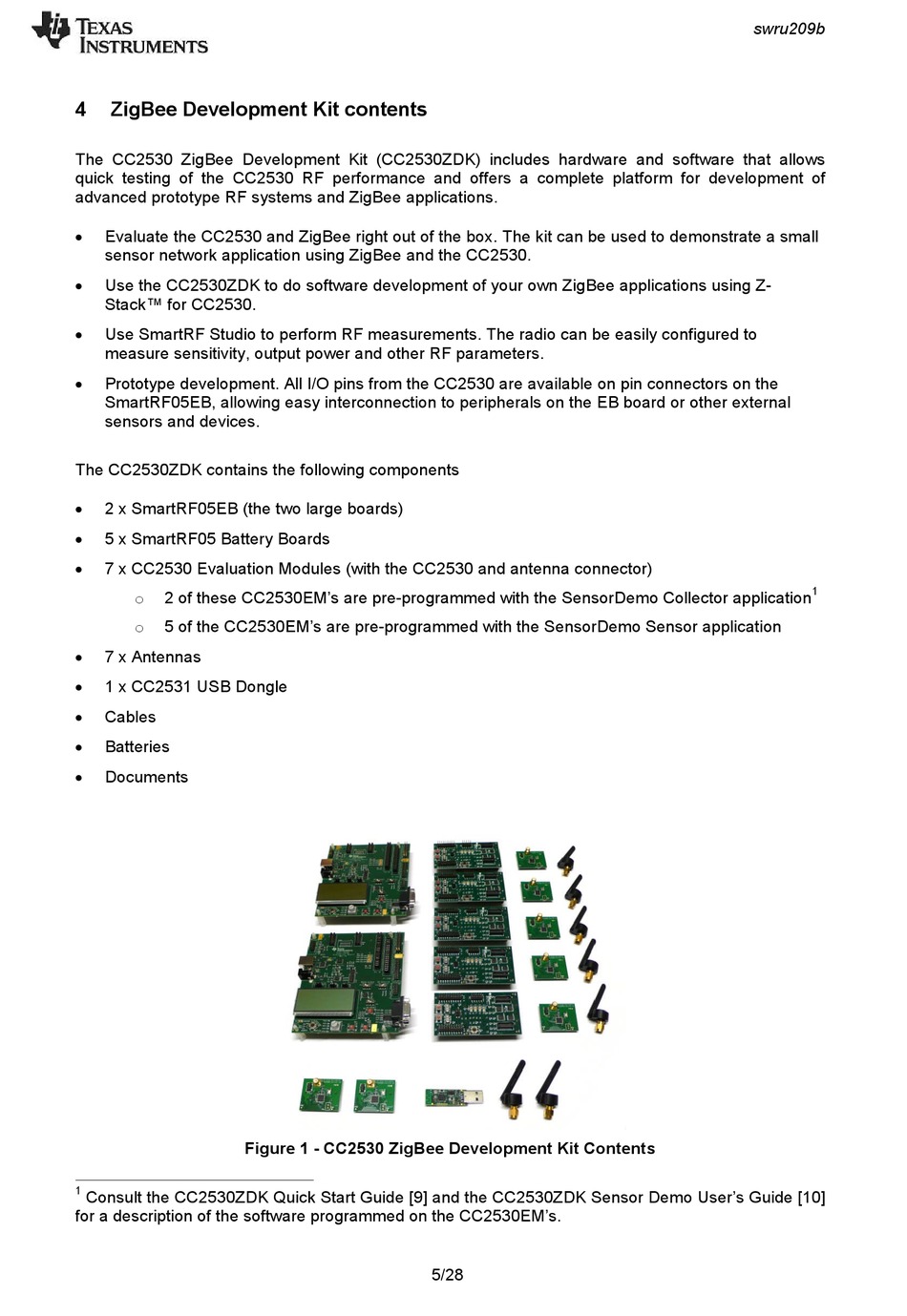

ZigBee Development Kit contents

The CC2530 ZigBee Development Kit (CC2530ZDK) includes hardware and software that allows
quick testing of the CC2530 RF performance and offers a complete platform for development of
advanced prototype RF systems and ZigBee applications.

Evaluate the CC2530 and ZigBee right out of the box. The kit can be used to demonstrate a small
sensor network application using ZigBee and the CC2530.

Use the CC2530ZDK to do software development of your own ZigBee applications using Z-
Stack™ for CC2530.

Use SmartRF Studio to perform RF measurements. The radio can be easily configured to
measure sensitivity, output power and other RF parameters.

Prototype development. All I/O pins from the CC2530 are available on pin connectors on the
SmartRF05EB, allowing easy interconnection to peripherals on the EB board or other external
sensors and devices.
The CC2530ZDK contains the following components

2 x SmartRF05EB (the two large boards)

5 x SmartRF05 Battery Boards

7 x CC2530 Evaluation Modules (with the CC2530 and antenna connector)
2 of these CC2530EM's are pre-programmed with the SensorDemo Collector application
o
5 of the CC2530EM's are pre-programmed with the SensorDemo Sensor application
o

7 x Antennas

1 x CC2531 USB Dongle

Cables

Batteries

Documents
Figure 1 - CC2530 ZigBee Development Kit Contents
1
Consult the CC2530ZDK Quick Start Guide [9] and the CC2530ZDK Sensor Demo User's Guide [10]
for a description of the software programmed on the CC2530EM's.
5/28
swru209b
1
