10 SmartRF05 Battery Board

EM
Connectors
LEDs
Probe
Connectors
Power
Switch
The SmartRF05 Battery Board is a smaller and simpler board than the SmartRF05EB. The Battery
Board can together with an EM be used as a standalone node. Figure 9 shows the SmartRF05 Battery
Board. The Battery Board is powered with 2 AA batteries placed in the battery connectors underneath
the board.
The peripherals that are available include 2 push buttons, a joystick with 5 directions and 4 LED's of
different colours that can be controlled via the EM.
There are 2 switches on the SmartRF05 Battery Board:

The Power switch P6 used to switch the board's power supply on/off.

The EM selection switch.
NB: The EM selection switch shall be placed in position SoC/TRX when using a SoC EM such as
CC2530EM or a transceiver EM is connected to the Battery Board.
The position MSP is used when the CCMSP-EM430F2618 board (not part of this kit) is connected. More
information about the EM Selection switch is found in section 10.3.
The following sections give the pin out of the different connectors on the SmartRF05 Battery Board.
Refer to the schematics (in the appendices) and layout (available on the web) for additional details.
Push
Buttons

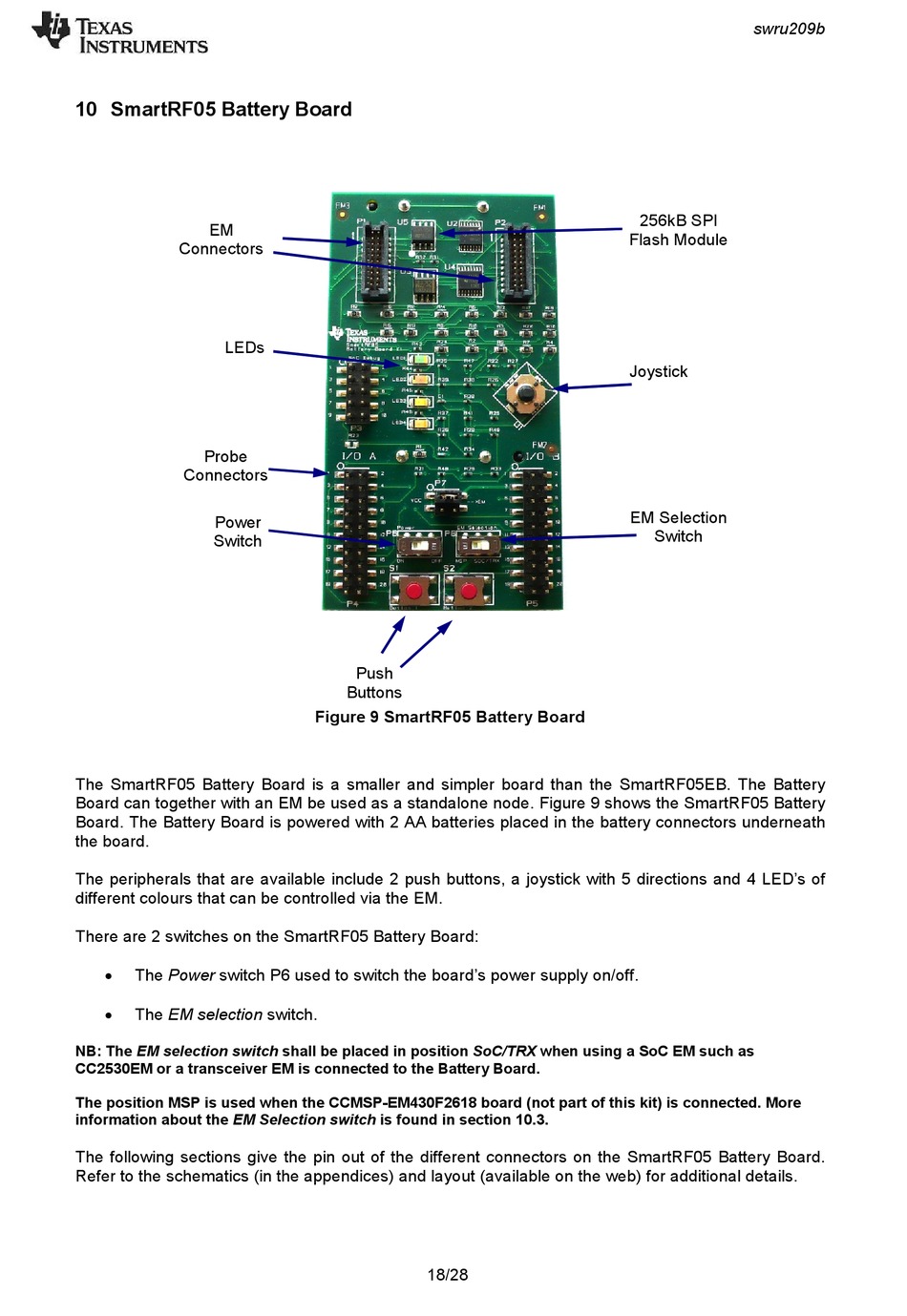

Figure 9 SmartRF05 Battery Board
18/28
swru209b
