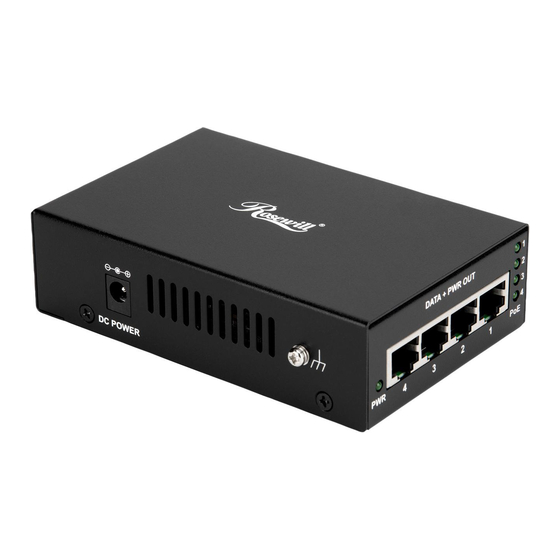

Rosewill RNWA-PoE-4065 Instruction Manual

Poe injector

Table of Contents

Download this manual

DEVICE LAYOUT

LED Indicator

PWR

PoE

(1-4)

Please read the instruction manual before use and retain for future reference.

DC POWER

Color

Status

Green

Off

Green

Off

RNWA-PoE-4065

Thank you for purchasing a Rosewill PoE Injector.

Operation

Ultra PoE Injector is on.

Ultra PoE Injector is off.

PoE function is enabled.

PoE function is disabled.

Table of Contents

Do you have a question about the RNWA-PoE-4065 and is the answer not in the manual?

Page 1 RNWA-PoE-4065 Thank you for purchasing a Rosewill PoE Injector. Please read the instruction manual before use and retain for future reference. DEVICE LAYOUT DC POWER LED INDICATORS LED Indicator Color Status Operation Ultra PoE Injector is on. Green Ultra PoE Injector is off.
Page 2 4. Ensure the PDs are on and all Ethernet cables are connected correctly and tightly. PACKAGE CONTENTS • 1 x RNWA-PoE-4065, 4-Port Gigabit Power over Ethernet (PoE) Injector Hub • 1 x 65 Watts Power Adapter • 1 x Power Cord •...
Page 3 PoE Device Network Switch 100 m GROUNDING (RECOMMENDED) RNWA-PoE-4065 provides ancillary grounding to enhance electrostatic discharge (ESD) protection. 1. Loosen the ground screw and secure a ground wire (not included) to the grounding point. 2. Secure the other end of the ground wire to a grounding block or other...
Page 4 PoE-4065 will not deliver power to the legacy device.This feature allows you to freely and safely mix legacy and PoE compatible devices on your network. Technical Support Information techsupport@rosewill.com 1-800-575-9885 Please register your product at www.rosewill.com for complete warranty information and support for your product. RNWA-PoE-4065_A...
