INSTALLATION INFORMATION

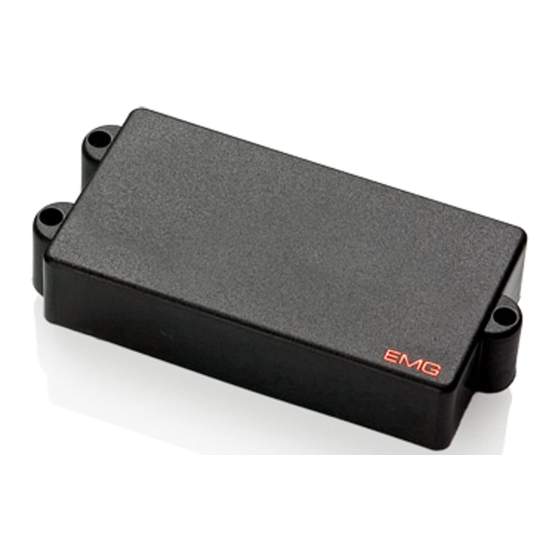

EMG MODEL: MMTW
SPECIFICATIONS:
Logo Color
Magnet Type*
Resonant Frequency (KHz)
Output Voltage (String)
Output Voltage (Strum)
Output Noise (60 Hz)
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
* Magnet Type CS (Ceramic and Steel)
Installation notes:
The EMG-MMTW has a variety of ways it can be wired into a bass. The diagrams included are limited to the most popular because of space.
The additon of the plug-on PC Board on the Push-Pull Pot adds further flexibility as you will see in the diagrams. We suggest you look fully at the
installation diagrams included in this sheet along with the B245 Pickup Buss data sheet included in this package before beginning your installation.
The Push-Pull Pot allows you 2 options as a volume control and 2 other options using the pot as a tone control. If you don't see a diagram that
fits your instrument directly, or you want to do something completely different, contact our technical department and we'll create a diagram you can
follow for your installation. Certain limitations apply...
Included with each pickup:
1 TONE CONTROL (25K)
.235
(6)
SPLIT
.390
.310
(8)
(10)
STEREO OUTPUT
JACK
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2014 Copyright EMG INC. All Rights Reserved.
MODEL:
MMTW
Single-Coil
Copper
C/S
3.50
1.00
3.00
-107
10
160
1500
27
1 TW P/P SWITCH
W/POT (25K)
MAXIMUM RECOMMENDED STRING WIDTH 2.50" (63.5)
.945
(24)
.125"(3.2) DIA. MOUNTING HOLES
.880
Dual-Coil
2.50
2.00
4.50
-107
10
In Dual-coil mode, coils L1 and L2 are active.
In Single-coil mode, coils L2 and L3 are active.
TW PICKUP CABLE 15" (38cm)
ADJUSTMENT SCREWS
2 CONNECT CABLES 5.5" (14cm)
OUTPUT CABLE 6" (15cm)
BATTERY
BUSS
BATTERY CABLE 7" (18cm)
- 9V +
3.500
(63.5)
2.900
(73.66)
R .250 TYP
(6.35)
1.900
(48.26)
3.700
R .250 TYP
(93.98)
(6.35)
.770
(19.56)
EMG-MMTW (SIDE VIEW)
L1 L2
L3
