GROUND
NECK P/U
OUTPUT
BRIDGE P/U

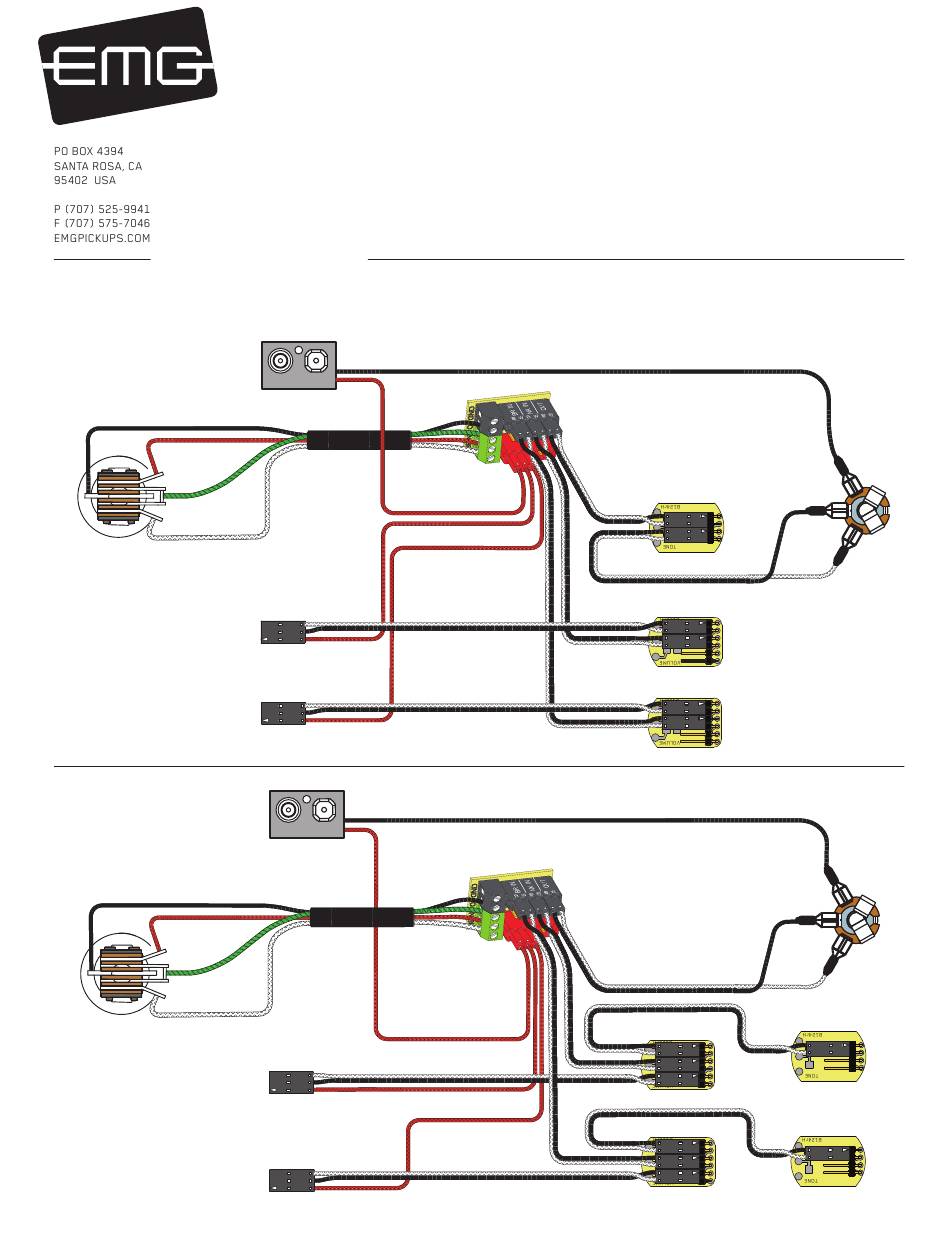

Diagram #1
2 Pickups
Toggle Style Switch
2 Volumes (Dependent)
Master Tone
GROUND
NECK P/U
OUTPUT
BRIDGE P/U
Diagram #2
2 Pickups
Toggle Style Switch
2 Volumes (Dependent)
2 Tones
© 2021 Copyright EMG INC. All Rights Reserved.
SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES
SEE PAGE 2 FOR WIRING WITH EMG SOLDERLESS TOGGLE SWITCHES
OR HARDWIRED 3-POSITION BLADE SWITCHES
OR HARDWIRED 3-POSITION BLADE SWITCHES
- 9V +
NECK PICKUP
BRIDGE PICKUP
- 9V +
FROM NECK PICKUP
FROM BRIDGE PICKUP
RED
RED
RED
RED
RED
RED
Installation INFORMATION

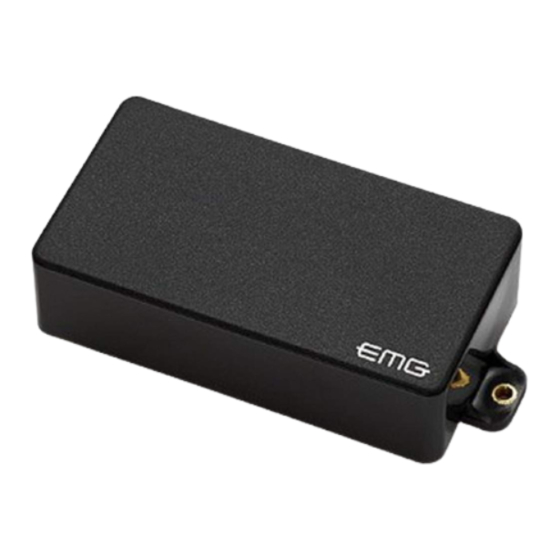

EMG MODELS: ACTIVE / ACTIVE
BATTERY
NEG (-)
MASTER
TONE
OUTPUT CABLE
NK VOLUME
BR VOLUME
BATTERY
NEG (-)
OUTPUT CABLE
NK VOLUME
BR VOLUME
R
S
T
R
S
T
NK TONE
BR TONE
