Supply Condition - vimec V64-74 B.I. Manual

7502116

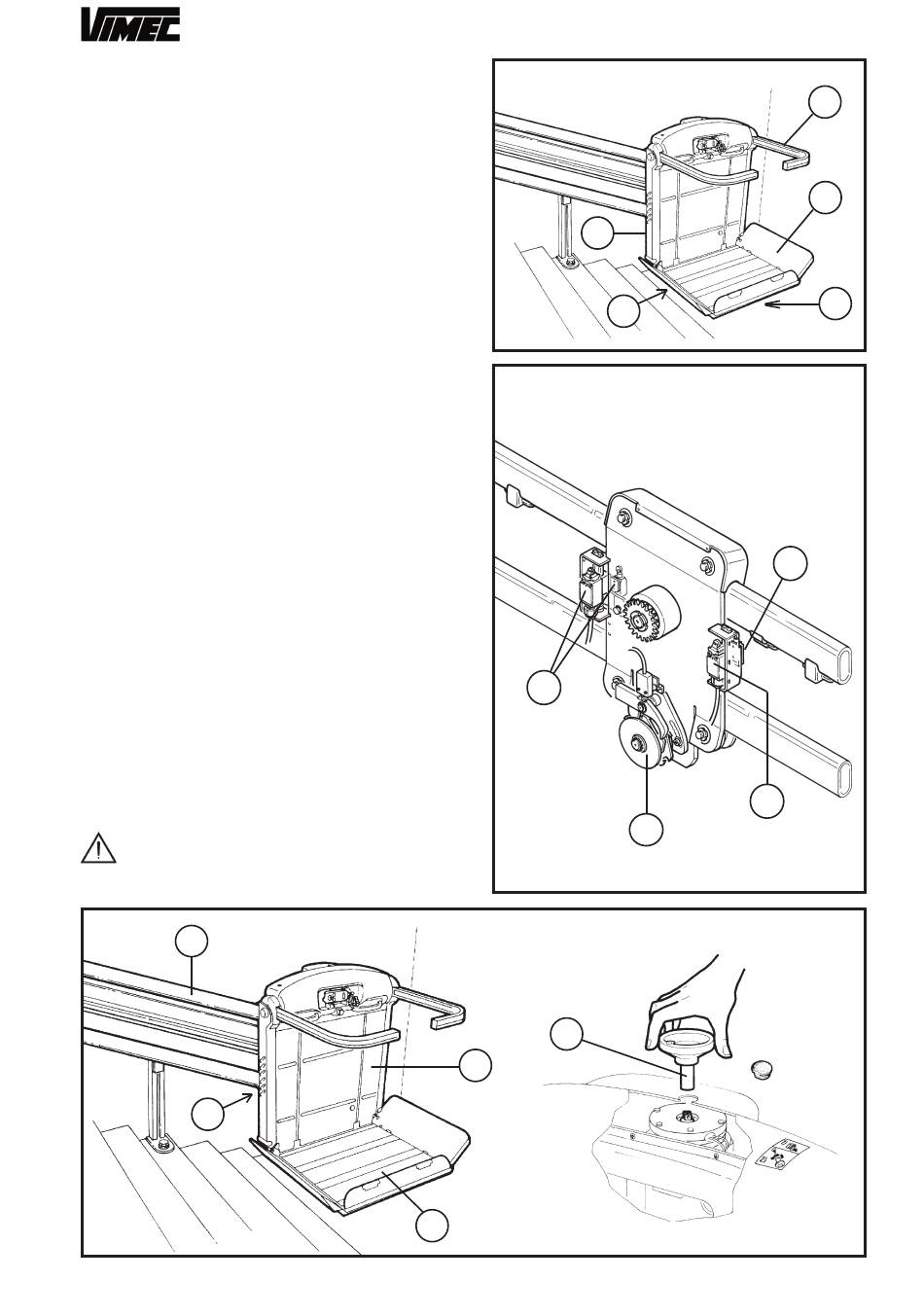

3.2) Main safety measures against risks of a mecha-
FIG.5
nical nature
a
- Safety bars - Fig. 5/a.
- Retailer guard boards - Fig. 5/b.
- Anti-impact and anti-shearing sensor edges on stairlift
body - Fig. 5/c.
b
- Anti-impact and anti-shearing sensor edges on pla-
tform - Fig. 5/d.
c
- Anti-crushing sensor base in platform - Fig. 5/e.
- Gradual action mechanical safety gear - Fig. 6/a.
- Electrical limit switches and over-limit stops - Fig.
6/b.
e
d
3.3) Main safety measures against risks of an
electrical nature
FIG.6
Protection against overcurrents, overloads, acci-
dental contacts and direct and indirect contacts.
- Circuit-breaker.
- Differential security breaker on power supply sy-
stem.
3.4) Warning and compulsory procedure signs and
data-plates
b
The stairlift is fitted with the following warning and
compulsory procedure signs and data-plates:
- Emergency switch must be pressed before operation
in manual mode - Fig. 2/e.
- Stairlift identification plate.
- Sign for manual release of bars and platform.
b

3.5) Supply condition

- Rails and rail connections - Fig. 7/a.
- Carriage - Fig. 6 Fig. 7/b.
- Lift structure.
- Platform - Fig. 7/c.
b
- Bodywork - Fig. 7/d.
a
- Handwheel for manual operation - Fig. 7/e.
The system must be installed by specialist
operators authorised by VIMEC.
FIG.7
a
e
d
b
c
6
