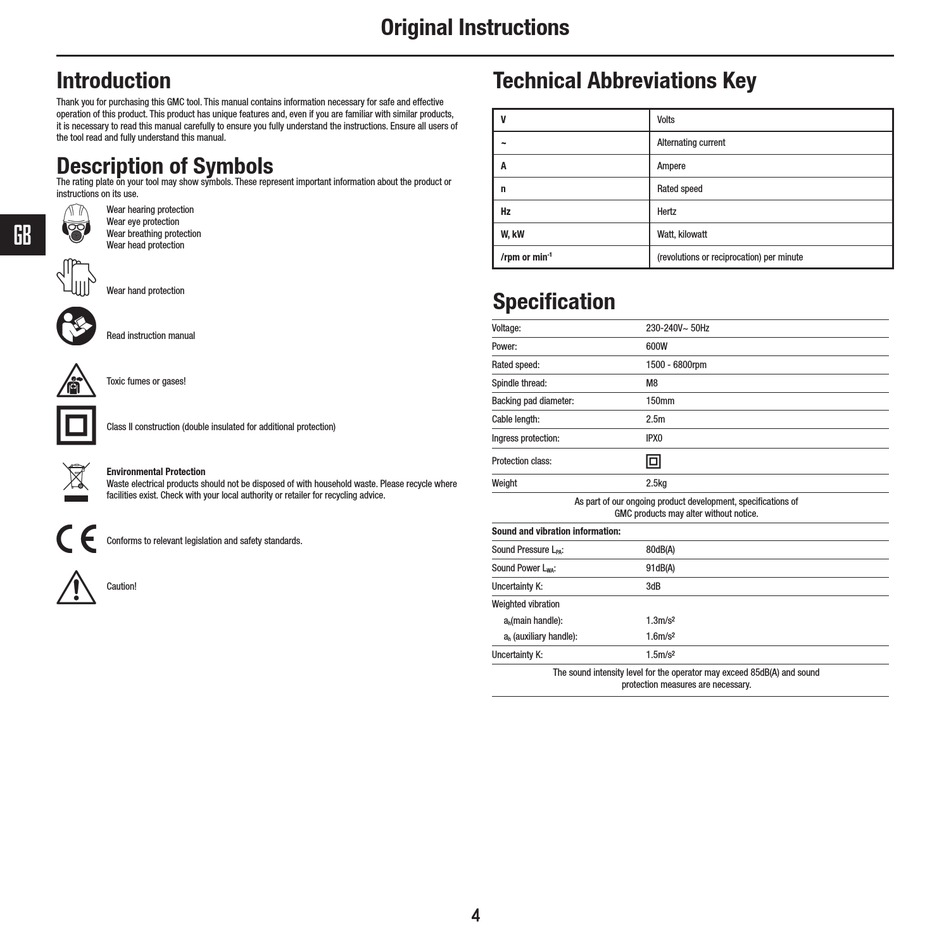

Description Of Symbols; Specification - GMC GPDA Original Instructions Manual

Introduction
Thank you for purchasing this GMC tool. This manual contains information necessary for safe and effective
operation of this product. This product has unique features and, even if you are familiar with similar products,
it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of
the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or
instructions on its use.
Wear hearing protection
Wear eye protection
GB
Wear breathing protection
Wear head protection
Wear hand protection
Read instruction manual
Toxic fumes or gases!
Class II construction (double insulated for additional protection)
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your local authority or retailer for recycling advice.
Conforms to relevant legislation and safety standards.
Caution!
Original Instructions
Technical Abbreviations Key
V
~
A
n
Hz
W, kW
/rpm or min
-1

Specification

Voltage:
Power:
Rated speed:
Spindle thread:
Backing pad diameter:
Cable length:
Ingress protection:
Protection class:
Weight
Sound and vibration information:
Sound Pressure L
PA
Sound Power L :
WA
Uncertainty K:
Weighted vibration
a (main handle):
h
a (auxiliary handle):
h
Uncertainty K:
The sound intensity level for the operator may exceed 85dB(A) and sound
4
Volts
Alternating current
Ampere
Rated speed
Hertz
Watt, kilowatt
(revolutions or reciprocation) per minute
230-240V~ 50Hz
600W
1500 - 6800rpm
M8
150mm
2.5m
IPX0
2.5kg
As part of our ongoing product development, specifications of
GMC products may alter without notice.
: 80dB(A)
91dB(A)
3dB
1.3m/s²
1.6m/s²
1.5m/s²
protection measures are necessary.
