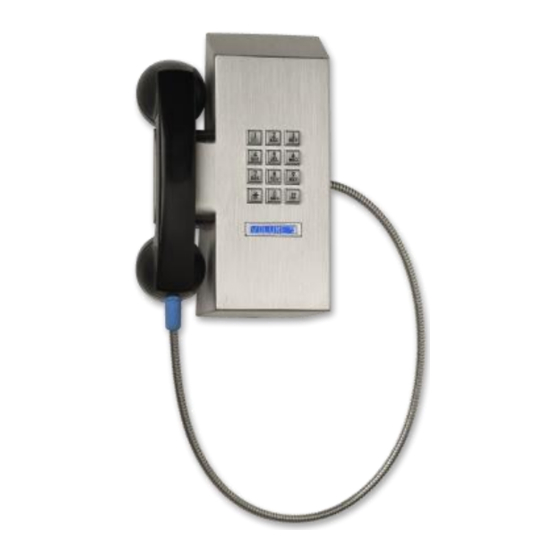

MODEL MHW-341-D
MAGNETIC HOOKSWITCH WALL
EQUIPPED WITH ATD-11 AUTOMATIC DIALER
Communication Equipment
& Engineering Company
SERVICE MANUAL
FOR
TELEPHONE
MHW-341-D-ATD-11-ISSUE4.0
Serving the Telephone Industry Since 1930
519 W South Park Street
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Related Manuals for CEECO MHW-341-D
Summary of Contents for CEECO MHW-341-D
- Page 1 MHW-341-D-ATD-11-ISSUE4.0 SERVICE MANUAL MODEL MHW-341-D MAGNETIC HOOKSWITCH WALL TELEPHONE EQUIPPED WITH ATD-11 AUTOMATIC DIALER Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
- Page 2 ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL MHW-341-D SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support.
-
Page 3: Table Of Contents
RECOMMENDED TOOLS AND TEST EQUIPMENT ........7 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....8 TESTING....................... 9 SPECIFICATIONS..................... 10 PARTS LIST ....................... 11 FCC NOTICE...................... 12 10.0 REPAIR AND RETURN INFORMATION............. 13 11.0 WARRANTY POLICY ..................14 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
GENERAL The CEECO Model MHW-341-D Magnetic Hookswitch Wall Telephone is equipped with a magnetically operated hookswitch. The MHW-341-D is designed for special applications where a telephone must be sturdy and attractive, and automatically dial a single number. It is equipped with an ATD-11 automatic tone dialer that will dial a single number of up to eleven (11) digits. -
Page 5: Programming
It is recommended that they be taped or otherwise secured somewhere nearby, within the device. Be sure each mini-jumper is properly positioned to make good contact and dial the intended number. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Diagram:programming Continued
ISSUE 4.0 PROGRAMMING DIAGRAM: CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
It is highly recommended to read section 6.0 at this point and pre-test the phone, prior to actual installation. RECOMMENDED TOOLS AND TEST EQUIPMENT Volt/Ohm Meter 1/4" Nut Driver Flat Blade Screw Driver Security Tool, CEECO Part Number 301-037 (sold separately) CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Installation Notes And Assembly Instructions
Run the inside station wire into the enclosure and terminate on the RJ11C terminal block inside. As depicted on the following page. The CEECO provided terminal block (jack) must be used, as it contains required over- voltage protection circuitry. -
Page 9: Testing
Hang up the phone. It is ready for use. If any problems were experienced, please refer back to section 3.0 and otherwise to section 10.2. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Specifications
20%-90% non-condensating PROGRAMMING: Via Hardware Matrix Switch TELEPHONE COVER: Brushed 16 ga. Stainless Steel MEMORY RETENTION: Hardware WEIGHT: Approximately 5 lb. RINGER EQUIVALENCY: 0.4A FCC REGISTRATION: BW-88T7-13716-TE-T UL LISTED NO.: 6OF5 TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
Network. 6017 Reed Switch. 14010 Modular Cord. 9023 1/4" –20-3/4" Security Screw. 9005 Grommet. 14014 Modular Jack. 9020 Security Tool. 8011 29" Armored Cord Handset with Switch Plate. 14018 Magnetic Assembly. 12017 Ringer. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 7.0 The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
10.3 NON-WARRANTY REPAIR: CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs for both directions. 10.4 RETURN FOR CREDIT: Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer's list price. -
Page 14: Warranty Policy
PRINTED CIRCUIT BOARDS Printed circuit boards should not be field repaired. If a unit is found to be faulty, replace it with another unit and return the faulty unit to CEECO for repair. Modifications by anyone other than CEECO will void the warranty.
