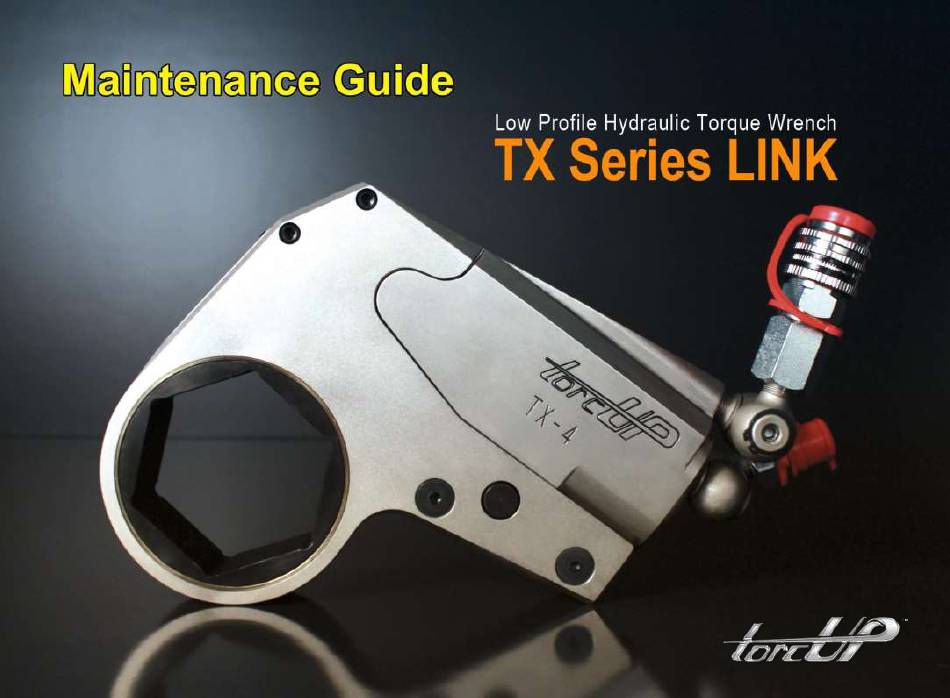

TorcUP TX LINK Series Maintenance Manual

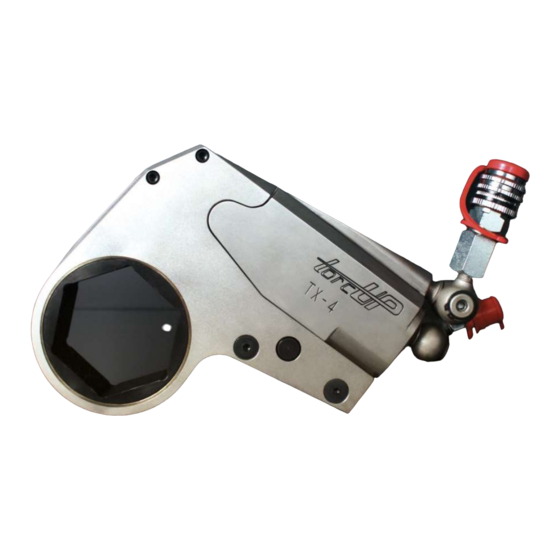

Low profile hydraulic torque wrench
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TX LINK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TorcUP TX LINK Series

Summary of Contents for TorcUP TX LINK Series

  • Page 2: Maintenance Supplies

    Maintenance Supplies 5/32” allen wrench 3/16” allen wrench TX Link Marine moly...
  • Page 3 Detach ratchet link from cylinder. Remove 1 lower spacer screw using 3/16” allen wrench...
  • Page 4 Remove 2 lower spacer screw using 3/16” allen wrench...
  • Page 5 Remove 1st upper spacer screw using 5/32” allen wrench...
  • Page 6 Remove 2nd upper spacer screw using 5/32” allen wrench...
  • Page 7 Remove ratchet link sideplate...
  • Page 8 Remove ratchet link sideplate Image shown illustrates factory assembly using Mobil 1 synthetic grease...
  • Page 9 Remove ratchet, drive plate and drive segment...
  • Page 10 Slide ratchet from drive plate Be aware of tension on segment spring to prohibit spring ejection...
  • Page 11 Separate drive segment from ratchet...
  • Page 12 Clean and inspect tool...
  • Page 13 Use marine grade moly lube Mobil 1 synthetic grease also suitable...
  • Page 14 Grease inside of drive plate...
  • Page 15 Grease inside of sideplate...
  • Page 16 Grease inside bronze sleeves...
  • Page 17 Grease inside of sideplate...
  • Page 18 Wrong Direction Correct Direction...
  • Page 19 Align ratchet and drive segment with drive plate...
  • Page 20 Insert drive segment spring and press into drive plate...
  • Page 21 Assembled drive plate and ratchet...
  • Page 22 Replace ratchet into side plate...
  • Page 23 Replace sideplate...
  • Page 24 Reinsert bottom space screws using a 3/16” allen wrench...
  • Page 25 Reinsert upper spacer screws using a 5/32” allen wrench...
  • Page 26 Grease sliders on TX cylinder. Grease drive plate surface. Install cylinder and link together for completed assembly...
  • Page 27 TX-1 Link Part Breakdown...
  • Page 28 Link Breakdown...
  • Page 29 TX Link Breakdown Note: For TX-45, reference TX-32 links...
  • Page 30 For additional questions please contact: TorcUP Inc. 1025 Conroy Place Easton, PA 18040 sales@torcup.com www.torcup.com TorcUP Inc. is not responsible for customer modification of tools for applications on which TorcUP Inc was not consulted. Refer to the tool manual for safety and regulations.
