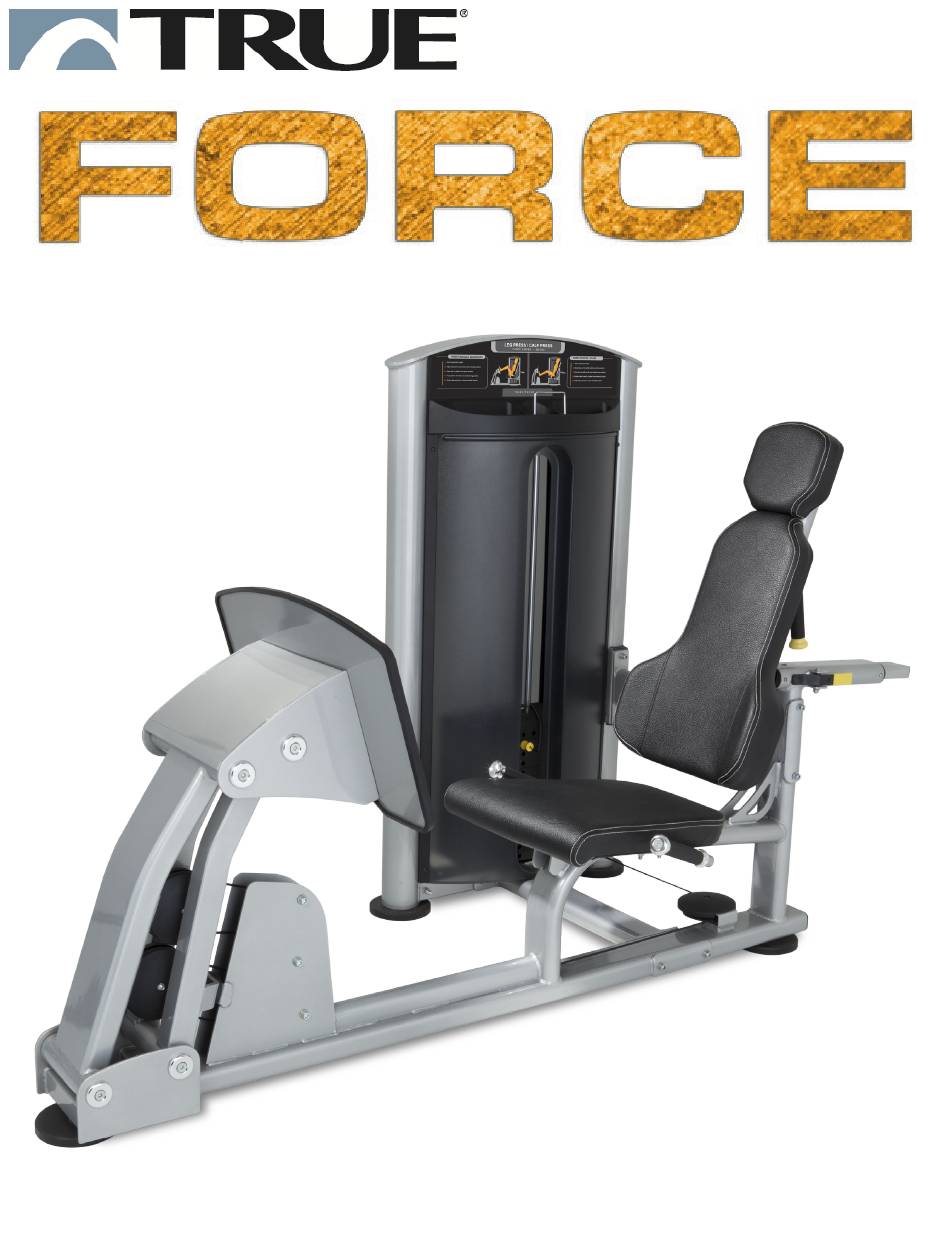

LEG/CALF PRESS
OWNER'S MANUAL
Model # SD1003
Revision 032317

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE SD1003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True FORCE SD1003

Summary of Contents for True FORCE SD1003

  • Page 1 *Assembly Guide & Warranty Card Included LEG/CALF PRESS OWNER’S MANUAL Model # SD1003 Revision 032317...
  • Page 2 FORCE STRENGTH OWNERS MANUAL IMPORTANT: All Products shown are prototype. Actual product delivered may vary. Product specifications, features & software are subject to change without notice. For the most up to date owner’s manual please visit www.truefitness.com. For documents in additional languages please visit www.truefitness.com/resources/document-library/ IMPORTANTE: Todos los productos mostrados son prototipos.
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of xtraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    FORCE STRENGTH OWNERS MANUAL TABLE OF CONTENTS: Chapter 1: Safety Instructions Chapter 5: Customer Service Safety Instructions Contacting Service Space Requirements Contacting Sales Working Dimensions Reporting Freight Claims or Parts Damage Warning Decals Chapter 6: Additional Information Proper Training Position Specification Sheet Chapter 2: Assembly Instructions Warranty Registration...

  • Page 5: Chapter 1: Safety Instructions

    *for additional information visit http://oehha.ca.gov/prop65 WARNING: Keep equipment stable on flat ground. True Fitness recommends for all strength equipment to be bolted down to the floor to avoid toppling during improper use. WARNING: Replace warning labels that may be worn, damaged or missing.
  • Page 6 • Never insert objects into any openings in this product. If an object should drop inside, carefully retrieve it. If the item cannot be reached, contact TRUE Customer Service. • Never place liquids of any type directly on the unit except in the accessory tray or bottle holders. Containers with lids are recommended.

  • Page 7: Space Requirements

    SPACE REQUIREMENTS: TRUE’s recommendation is to leave a 40” (1.0m) safety zone on all sides of the unit. Additionally for Functional Trainers there should be enough room left for full extension of all cable in all directions. (See Fig 1)

  • Page 8: Warning Decals

    WARNING DECALS: WARNING: Replace warning labels that may be worn, damaged or missing. *To replace any worn or missing warning decals contact TRUE FITNESS by one of the following: www.truefitness.com or contact customer service at 800-883-8783. Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 9: Proper Training Position

    CHAPTER 1: SAFETY INSTRUCTIONS PROPER TRAINING POSITION: Target Muscles: Quadriceps: A. Select appropriate weight B. Adjust back pad to desired bent knee starting position. C. Place feet on platform and grasp handles D. Push platform forward to an extended leg position. E.
  • Page 10 Please use the various lists in this manual to make sure that all parts have been included in your shipment. • When ordering, use part number and description from the lists. Use only True Fitness replacement part when servicing. Failure to do so will void your warranty and could result in personal injury or damage your machine.

  • Page 11: Pre-Assembly Checklist

    CHAPTER 2: ASSEMBLY GUIDE PRE-ASSEMBLY CHECKLIST: Box One Contents: Item No. Description QTY. Upright Assembly Front Right Shroud Retainer Plate Front Left Shroud Retainer Plate Right Shroud Retainer Plate Left Shroud Retainer Plate Stabilizer Foot Shield Support Frame Bottom Support Plates Seat Pad Back Pad Head Pad...
  • Page 12 CHAPTER 2: ASSEMBLY GUIDE PRE-ASSEMBLY CHECKLIST: Box Two Contents: Item No. Description QTY. Main Frame Front Sway Arm Back Sway Arm Connection Frame Handlebar Adjustment Tube Bottom Cross Brace Rear Cross Brace Footplate Back Pad Support Fixed Seat Pad Plate Adjustable Foot Plates Cable Pivot Axles 25.4 x 222...
  • Page 13 CHAPTER 2: ASSEMBLY GUIDE PRE-ASSEMBLY CHECKLIST: Box Three Contents: Item No. Description QTY. Accessory Tray Placard Frame Rear Shroud Cap Rear Shroud Front Shroud Weight Plate Cartons: Weight Plates are packaged (4) per box. The shipment should contain (4) Boxes of weight plates for a total of 16 weight plates.
  • Page 14 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS: STEP 1 Frame Assembly: ITEM Description 1. Attach two adjustable foot pads to the Socket Head Cap Screw M10 x 20 bottom of the Upright Assembly. Socket Head Cap Screw M10 x 100 Flat Washer 11 x 20 x 2 2.
  • Page 15 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 2 Main Frame Assembly: ITEM Description 1. Attach two adjustable foot pads to the bottom Socket Head Cap Screw M10 x 140 of the Main Frame. Socket Head Cap Screw M10 x 135 Flat Washer 11 x 20 x 2 2.
  • Page 16 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 3 Handle Bar: ITEM Description 1. Install the Handle Bar as shown. Hexagon Socket Button Head Screw M10 x 65 Socket Head Cap Screw M10 x 130 Flat Washer 11 x 20 x 2 M10 Nylon Lock Nut Handle Bar 53 58...
  • Page 17 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 4 Back Pad Support & Adjustment Tube: ITEM Description 1. Install the Back Pad Support and Hexagon Socket Button Head Screw M10 x 65 Adjustment Tube as shown. Flat Washer 11 x 20 x 2 M10 Nylon Lock Nut Back Pad Support Adjustment Tube...
  • Page 18 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 5 Fixed Seat Pad Plate: ITEM Description 1. Install the Fixed Seat Pad Plate as shown. Flat head Cap Screw M10 x 25 Flat Washer 11 x 20 x 2 M10 Nylon Lock Nut Upright Assembly Fixed Seat Pad Plate Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 19 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 6 Foot Press Assembly: ITEM Description 1. Assemble the Foot Press Assembly as shown Pivot Axle 25.4 x 222 below. Pivot Axle 24.4 x 332 Aluminum Cap 50 x 10.5 x 8 Flat Head Cap Screw M10 x 25 Flat Washer 13 x 24 x 2.5 Nylon Lock Nut M12...
  • Page 20 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 7 Front Shroud Retainer Plates: ITEM Description 1. Attach the Front Shroud Retainer Plates to the Phillips Flat Head Screw M5 x 16 Upright Assembly as shown. Upright Assembly Shroud Retainer Plate Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 21 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 8 Lower Support Plates: ITEM Description 1. Install the Lower Support Plates as shown. Hexagon Socket Button Head Screw M5 x 16 Flat Washer 6.6 x 12 x 1.6 Lock Washer #6 Lower Support Plates Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 22 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 9A Weight Stack Assembly: ITEM Description 1. Assemble and install the Weight Stack as Rubber Weight Bumper shown below. Rubber Plug M8 x 30 Socket Head Cap Screw Flat Washer 9 x 16 x 1.6 #8 Lock Washer Upright Assembly Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 23 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 9B Weight Stack Assembly: 1. Secure the top plate selector bar Item Part Number Description Quantity to the top weight plate using the SD0239 FLAT WASHER identified hardware. SD0084 LOCK NUT M10 C1037 HH SCREW M10 X 170MM Note: This will create a minimum...
  • Page 24 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 10 Cable Routing: 1. Route the Cable as shown. CAUTION 2. Verify that no more than 1 inch A minimum of 1/2 inch (12.7mm) of the threaded portion of (25mm) of the cable bolt threads are left exposed. the cable bolt must be threaded into the top plate.
  • Page 25 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 11 Shield Support Frame: ITEM Description 1. Attach the Shield Support Frame to the Hexagon Socket button Head Screw M6 x 20 Upright Assembly as shown. Flat Washer 6.6 x 12 x 1.6 Lock Washer #6 Shield Support Frame...
  • Page 26 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 12 Rear Shroud Retainer Plates: ITEM Description 1. Attach the Rear Shroud Retainer Plates to the Phillips Flat Head Screw M5 x 16 Upright Assembly as shown. Rear Shroud Retainer Plates Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 27 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 13 Seat Pad: ITEM Description 1. Attach the Seat Pad as shown. Socket Head Cap Screw M10 x 30 Flat Washer 11 x 20 x 2 Seat Pad Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 28 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 14 Head & Back Pads: ITEM Description 1. Install the Head and Back Pads as shown Socket Head Cap Screw M10 x 30 below. Flat Washer 11 x 20 x 2 Head Pad Back Pad Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 29 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 15 Placard Frame: ITEM Description 1. Attach the Placard Frame to the Upright Button Fastener Assembly as shown. Phillips Flat Head Screw M5 x 16 Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 30 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 16 Front Shroud: ITEM Description 1. Attach the Front Shroud to the Upright Hexagon Socket Button Head Screw M5 x 16 Assembly as shown. Flat Washer 6.6 x 12 x 1.6 Upright Assembly Front Shroud Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 31 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 17 Accessory Tray: 1. Secure the Accessory Tray to the Placard Frame by snapping it into place and pushing down. Accessory Tray Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 32 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 18 Rear Shroud: ITEM Description 1. Slide the Rear Shroud down into the Rear Hexagon Socket Button head Screw M5 x 16 Shroud Supports. Flat Washer 6.6 x 12 x 1.6 2.
  • Page 33 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 19 Rear Shroud Cap: ITEM Description 1. Install the Rear Shroud Cap. Hexagon Socket Button Head Screw M5 x 16 Flat Washer 6.6 x 12 x 1.6 Rear Shroud Cap Truefitness.com / 800.426.6570 / 636.272.7100...
  • Page 34 CHAPTER 2: ASSEMBLY GUIDE UNIT ASSEMBLY STEPS (continued): STEP 20 Selector Pin: 1. Install the weight stack selector pin and attach to the weight cable. Selector Pin Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 35: Chapter 3: Product Overview

    CHAPTER 3: PRODUCT OVERVIEW PRODUCT OVERVIEW: Weight Stack Selector Pin Back Pad Adjustment Lever Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 36: Chapter 4: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 37: Other Scheduled Preventive Maintenance

    CAUTION Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 38: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 39 CHAPTER 4: CARE & MAINTENANCE CABLE INSPECTION & MAINTENANCE (continued): Cable Tension: Ensure that the cables are adjusted to remove any slack using the threaded end fittings. These are normally located at the weight stack connection. Depending upon the machine, there may be multiple threaded fitting on multiple cables. You can determine if there is too much slack by performing the exercise.

  • Page 40: Chapter 5: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE Products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 41: Reporting Freight Claims Or Parts Damage

    Severe Damage: Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused.
  • Page 42 From the ratcheting seat adjustment, fully enclosed weight stack, seat-back lumbar wings, and stability feet to prevent tipping, TRUE has addressed it all with the Leg/Calf Press machine from the new FORCE strength series. This machine enhances any facility with its ultra-sleek and stylish appearance and will exude sophistication in any setting.
  • Page 43 TRUE is Impacting Fitness.    T RUE has a thirty-four year history making the world’s most premium cardio equipment.    Now, we are taking that same manufacturing and design quality and bringing it to you in the new FORCE strength line.    All of the features you have come to associate with TRUE are found in the FORCE line…quality, durability, craftsmanship and superior aesthetics.  ...

  • Page 44: Chapter 6: Additional Information

    Product. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 45 NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.

  • Page 46: Warranty Registration

    If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
