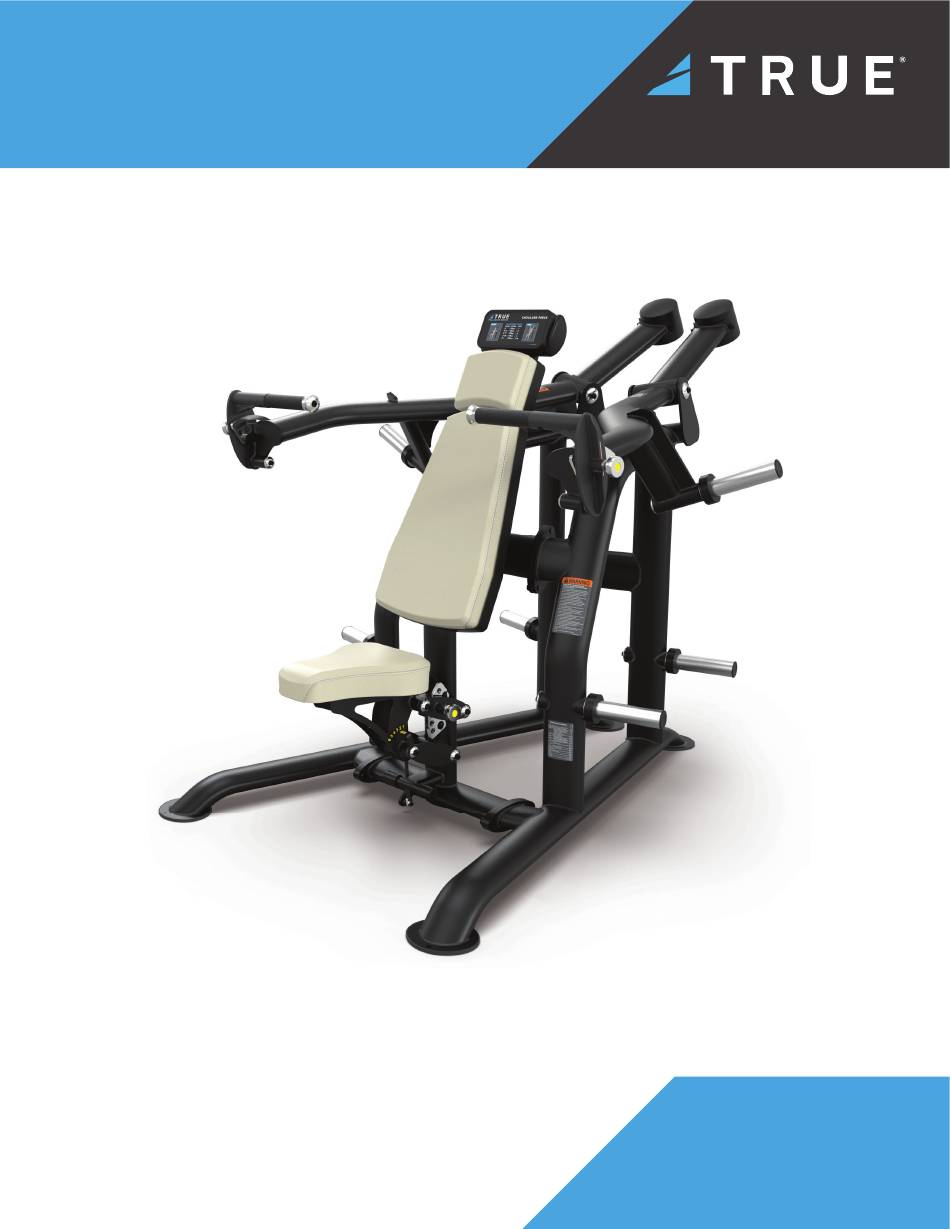

PLS0200
SHOULDER PRESS
MODEL PLS0200
(MAN-PLS0200 REV01)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLS0200 and is the answer not in the manual?

Questions and answers

Related Manuals for True PLS0200

Summary of Contents for True PLS0200

  • Page 1 PLS0200 SHOULDER PRESS OWNER’S MANUAL MODEL PLS0200 (MAN-PLS0200 REV01)
  • Page 2 Alle hier gezeigten Produkte sind Prototypen. Das tatsächliche Produkt ausgeliefert wird, kann variieren. Produkt- Spezifi kationen, Funktionen und Software können sich ohne vorherige Ankündigung ändern. In den meisten Fällen bis zu Bedienungsanleitung Bisher besuchen und für Dokumente in weiteren Sprachen fi nden Sie unter https://truefi tness.com/ support/user-manuals/ BELANGRIJK! Alle getoonde producten zijn prototype.
  • Page 3 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 4 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to fi le a claim if the carrier is not notifi ed in a timely manner.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................6 GENERAL CARE AND MAINTENANCE..........................8 COMMERCIAL MAINTENANCE SCHEDULE........................9 COMPLIANCES..................................9 DIMENSIONS AND WEIGHTS.............................10 LABEL LOCATIONS................................11 WARNING AND INTENDED USE LABELS...........................11 ASSEMBLY INSTRUCTIONS PREASSEMBLY CHECKLIST..............................13 ASSEMBLY STEPS................................15 PREVENTATIVE MAINTENANCE DAILY INSPECTION AND MAINTENANCE...........................23 WEEKLY INSPECTION AND MAINTENANCE........................23 OTHER SCHEDULED PREVENTATIVE MAINTENANCE....................23 CLEANING THE EQUIPMENT.............................24...

  • Page 6: Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 7 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at fi rst signs of wear. Use only TRUE supplied components. ● Replace any warning label at the fi rst sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 8: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefi tness.com // 800.883.8783).

  • Page 9: Commercial Maintenance Schedule

    Clean and condition upholstery. Clean and polish frame. Clean and polish chrome. Lubricate pivot bearings and linear bearings. Replace cables if equipped. COMPLIANCES This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truefi tness.com.

  • Page 10: Dimensions And Weights

    DIMENSIONS AND WEIGHTS ● ASSEMBLED DIMENSIONS (W X D X H) 60" x 72” x 56.5” / 152.4 cm x 182.9 cm x 143.5 cm HEIGHT 56.5" 143.5 cm DEPTH WIDTH 72” 60” 182.9 cm 152.4 cm ● PRODUCT WEIGHT 407 lbs / 184.6 kg ●...

  • Page 11: Label Locations

    SPL-00-LBLSN (Serial Number) WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefi tness.com // 800.883.8783). Description Image LBL-ADJ-SPL013 (Adjustment Knob) LBL-ADJ-SPL010 (Adjustment Arrow)
  • Page 12 LBL-ADJ-PLS027 (Seat Adjustment) LBL-WRN-PLS003 (Plate Weight) B2065 (Pop Pin Warning) LBL-PRO-PLS200 (Placard) LBL-WRN-PLS001 (General Warning) LBL-MTN-PLS001 (Maintenance) LBL-LOG-010BK (Logo) SPL-00-LBLSN (Serial Number) TRUE FITNESS TECHNOLOGY, INC 865 HOFF RD, ST LOUIS MISSOURI 63366 USA MODEL NO: PLS0200 SERIAL NO: 23-PLS020001X...

  • Page 13: Assembly Instructions

    DO NOT use a box cutter. DO NOT slice into the packaging. VERIFY BOX CONTENTS IMPORTANT! Please verify all box contents. If you have questions, or if there are any missing parts, contact product support (service@truefi tness.com // 800.883.8783). TOOLS NEEDED FOR ASSEMBLY Wire Cutters or Scissors...
  • Page 14 BOX CONTENTS BOX CONTENTS Item Image Item Image Left Arm Assembly Center Frame Assembly Seat Assembly Active Weight Post Assemblies (Long) Storage Weight Right Side Frame Post Assemblies Assembly (Short) Seat Pad Assembly Back Pad Assembly Left Side Frame Assembly Head Pad Assembly Pad Kit Hardware...

  • Page 15: Assembly Steps

    DESCRIPTION PLS-02-MFR520X ASSEMBLY, PLS0200 MAINFRAME LEFT PLS-02-MFR570X ASSEMBLY, PLS0200 MAINFRAME RIGHT PLS-02-MFR330X ASSEMBLY, CTR PLS0200 SEAT FRAME C 640A SHCS, 1/2"-13 X 1", BLK C 750B LOCK WASHER, 1/2MED.SPLIT, BLACK BED 1. Remove and set aside the ten preassembled socket 2.
  • Page 16 STEP 1—ASSEMBLE FRAME CONTINUED 3. Using two people, carefully line up the right and left 4. When all ten socket head cap screws and lock main frame assemblies with the center seat frame washers are fi nger tight, use a 3/8" allen wrench to assembly and fi...
  • Page 17 STEP 2—ASSEMBLE SEAT TO SEAT FRAME ASSEMBLY Tools Used in this Step Parts Used in this Step Wire Cutters ITEM PART# DESCRIPTION PLS-02-MFR330X CENTER SEAT FRAME ASSEMBLY PLS-00-ADJ110X ASSEMBLY, FOUR BAR LINK SEAT ADJUSTMENT PLS-00-ADJ210X ASSEMBLY, SEAT ADJUSTMENT ARC 5/32", 5/16", and PLS-00-SFR260X ASSEMBLY, PLS SEAT FRAME 3/8"...
  • Page 18 STEP 2—ASSEMBLE SEAT TO SEAT FRAME ASSEMBLY CONTINUED 1. Using a 3/8" allen wrench, secure the seat 5. Line up fl at edge of the axle with the fl at edge of the adjustment arc assembly to the seat frame assembly frame/shaft and using a rubber mallet, lightly tap the using two socket head cap screws, lock washers, axle into the shaft.
  • Page 19 STEP 3—ATTACH PADS TO SEAT FRAME Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS0100 PAD KIT PAD KIT PLS0100 PAD KIT HARDWARE C 635 SHCS, 3/8"-16 X 3-3/4'" C 749B LOCK WASHER, 3/8", BLK ZP C 754B WASHER, FLAT, 3/8"...
  • Page 20 STEP 4—ATTACH ARMS Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS-02-ARM230X ASSEMBLY, PLS0200 USER LEFT ARM PLS-02-ARM280X ASSEMBLY, PLS0200 USER RIGHT ARM PLS-01-AXL001 AXLE, PIVOT PLS-00-CAP005 ALM BOLT CAP Rubber Mallet C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 21 STEP 5—ATTACH WEIGHT POST ASSEMBLIES Tools Used in this Step Parts Used in this Step 5/16" Allen Wrench PART# DESCRIPTION PLS-00-PST000X ASSEMBLY, PLS WEIGHT HORN (ACTIVE-LONG) PLS-00-PST030X ASSEMBLY, WEIGHT HORN (STORAGE-SHORT) PLS-00-CAP005 ALM BOLT CAP C 749B LOCK WASHER, 3/8", BLK ZP C 622A SHCS, 3/8"-16 X 3/4"...
  • Page 22 STEP 6—VERIFY ALL ADJUSTMENTS FUNCTION AS INTENDED Pull the pop pin out and place it into each of the adjustment holes for both the right and left arms and the seat assembly. NOTE: The arms have four adjustment holes, the seat has six. IMPORTANT! Verify the pin inserts in and out of each hole completely.

  • Page 23: Preventative Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 24: Cleaning The Equipment

    Shrouds—Use a mild soap solution to clean dirt and grease marks. CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 25: Warranty Information

    *This limited warranty on the structural frame does not purchaser and the parts of the TRUE product (the include paint or coatings. The frame is defi ned as the “Product”) listed below, under normal use and service,...
  • Page 26 PLS0200 LIMITED WARRANTY Save Time and Register Online! Activate Multiple Warranties at truefi tness.com THE TRUE LIMITED WARRANTY IS SUBJECT TO AND WILL BE IN ACCORDANCE WITH THE CONDITIONS SET FORTH BELOW: This limited warranty is valid for the United States and 13.
  • Page 27 SERIAL NO: 23-PLSXX00000 Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefi tness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 28 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
