Rola 59505 Installation Instructions

Please read all instructions carefully before assembly, installation and/or use of this product.
WARNING: The Maximum basket content weight capacity is 130 pounds (60 Kg).
DO NOT EXCEED the lowest of vehicle manufacturer's cross bar rating or basket content weight limit
of 130 pounds (60 Kg).
WARNING: Not for transport of people, animals, or flammable liquids.
WARNING: Distribute your load evenly inside the basket.
WARNING: Securely fasten load to cargo basket. Make sure all bolts, screws, straps and plastic knobs are firmly
attached before every trip and check regularly during the trip.
WARNING: Check security of all cargo basket attachments and load at fuel and rest stops.
WARNING: Check for clearance between sunroof and cargo basket before operating sunroof. (if equipped)
WARNING: Do not carry any loads wider than your vehicle.
WARNING: Do not drill or weld to this product.
Vehicle Manufacturer's cross bar rating
PART
A Basket Extension
B Screw, #10-32 (Self Tapping)
1
Product Name:
LOAD RATING LIMITS:
-
PARTS LIST:
DESCRIPTION

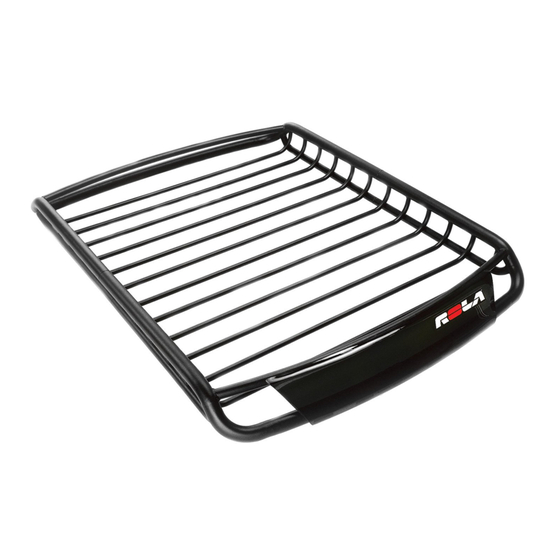

SHOWN ASSEMBLED
(B)
Roof Top Carrier Extension
Product Code:
Basket Weight with Extension (50 Lbs.)
QTY.
1
8
ASSEMBLE CARGO BASKET
NOTE: FOR COMPLETE ASSEMBLY
IF YOU ALREADY HAVE THE 59504
•
•
•
•
(A)
59505
=
Weight Limit
TOOLS REQUIRED:
Phillips Screwdriver
Tape Measure
EXTENSION
AND INSTALLATION STEPS,
REFER TO 59504 INSTRUCTIONS.
BASKET CARRIER INSTALLED:
Remove basket from your vehicle.
Separate the two halves of basket
by removing the four screws at the
joints.
Insert the basket extension.
Install the eight (8) self-tapping
screws into the existing holes, four
(4) per side as shown.
Basket
