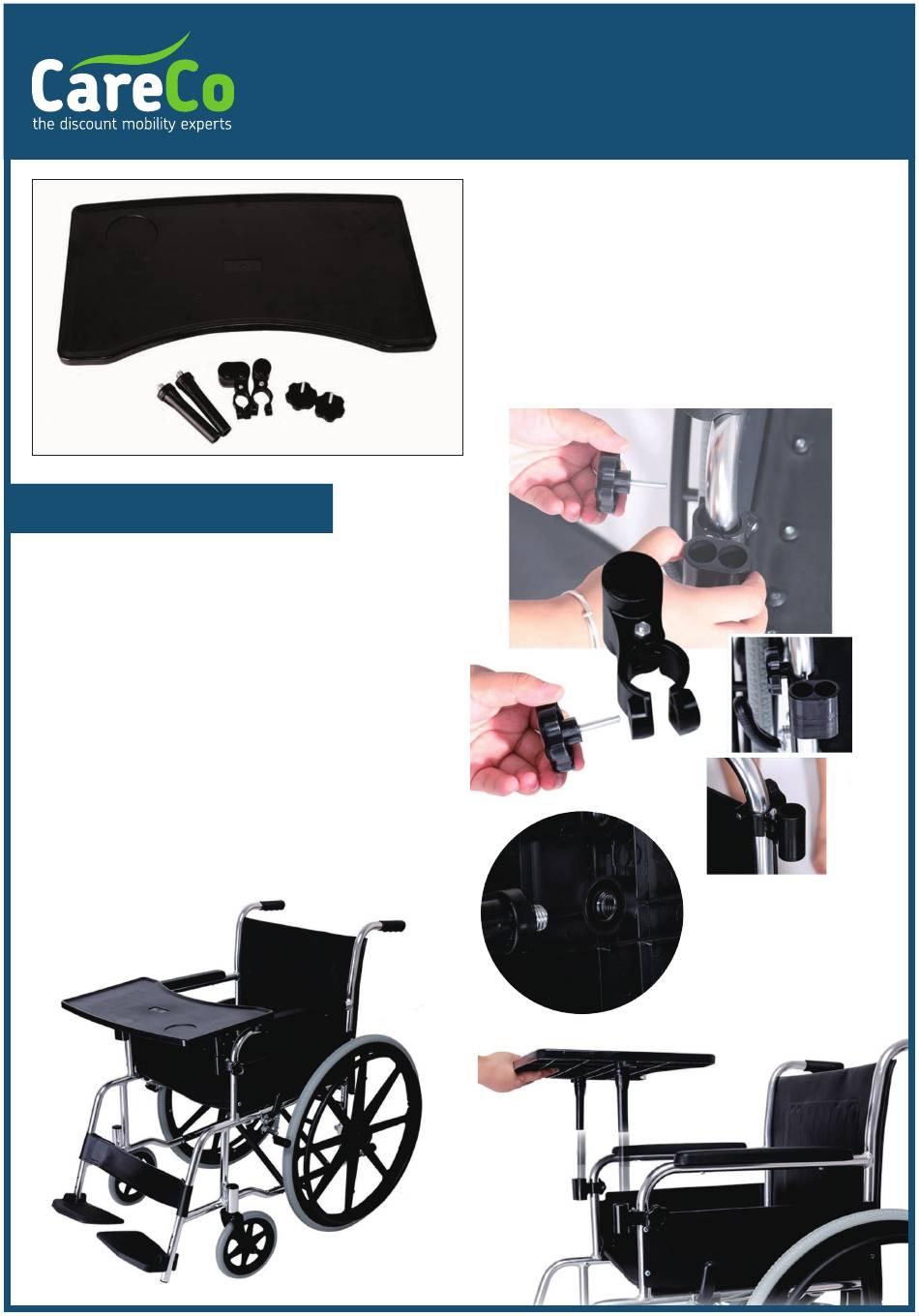

CareCo WC06121 Service Manual

2.

How to fit:

1. Use the hexagon screws to attach the shackle
to the armrest tube of the wheelchair. NOTE:
The shackle with two holes is for the right side
of the wheelchair armrest, the shackle with
one hole is for the left side of the wheelchair
armrest.
2. Attach the leg to the service place as shown in
the image.
3. Secure service plate in place using the
shackles.
4. The tray can be fixed onto wheelchair with
different seat widths, by pulling the bracket
forward or backward until the tray is place in a
best position - please refer to relevant images.
1.
4.
3.

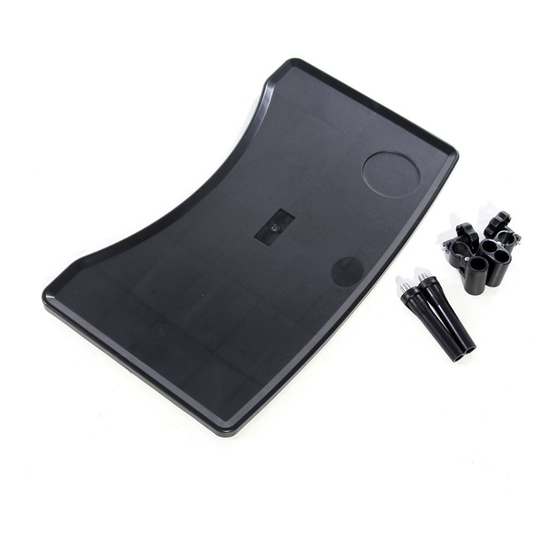

WC06121 - Wheelchair tray
1. Service Plate
2. Leg x 2
3. Shackle with 2 holes
(for left and right side of the wheelchair)
4. Hexagon Screws x 2
1.
2.
3.
