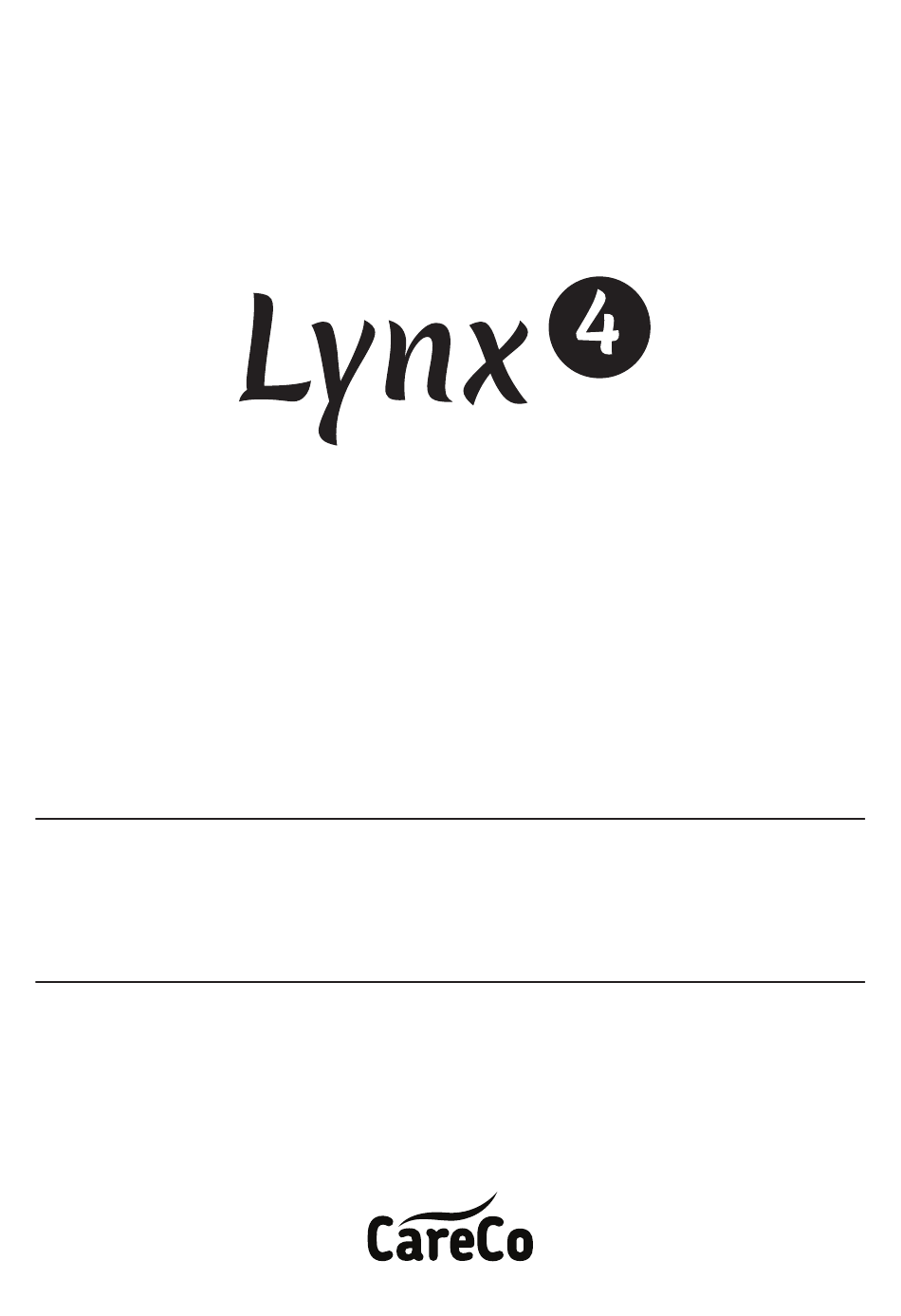

- Page 1 Wh eelc ha i r U S E R M A N U A L W C 0 2 0 6 3 P ROD U C T CO D E C AR ECO (UK) LTD , H UBER T RO AD , B RE N TW OO D , E S S E X , C M1 4 4 J E...
-
Page 2: Table Of Contents
CONTENTS 1. WHEELCHAIR COMPONENTS 2. SWINGING THE FOOTRESTS TO THE SIDE AND LOCKING THEM FORWARD 3. APPLYING THE BRAKES ON AND OFF 4. TAKING THE FOOTRESTS OFF AND PUTTING THE FOOTRESTS ON 5. ADJUSTING THE FOOTREST LENGTH 6. FOLDING AND OPENING THE WHEELCHAIR 7. -
Page 3: Wheelchair Components
1. WHEELCHAIR COMPONENTS Parts Description 1. Push handles 5. Caster 2. Back upholstery 6. Armrest 3. Brake handle 7. Footrest 4. Cross-brace 8. Footplate PA GE... -
Page 4: Swinging The Footrests To The Side And Locking Them Forward
2. SWINGING THE FOOTRESTS TO THE SIDE AND LOCKING THEM FORWARD To swing-away the footrests, press the lever (1) To lock forward push back into transport position (2) Remember To help prevent falls, swing away the footrests before transferring in or out of the chair... -
Page 5: Applying The Brakes On And Off
3. APPLYING THE BRAKES ON AND OFF Pull the brake handle back to lock and push the handle forward to release (1 & 2) Remember To apply the brakes before getting in or out of the chair PA GE... -
Page 6: Taking The Footrests Off And Putting The Footrests On
4. TAKING THE FOOTRESTS OFF AND PUTTING THE FOOTRESTS ON Swing the footrest to the side by releasing the lever (1) Grab a hold of the top of the footrest and click up (2), releasing the footrests from the pins. Repeat on the other side. Holding the footrest in one hand, from the side align the pins with the holes in the footrest and attach (3) Swing footrest back in place... -
Page 7: Adjusting The Footrest Length
5. ADJUSTING THE FOOTREST LENGTH Remove the footrest from the wheelchair. Unscrew and remove the footrest bolt. (1) The footrest can slide up or down in 1” increments. Remember Foot-plates need to keep at least a 2” clearance from the ground to overcome thresholds. -
Page 8: Folding And Opening The Wheelchair
6. FOLDING AND OPENING THE WHEELCHAIR To fold, flip up the foot-plates or remove the footrests all together (1) Pull up on the 2 handles, folding the cross-braces (2) To unfold, push down on the seat frame until the seat locks into place. (3) Put the footrests on and/or fold down the foot-plates... -
Page 9: Safety Precautions
Products carry a one year warranty against manufacturing defects, faulty materials and workmanship only. Any alterations, misuse, abuse, or accidental damage voids this warranty. CareCo reserves the right to replace or repair any part that has become defective. The warranty does not extend to consequential costs resulting from the fault or defect of the product: freight and travel costs, loss of earnings, or other expenses that one may incur.
