Theory of operation
Operating voltages
12
The P7700 Series probes are designed to probe high-frequency, low-voltage
circuits. Before probing a circuit, take into account the limits for the operating
voltages discussed in this section.
Input voltage
Operating voltage window
Input signal dynamic range
Offset voltage

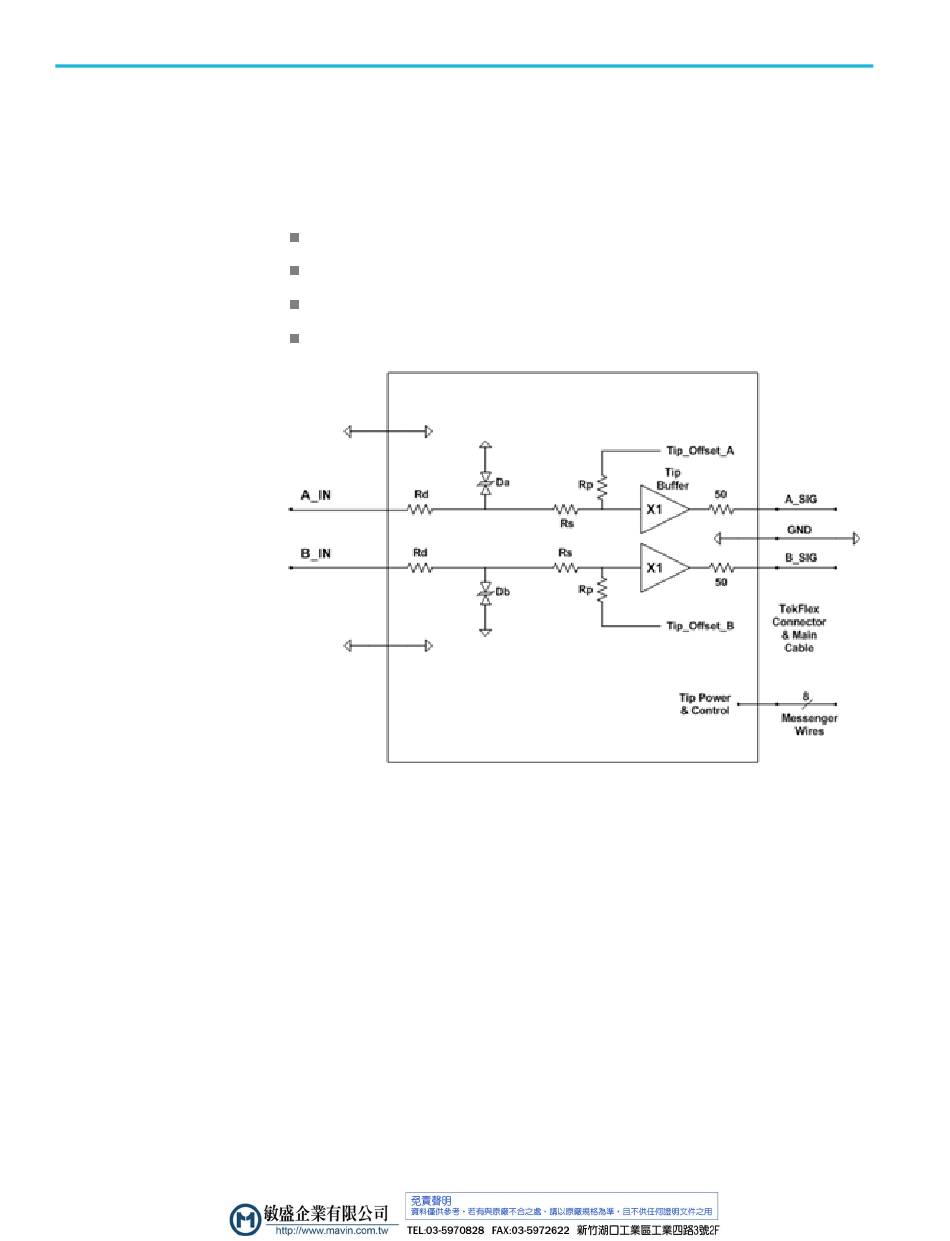

Figure 5: P7700 probe tip inputs
P7700 Series TriMode Probes Technical Reference
